102

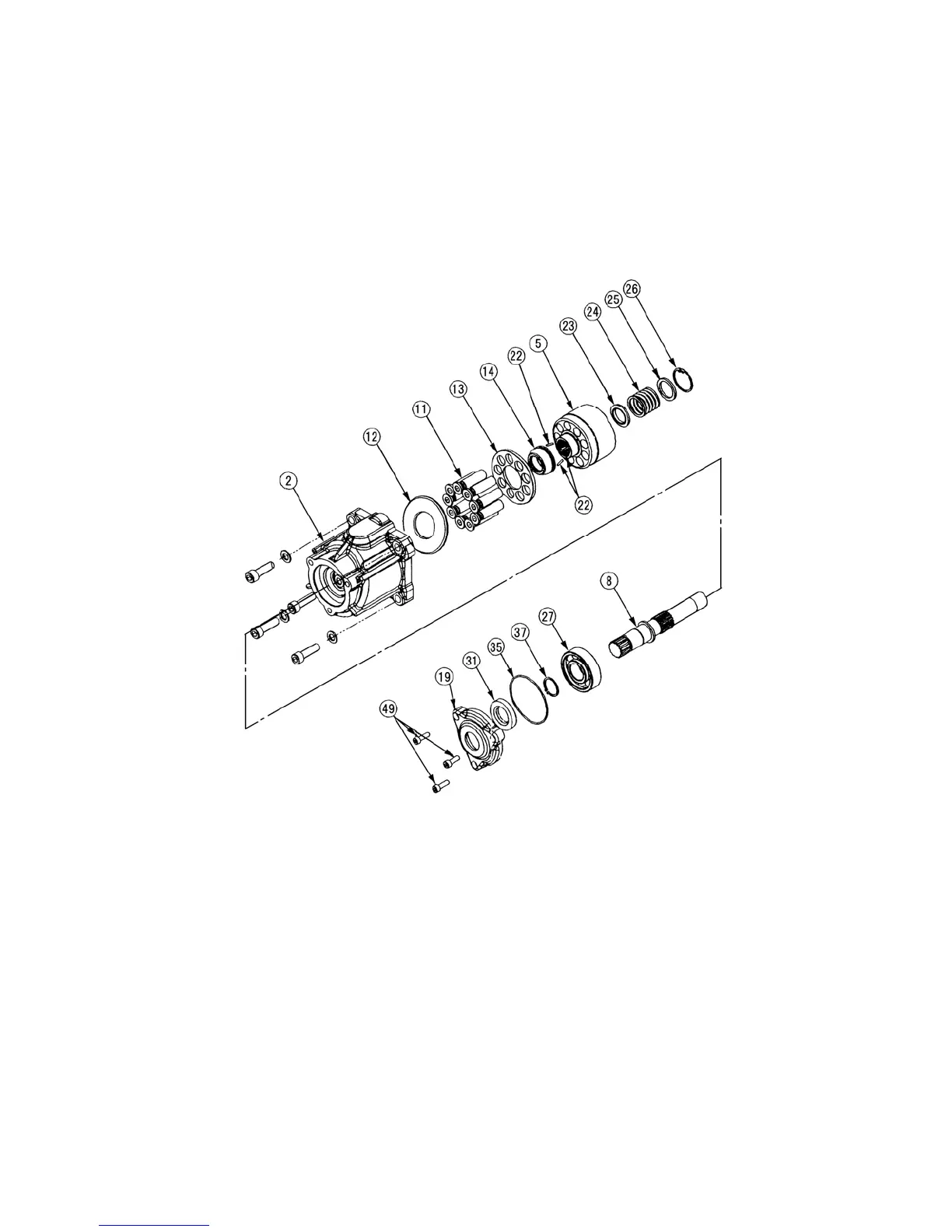

8. Install the motor shaft (8) assembly and cover assembly (19) on the case (2) and tighten the socket head bolts (49)
to 4.4～5.4 N･m｛0.45～0.55 kgf･m｝.
9. Install the thrust plate (12) and cylinder block assembly in the case (2).
NOTE：
Check the pins (22) are not remained in case (2).
390Y
