3) Reassembly
Reassemble units in the reverse order to disassembly taking
care for the following points.

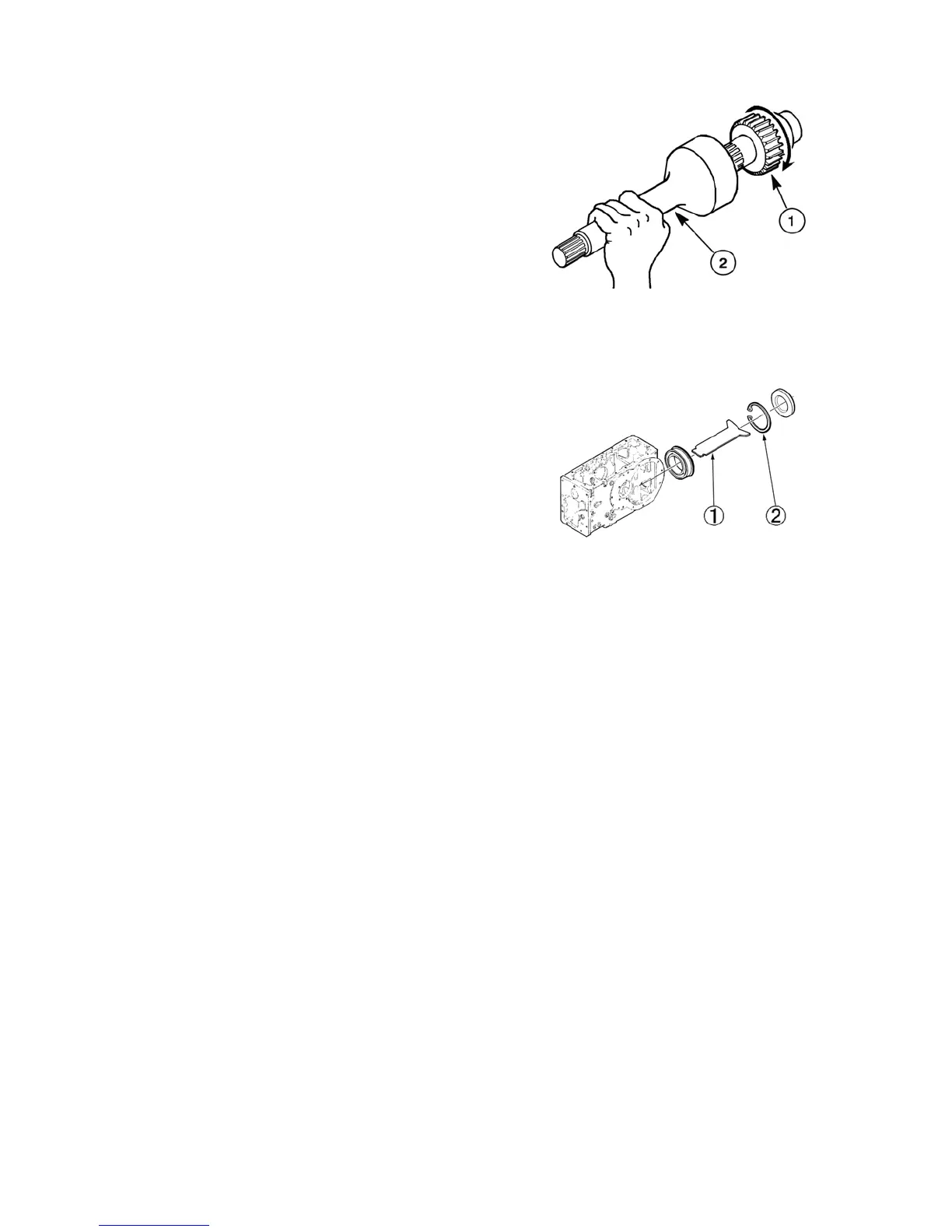

1. One way clutch (9x3 1speed PTO model only)
If the rear PTO countershaft, 1, is rotates
counterclockwise, as viewed from the rear, the assembly
is correct. If the rear PTO countershaft, 1, is unable to
rotate counterclockwise, as viewed from the rear when
hold the PTO counter shaft, 2, the assembly is incorrect.
The one-way bearing needs to be reversed.
2. Bearing support (9x3 1speed PTO model only)
Install the bearing support, 1, to horizontally with it hold
by rear snap ring, 2.
437-6AY
437-6BY
