201

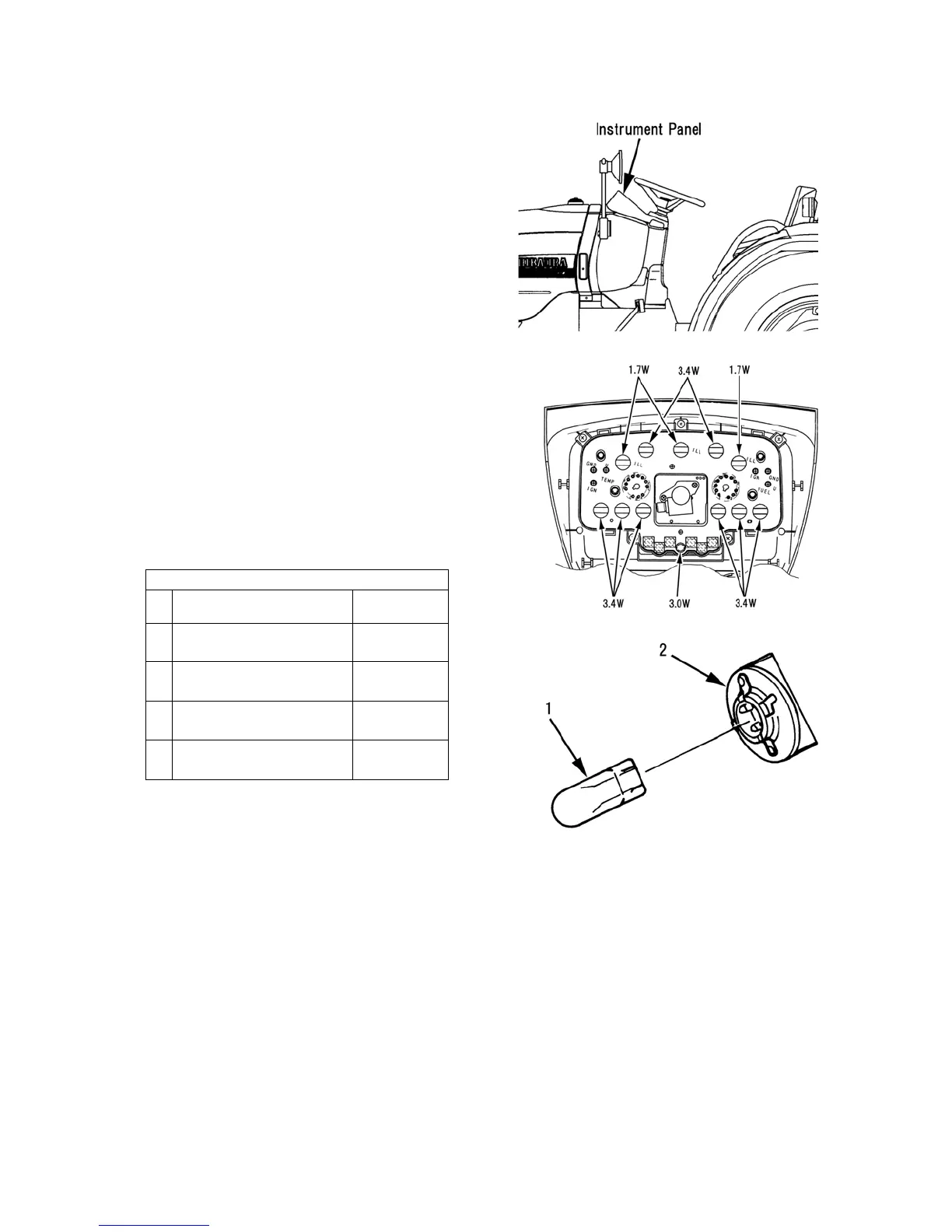

Instrument Panel Removal
1. Disconnect the negative battery cable
from the battery.
2. Remove the steering wheel.
3. Grasp the instrument panel and pull up
the instrument panel and disconnect the
three connecters and flexible shaft from
the instrument panel.
4. Remove the instrument panel.
NOTE:
Keep the grass face of the instrument panel
up after removal. This will prevent the
silicon oil in the fuel level gauge and
coolant temperature gauges from leaking out
causing the gauges to give a false indication
during operation.
Instrument Panel Light Replacement
1. From the back of the instrument panel,
rotate the bulb socket containing the
faulty bulb and pull the socket from the
instrument panel.
NOTE:
Illumination bulbs should not be
inter-changed with indicator/warning bulbs.
Instrument Panel Lighting
Designation
Bulb
Rating
1 Illumination 1.7 watts
2 Indicator 3.4 watts
3 Warning 3.4 watts
4 Indicator 3 watts
2. Grasp the faulty bulb, 1, and pull the
bulb from the socket, 2.
3. Push the replacement bulb into the
socket and install the socket into the
back of the instrument panel.
554Y
555Y
556Y
