Dynamic Configuration Rules
The codec G.711 with a sample rate of 20 ms (without encryption) is required both for the IP
trunking link and for the HFA terminal points. This requires an STMI2 module (2 DSPs on board
= 32 voice channels are supported).

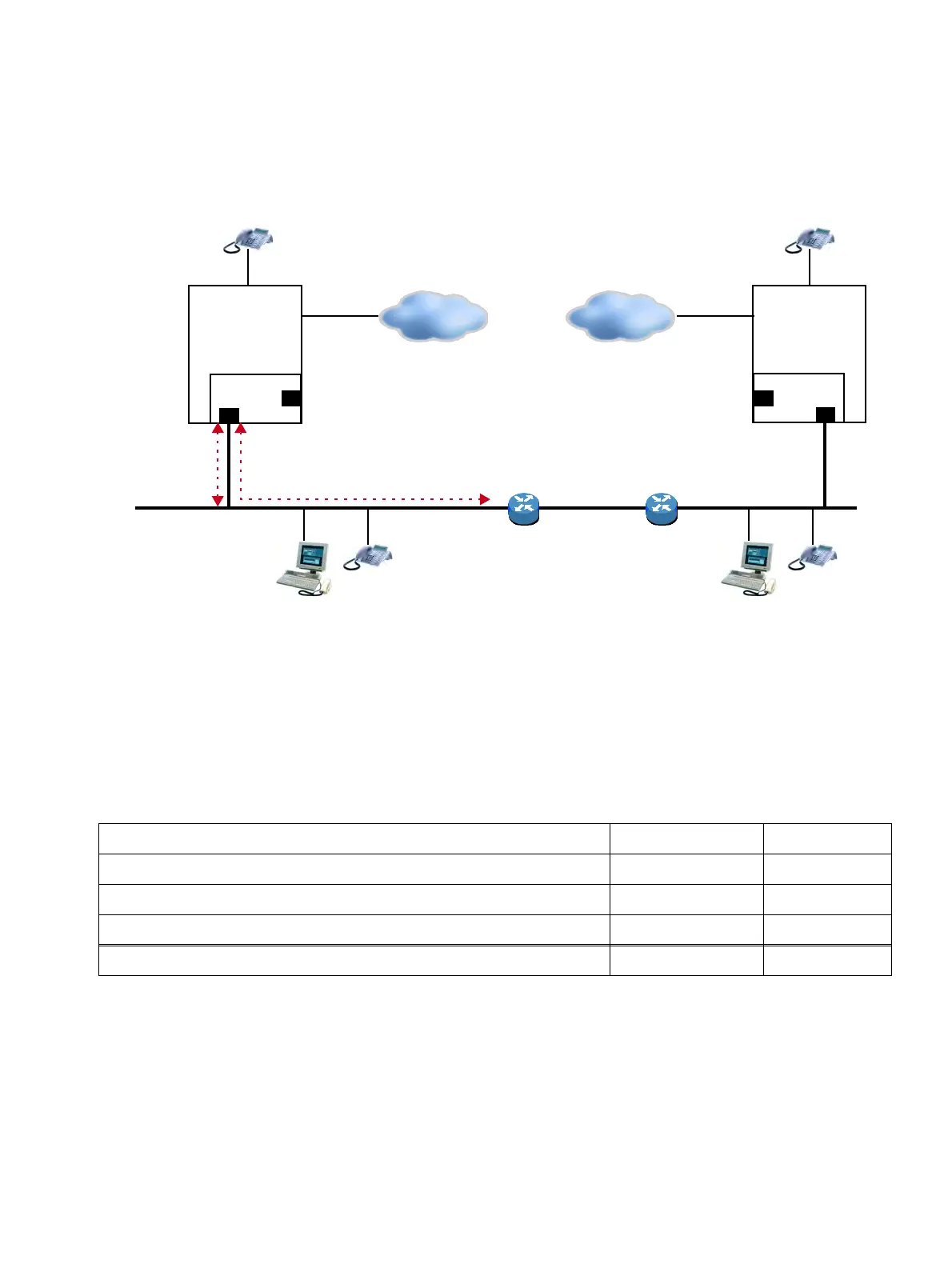

Figure 2-9 IP Trunking and HFA Clients
Calculation:
Thirty-one gateway channels via LAN 1 should be taken into account. If more than 16 channels
are required, the feature “Enhanced B Channels” must be activated. Firewall and encryption
are not possible in this example. The signaling load (16 PBX networking channels and 96 HFA
clients) must also be taken into account.
With a permissible maximum points total of 980, this scenario is feasible. However, this sample
calculation does not apply for HXGS/R3. This is because the static configuration rules only al-
low a maximum of 16 channels per board card.
Table 2-49 Calculation for IP Trunking and HFA Clients
Function Formula Points
Signaling: IP phones (without H.235) 96
· 0.68 65
Signaling: PBX networking channels (without H.235) 16
· 3.2 51
Gateway channels: payload (G.711/20ms) 31 · 11 341
Total 477
HiPath 3800
LAN 2
LAN 1
Head Office
ISDN
HiPath 3800
LAN 1
LAN 2
ISDN
Branch Office
Intranet Intranet
(15 + 16)
31 Gateway
Channels
Head Office
32 PBX Networking
Channels
96 HFA Clients
