10.1.2.9 Ports on the Underside of the Telephone for the CorNet-IP Model
This section shows the ports on the underside of OpenStage CorNet IP (HFA) telephones.
These ports are explained in Section 10.1.2.11, “OpenStage Terminals - Description of Ports”.
OpenStage 15 for CorNet IP

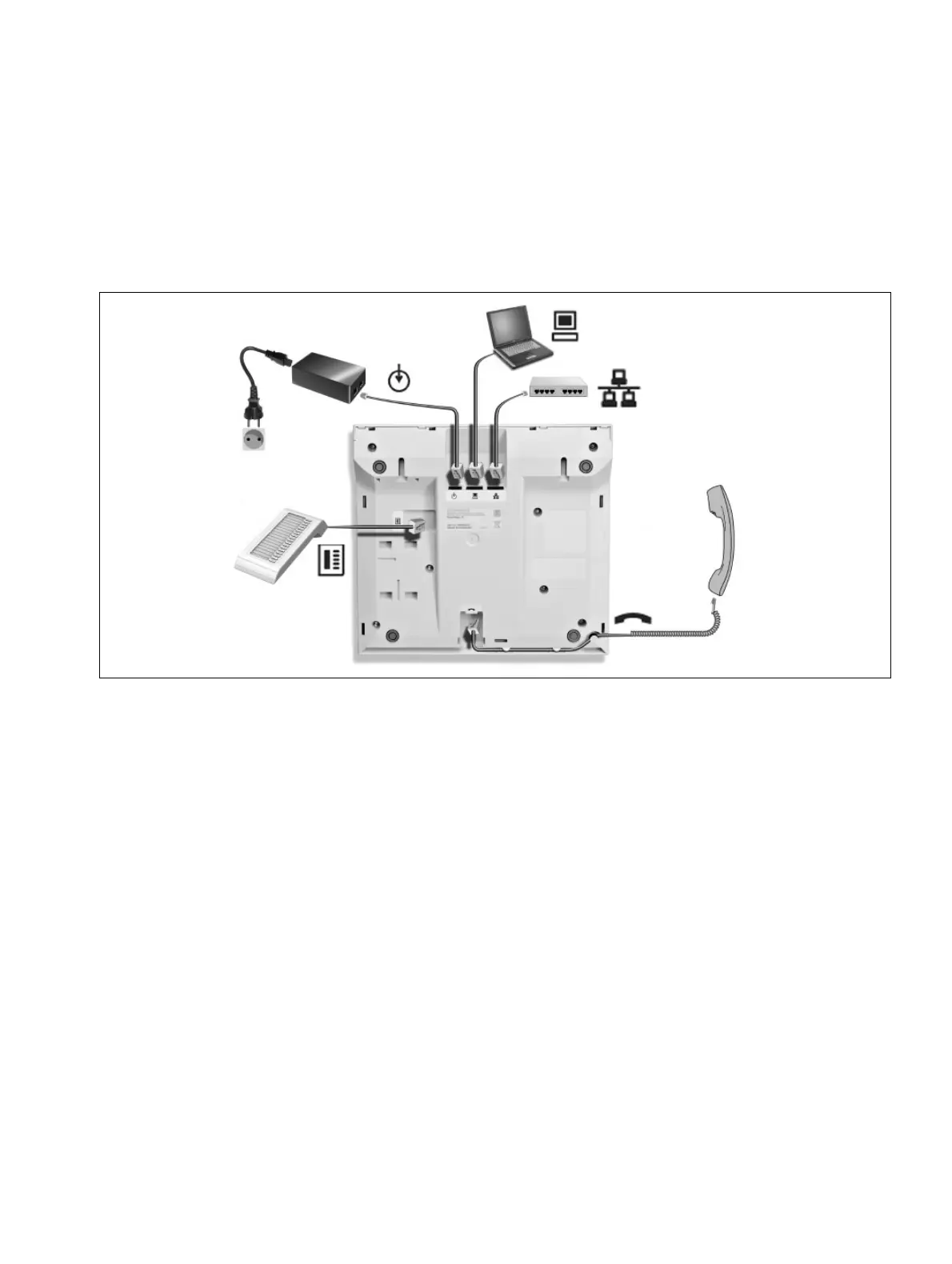

Figure 10-8 OpenStage 15 (CorNet IP) - Underside of the Telephone
