optiPoint 500
10.5.3.1 optiPoint analog adapter
The optiPoint analog adapter allows an analog device (such as, telephone (DTMF only), group
3 fax, modem, cordless telephone) to be connected to an optiPoint 500 telephone.
The analog device connected can send and receive calls on the interface to the system regard-
less of the optiPoint telephone’s connection status, as long as a B channel is available.
The adapter must always have a local power supply for operating the connected analog device.
T/R interface properties
● Supply current: 30 mA
● Busy signal when both B channels are busy
● Ring sequence: 2.2
● Supports only DTMF with Flash
● No ground signaling allowed
● Does not support: VoiceMail server with T/R interface, message waiting lamp, dictating
equipment, speaker, announcement device (such as start/stop).

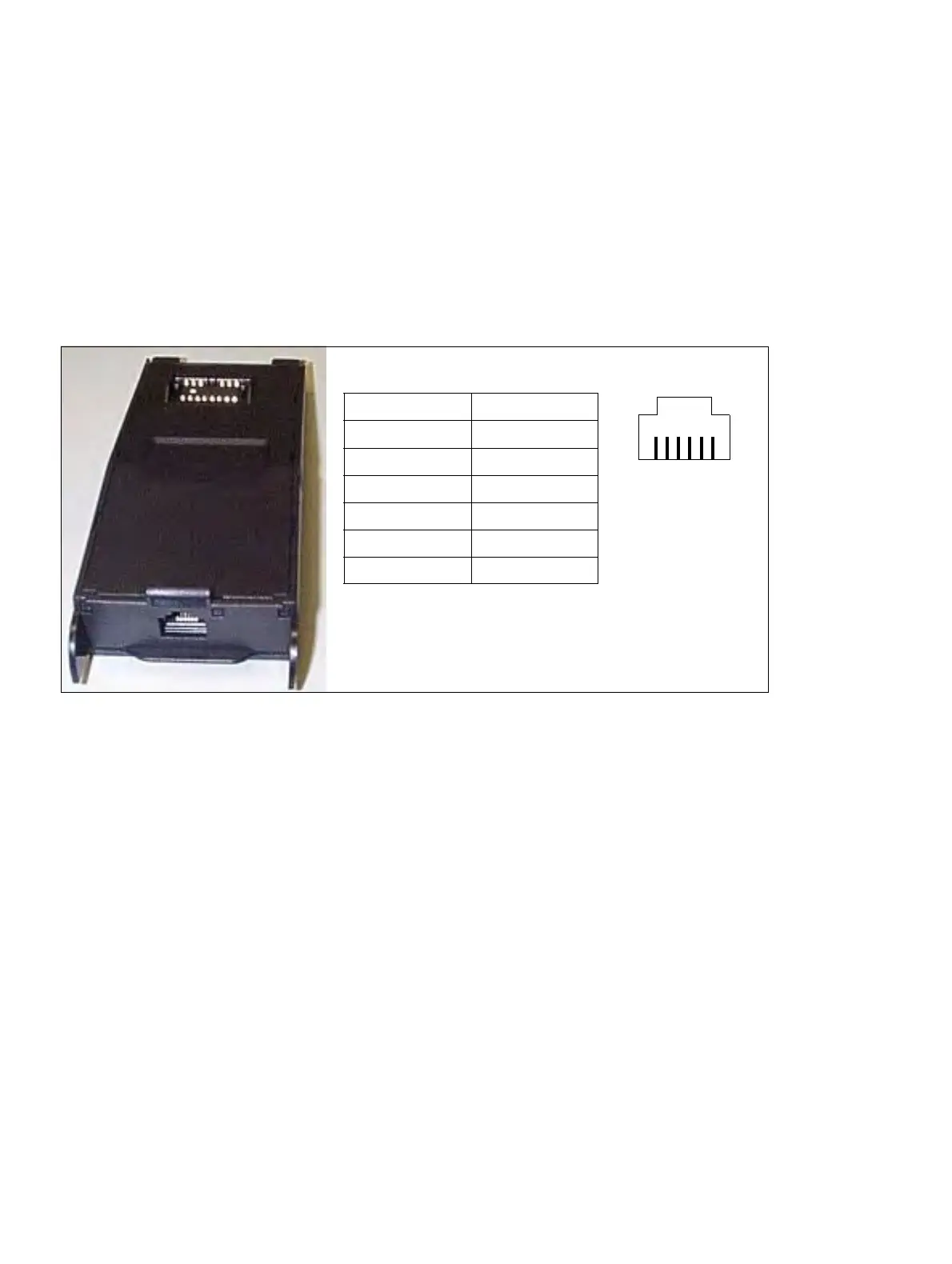

Figure 10-45 optiPoint analog adapter
MW6 (RJ11) socket assignments:
Pin Signal
1Free
2Free
3T (Tip)
4 R (Ring)
5Free
6Free
