HiPath AP 1120
10.10 HiPath AP 1120
The terminal adapter HiPath AP 1120 connects up to two analog telephones and/or fax ma-
chines with a corporate network or a network provided by a carrier. HiPath 3000/5000 supports
the HiPath AP1120 variants H.323 and SIP.
The device is capable of dynamically recognizing the most common IP telephony codecs and
fax protocols, including T.38.
Connections
● Ethernet connections:
– 1 x RJ45: 10/100 BaseT Ethernet access
– 1 x RJ45: 10/100 BaseT Ethernet access, power supply over MDI, IEEE 802.3af (Pow-
er over LAN)
● Analog connections:
– 2 x RJ11: analog telephone, fax
● Power supply:
– External 24 VDC/12 W local power supply
No local power supply is required if power is provided via Ethernet access (Power over
LAN).

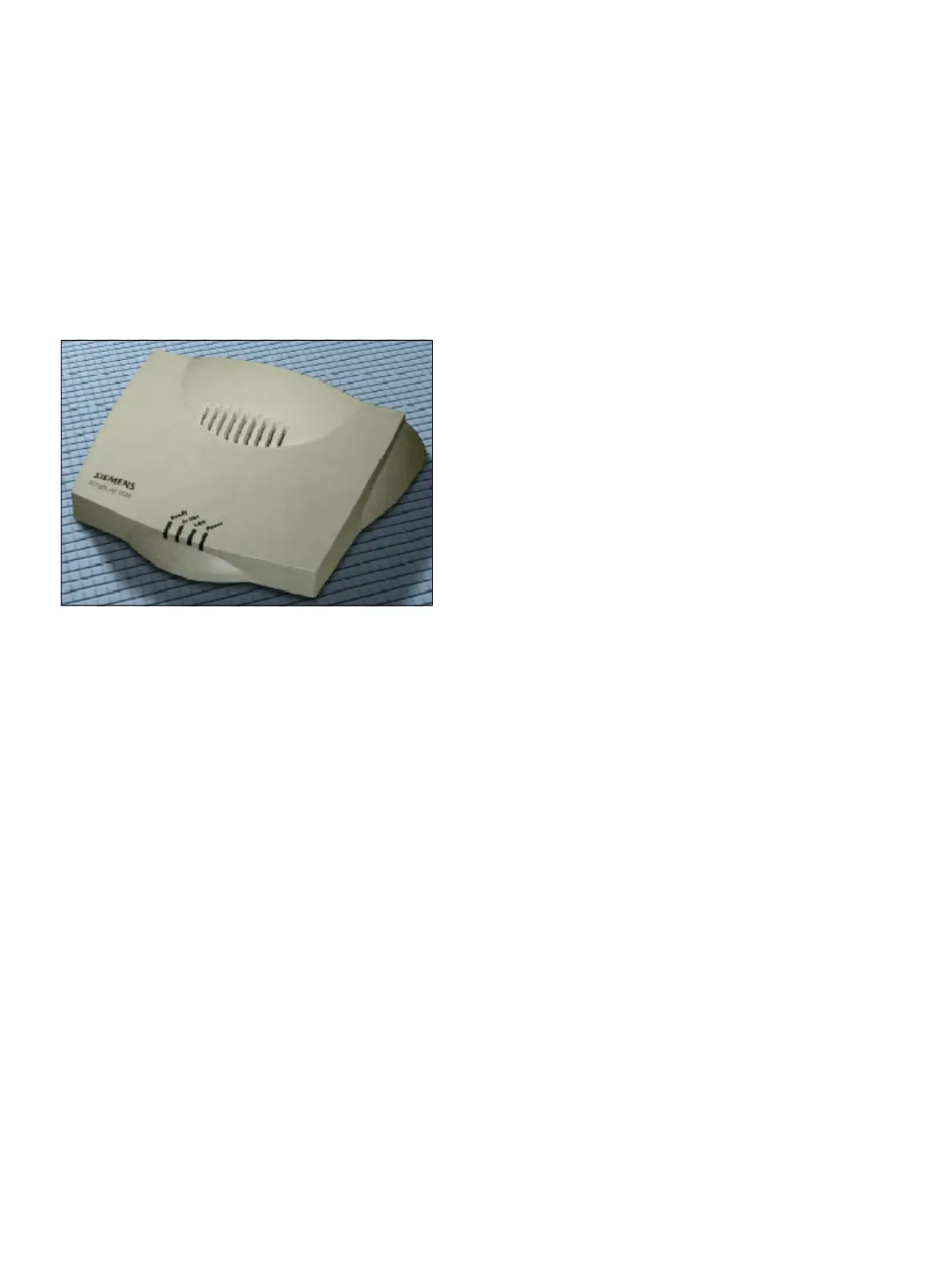

Figure 10-55 HiPath AP 1120
