10.1.3 OpenStage Add-On Devices
10.1.3.1 OpenStage Key Module 15
The “OpenStage Key Module 15” can be connected to OpenStage 15 CorNet-IP (HFA), Open-
stage 15 T, OpenStage 30 T and OpenStage 40 telephones.

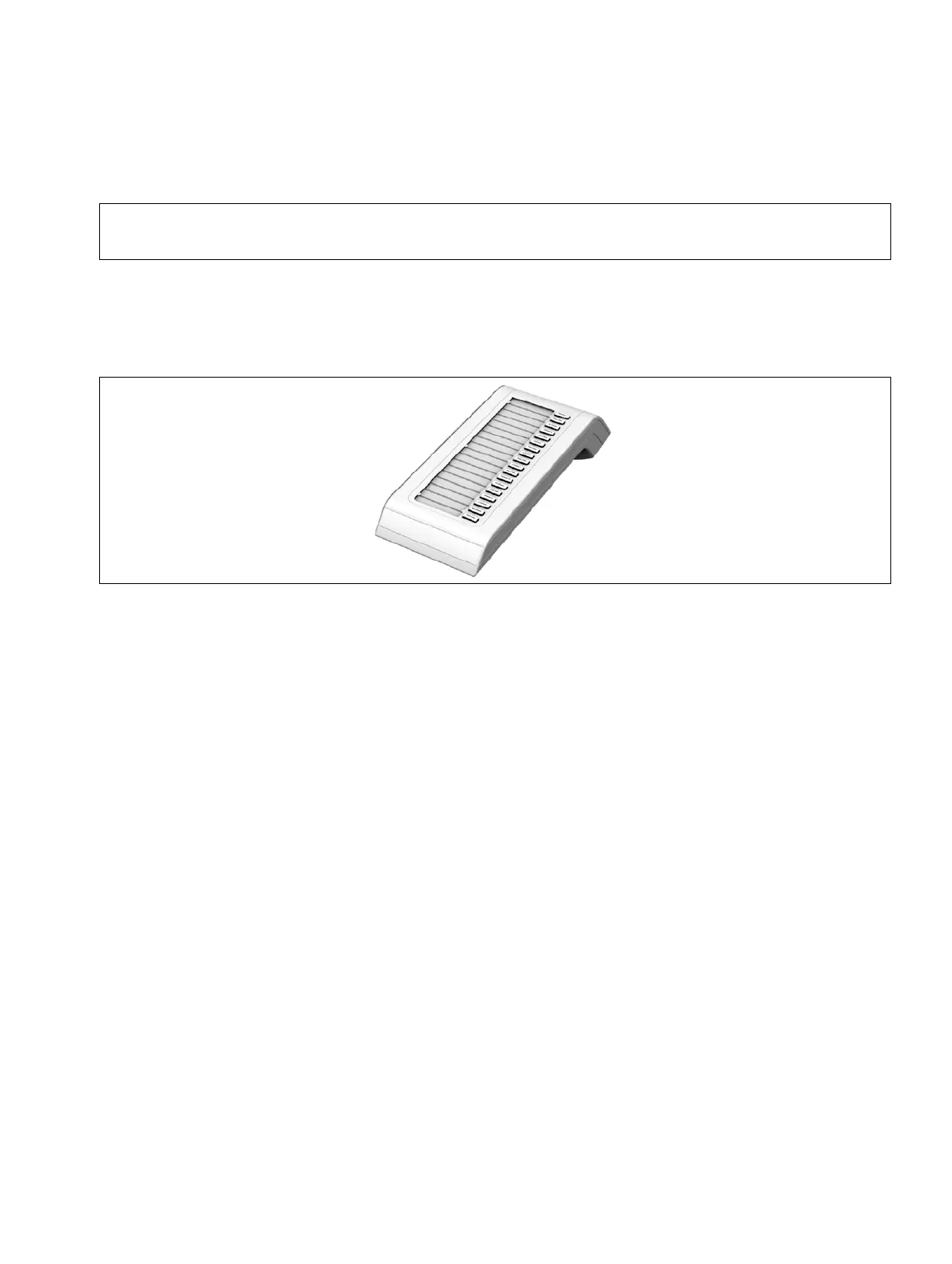

Figure 10-15 OpenStage Key Module 15
The OpenStage Key Module 15 is an add-on device that should be mounted on the side of the
telephone; it provides an additional 18 programmable function keys. Each key can be pro-
grammed either as a function key or as a DSS key. Keys are labeled with paper labels.
A maximum of one OpenStage Key Module 15 can be connected to the telephone.
7
Caution
Always disconnect the line cord before connecting add-on devices to the telephone.
