Siemens HiPath 3000 Series - Ports on the Bottom of the Telephone

wclient.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
10-91
Nur für den internen Gebrauch Workpoint Clients
optiPoint 500
These indications show that the telephone is starting up and performing a self-test. Download-
ing has finished and the telephone is ready for operation when you see the date and time on
the display.
10.5.1.8 Ports on the Bottom of the Telephone

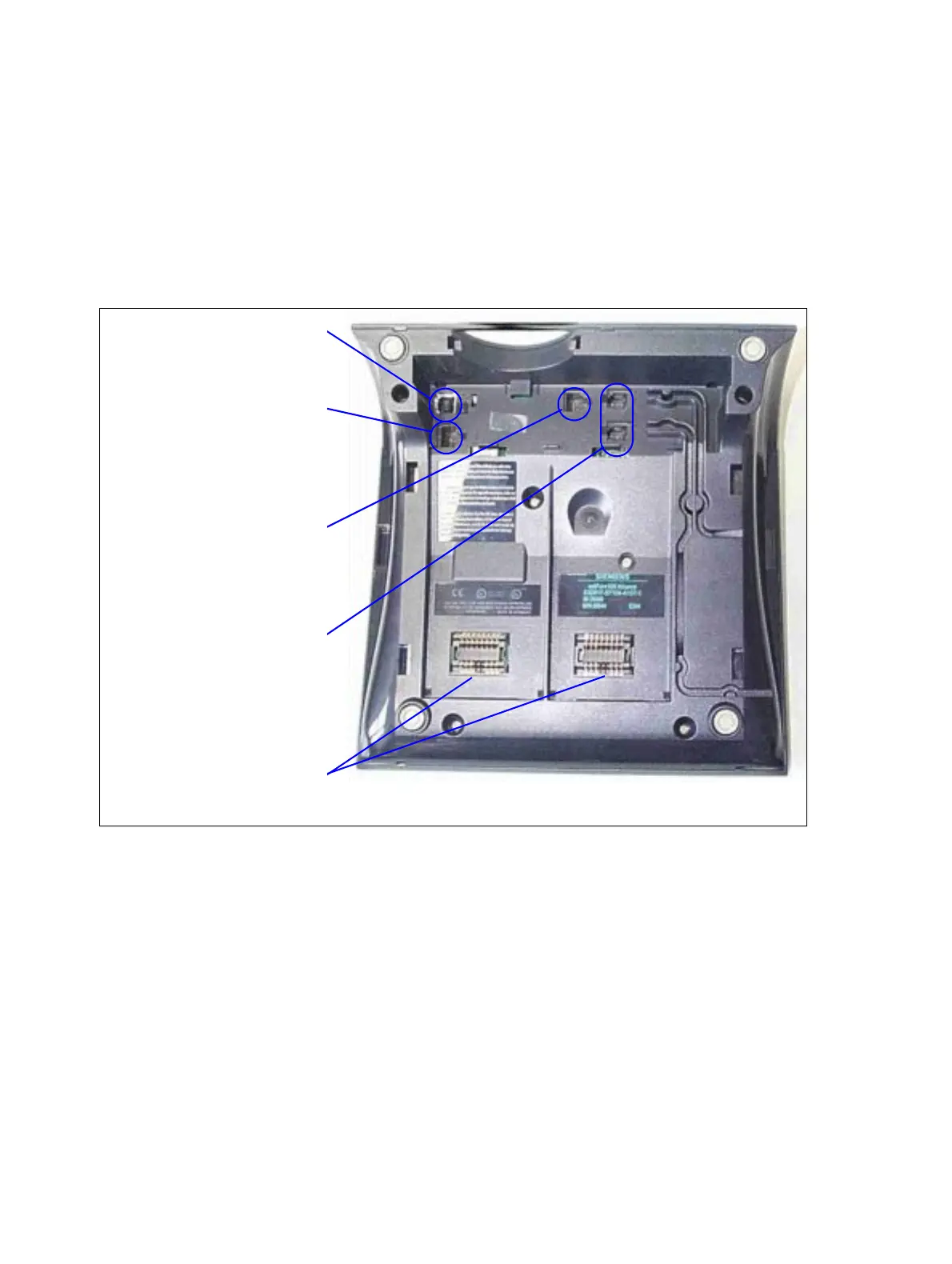

Figure 10-41 optiPoint 500 Connection Options
USB interface
MW8 (RJ45) connection
jack for optiPoint key mo-
dule, optiPoint BLF
MW8 (RJ45) connection
jack for HiPath 3000
MW4 (RJ8) connection
jacks:
Upper = headset equip-
ment
Lower = handset
Option bays
(see Figure 10
-
44)
