3.3.48 8SLAR
Introduction
The 8SLAR (Subscriber Line Analog Rack) board provides eight T/R interfaces for connecting
analog telephones and supplementary equipment (such as group 3 fax machines and TFE
adapters) in HiPath 3500 and HiPath 3300 (19-inch housing).
Interfaces
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

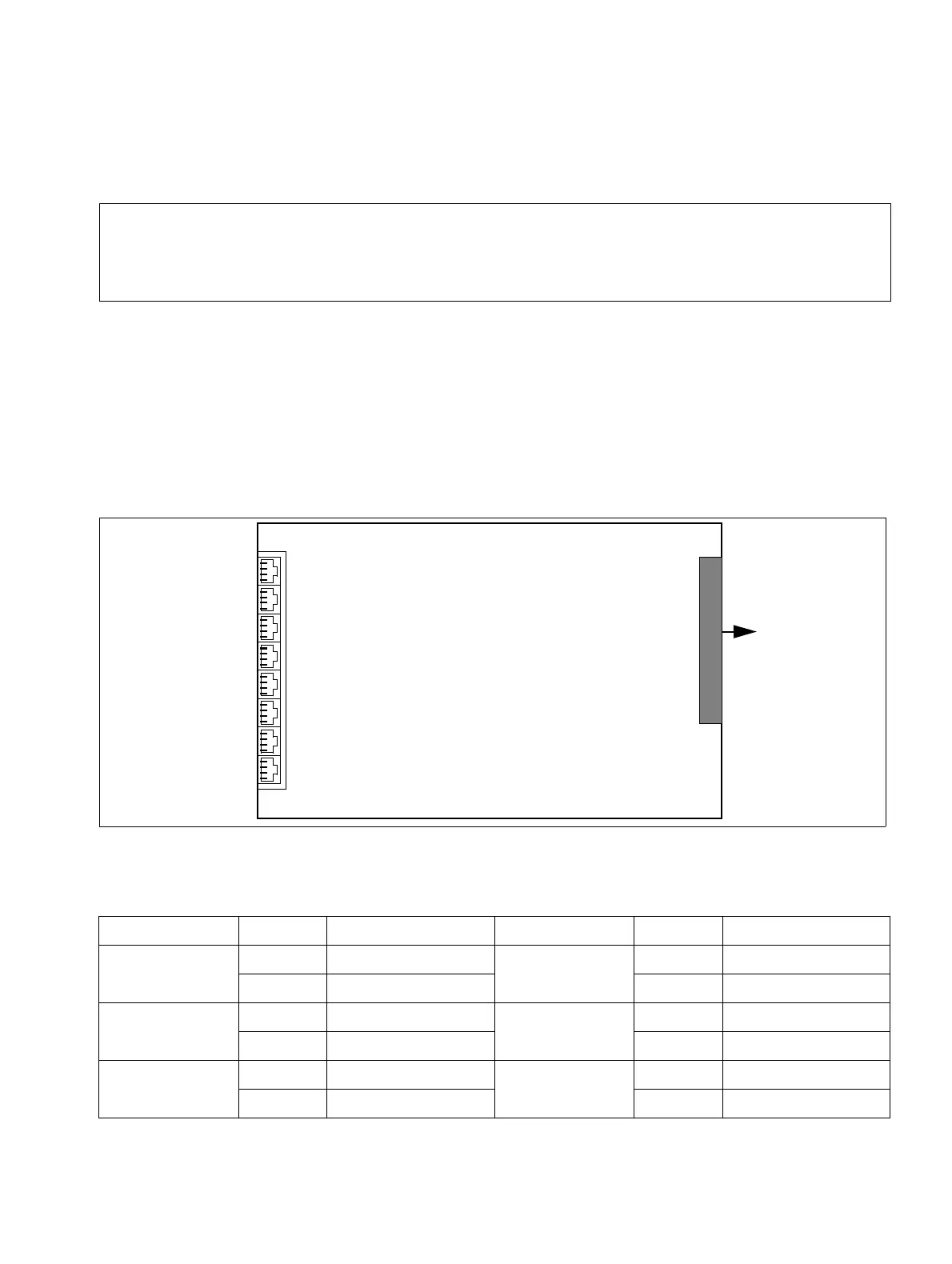

Figure 3-124 8SLAR Interfaces (S30810-K2925-Z)
Table 3-172 8SLAR Contact Assignments
RJ45 jack X2, Pin T/R ports 1-4 MW8 jack X2, Pin T/R ports 5-8
1 14 a 1 5 54 a 5
15 b 1 55 b 5
2 24 a 2 6 64 a 6
25 b 2 65 b 6
3 34 a 3 7 74 a 7
35 b 3 75 b 7
T/R ports
1–8
(4-pin MW8
jacks)
X1
50
2
to CUPR/
CUCR
X2
11
88
Port 1
Port 8
