Boards for HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
3-378 HiPath 3000/5000 V9, Service documentation
boards.fm
Options
3.4.10 OPAL and OPALR
Introduction
The adapter cable for connecting the central board to the first optional board comes in two ver-
sions:
● OPAL (Options Adapter Cable Long) C39195-A7001-B130 (Figure 3-140 - for use in Hi-
Path 3550 and HiPath 3350 (wall housing).
● OPALR (Options Adapter Cable Long Rack) C39195-A7001-B142 (Figure 3-141) - for use
in HiPath 3500 and HiPath 3300 (19-inch housing).
OPAL interfaces

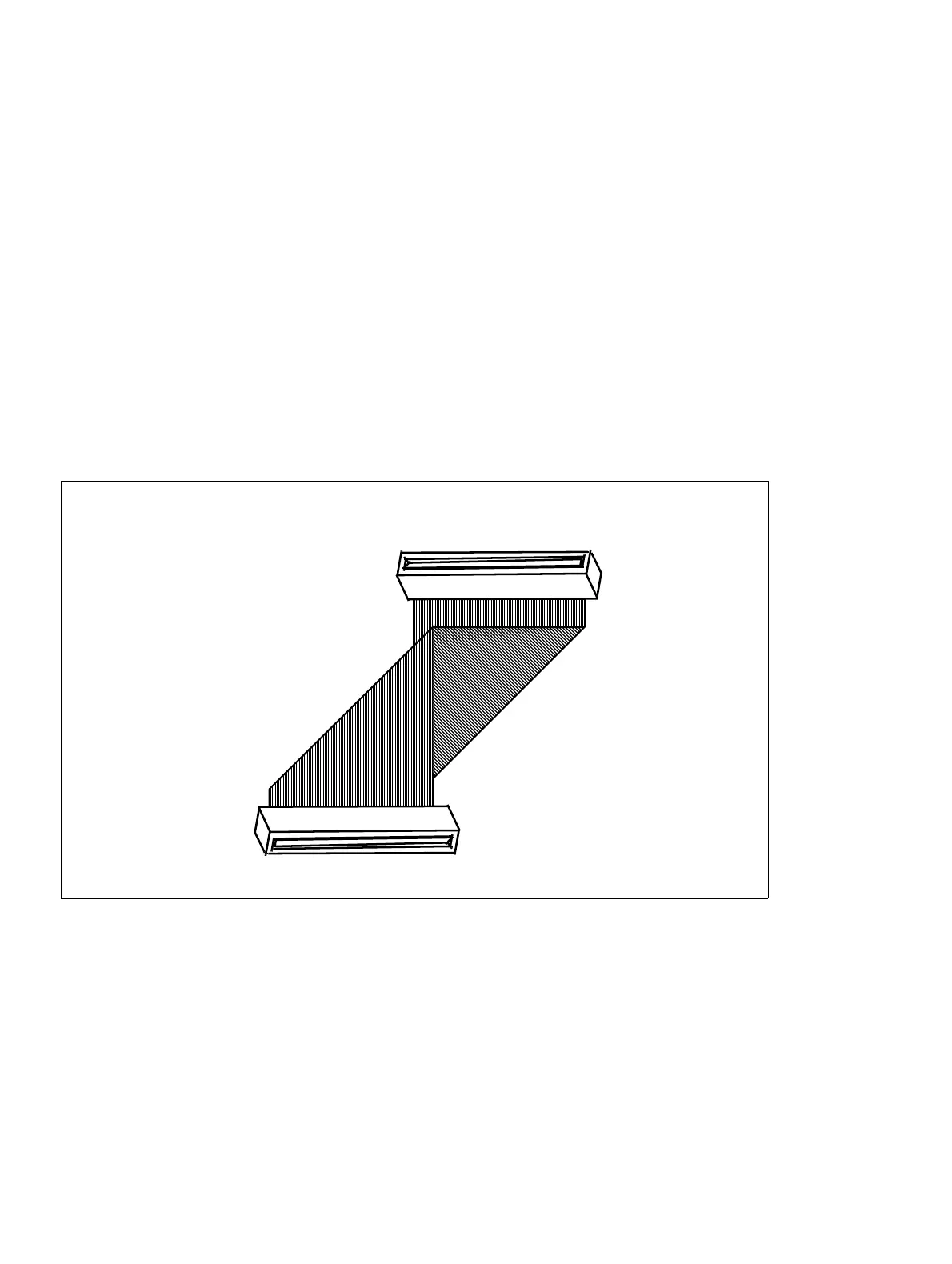

Figure 3-140 OPAL (C39195-A7001-B130)
CBCC/CBCP interface
Option board con-
nection
Ribbon cable
folded and secured
