10.1.2.10 Ports on the Underside of the Telephone for the TDM Model
This section shows the ports on the underside of OpenStage TDM telephones. These ports are
explained in Section 10.1.2.11, “OpenStage Terminals - Description of Ports”.
OpenStage 10 T, OpenStage 20 T

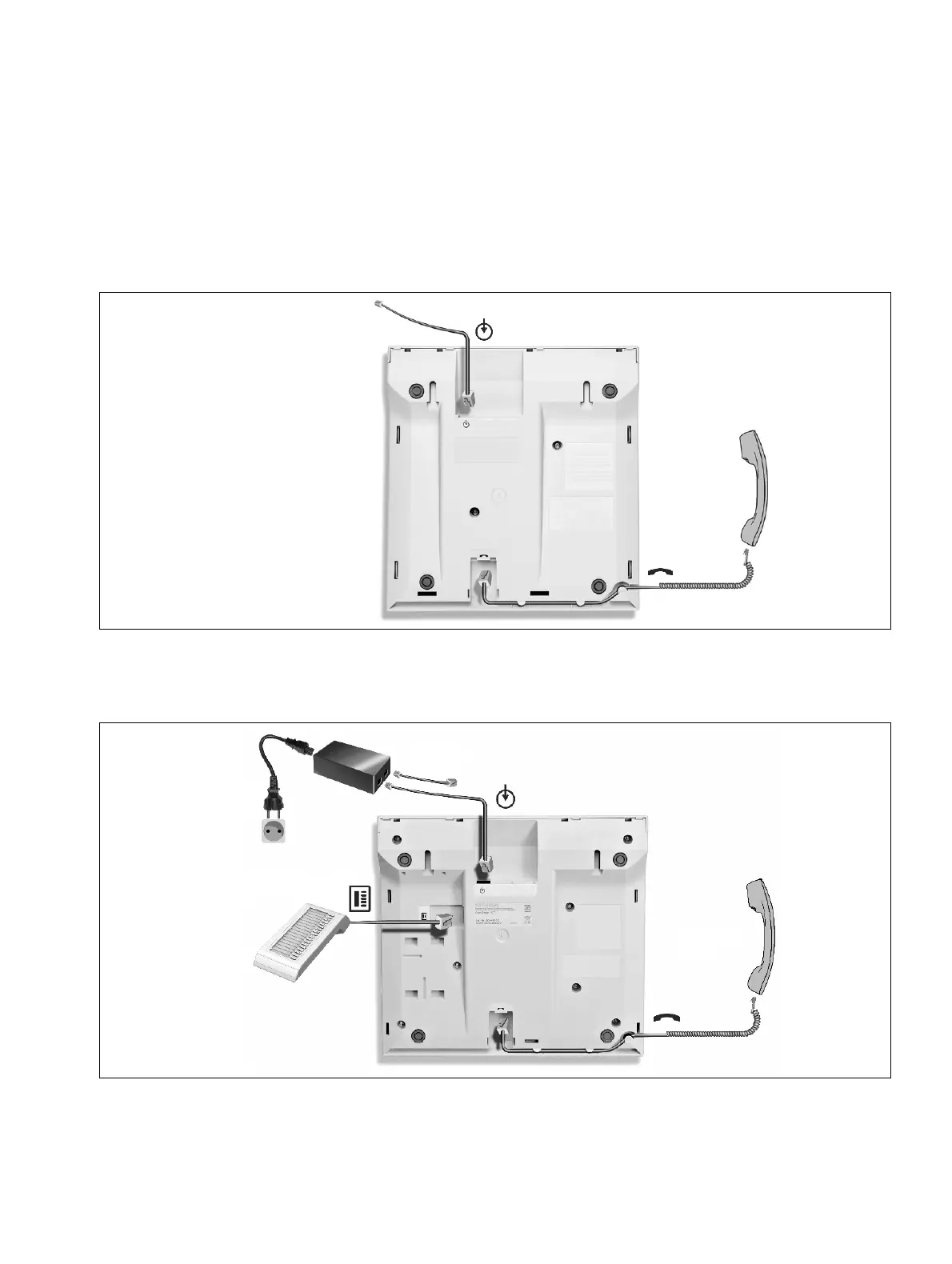

Figure 10-11 OpenStage 10 T, OpenStage 20 T - Underside of the Telephone
OpenStage 15 T
Figure 10-12 OpenStage 15 T - Underside of the Telephone
