Workpoint Clients Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

10-24 HiPath 3000/5000 V9, Service documentation

wclient.fm

OpenStage Product Family

OpenStage 20, OpenStage 40 for CorNet-IP

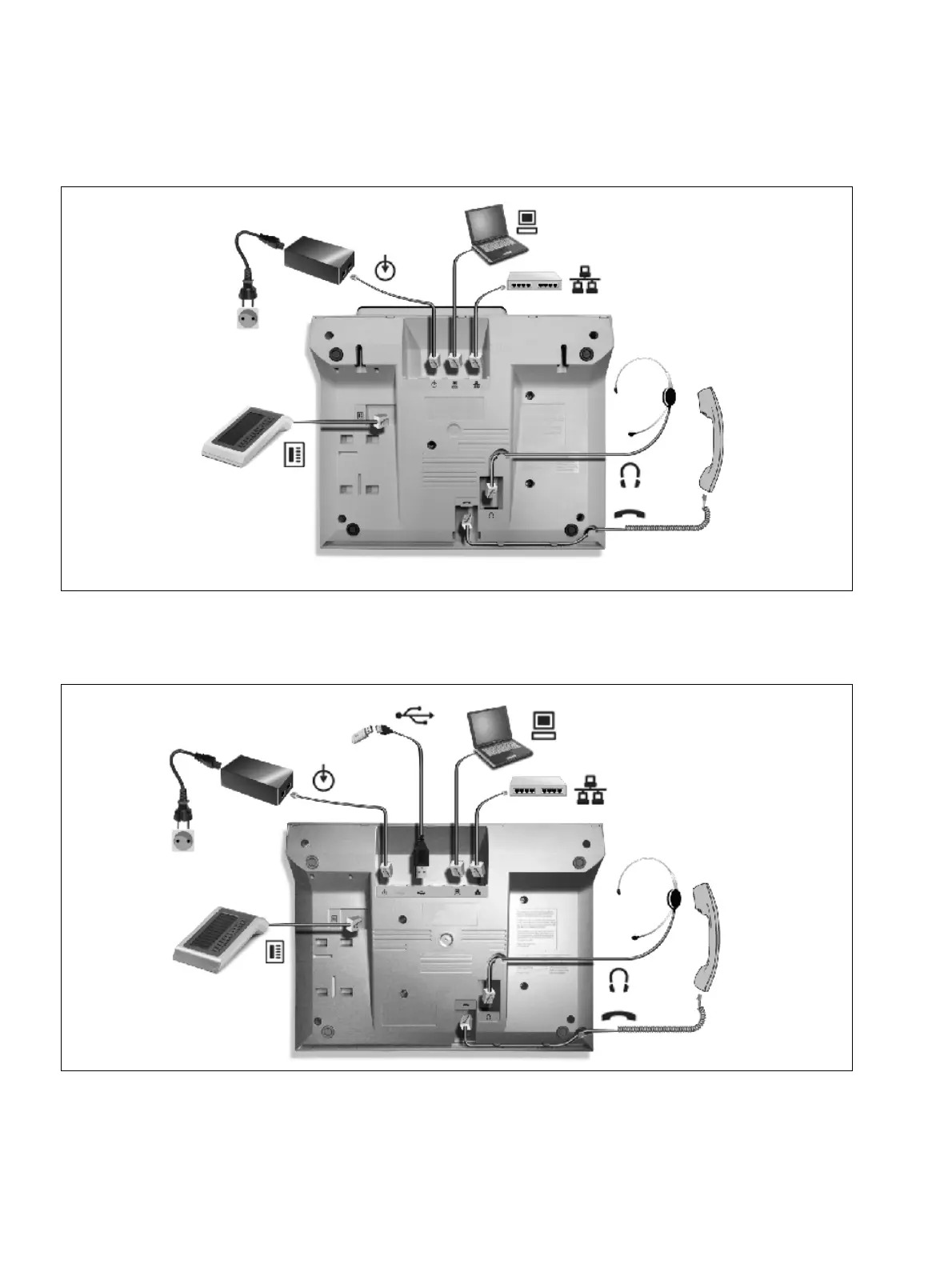

Figure 10-9 OpenStage 20, OpenStage 40 (CorNet IP) - Underside of the Telephone

OpenStage 60, OpenStage 80 for CorNet-IP

Figure 10-10 OpenStage 60, OpenStage 80 (CorNet IP) - Underside of the Telephone

*) not available in OpenStage 20
