2.1.4.3 Design and Dimensions of HiPath 3350
Design
The housing intended for wall mounting (Figure 2-3)HiPath 3350 contains one shelf with three
slot levels. The slot levels (shown in Figure 4-61), numbered in ascending order from the at-
tachment side, have the following assignments:
● Slot level 1: peripheral boards (two slots)
● Slot level 2: CBCC control board only.
● Slot level 3: optional boards (up to 5 modules)
The power supply is on the rear panel of the subrack.
The HiPath 3350 does not need an external main distribution frame. The connection cables to
the peripherals (telephones, trunk connections etc.) are directly connected to the boards.
Dimensions
>
Except for the CBCC board, the Octopus F100 communication system is identical in
structure to HiPath 3350. The part number of this CBCC is: S30810-K2935-T401.

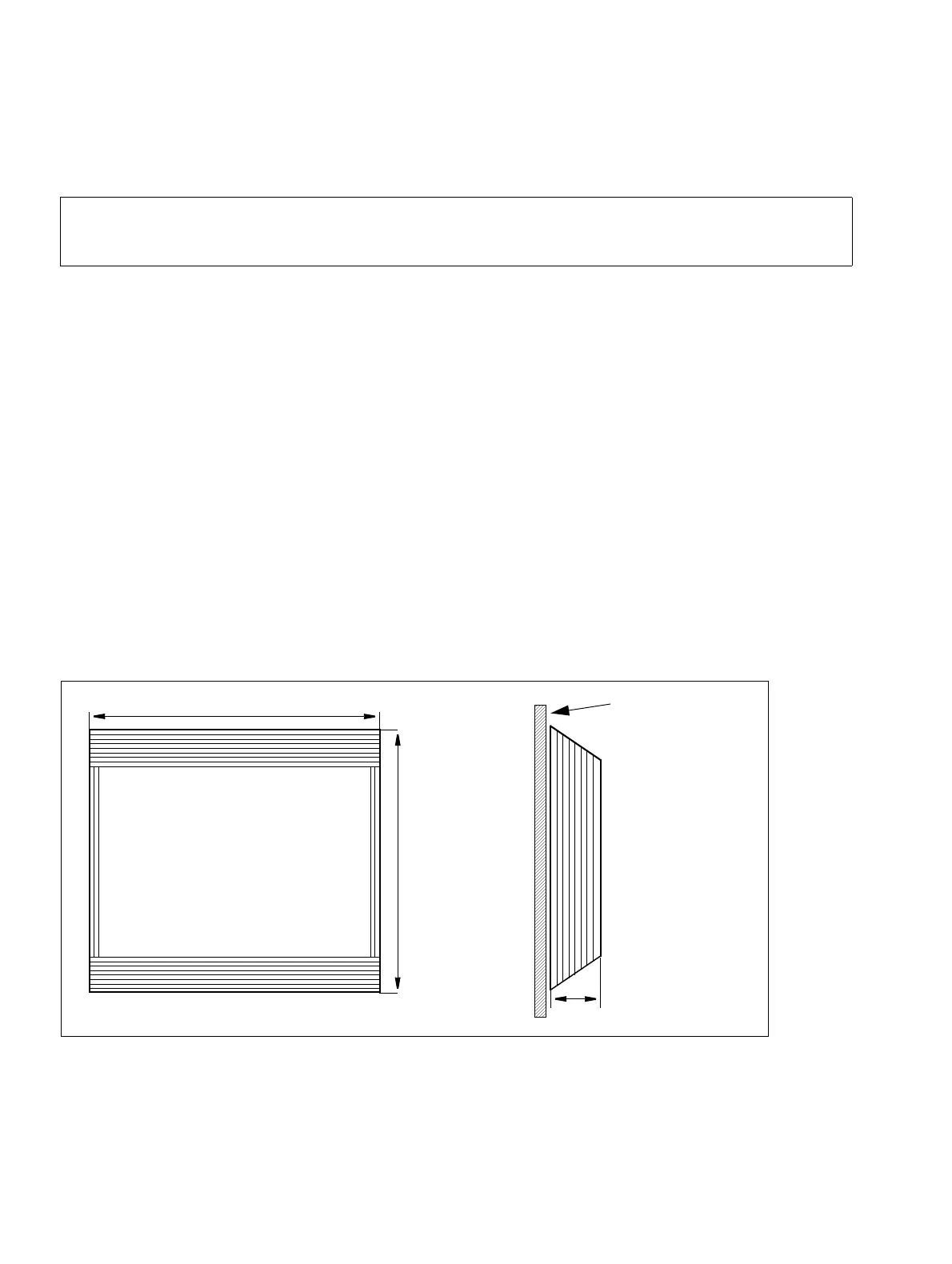

Figure 2-3 HiPath 3350 Dimensions
460 mm
128 mm
450 mm
Mounting sur-
face
