OpenStage Product Family
Variants
● AC adapter, Euro: C39280-Z4-C510
● AC adapter, UK: C39280-Z4-C512
● AC adapter, 110 V USA: C39280-Z4-C511
Technical specifications
10.1.5.2 OpenStage PhoneAdapter
Technical specifications AC adapter, Euro:
C39280-Z4-C510
AC adapter, UK:
C39280-Z4-C512
AC adapter, 110 V
USA:
C39280-Z4-C511
Line voltage 230 Vac 230 Vac 120 VAC
Line frequency 50 Hz 50 Hz 60 Hz
Output voltage max. 43 VDC,
min. 30 VDC
max. 43 VDC,
min. 30 VDC
max. 43 VDC,
min. 30 VDC
Output current 480 mA 480 mA 480 mA

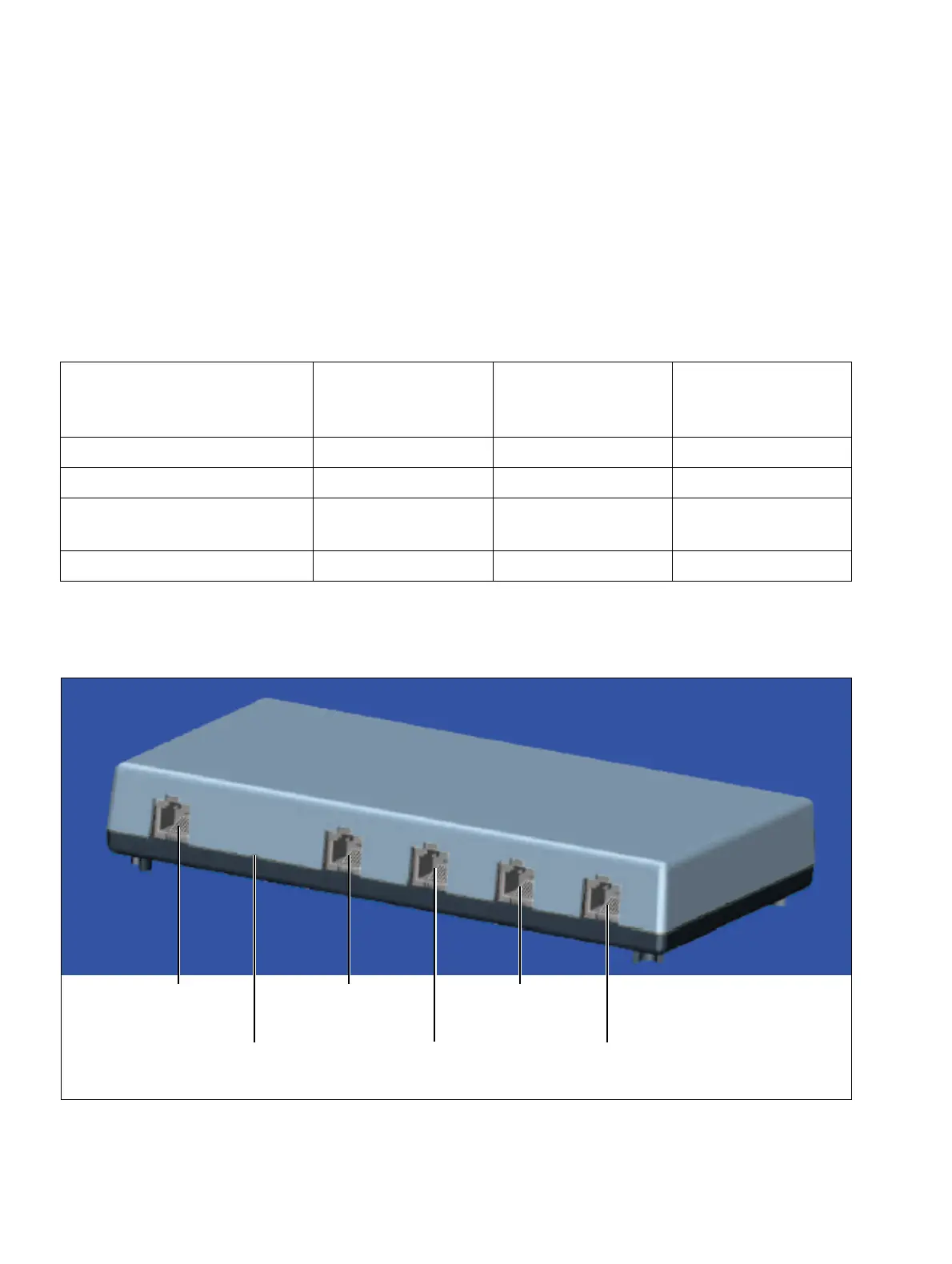

Figure 10-20 OpenStage PhoneAdapter
Switch
analog/U
P0/E
slave
Output
U
P0/E
slave
Output
U
P0/E
master
Input
U
P0/E
Power supply
Output
Analog
