13.10 Administration & Fault Management
13.10.1 Overview
HiPath 3000/5000 with a LIM or a HG 1500 board can be administered centrally over a LAN
connection from one or more PCs using SNMP. The following functionalities can be implement-
ed:
● Administration and fault management of a system (SNMP)
● APS update (TFP)
● CDB backup on TFTP server
● Network management

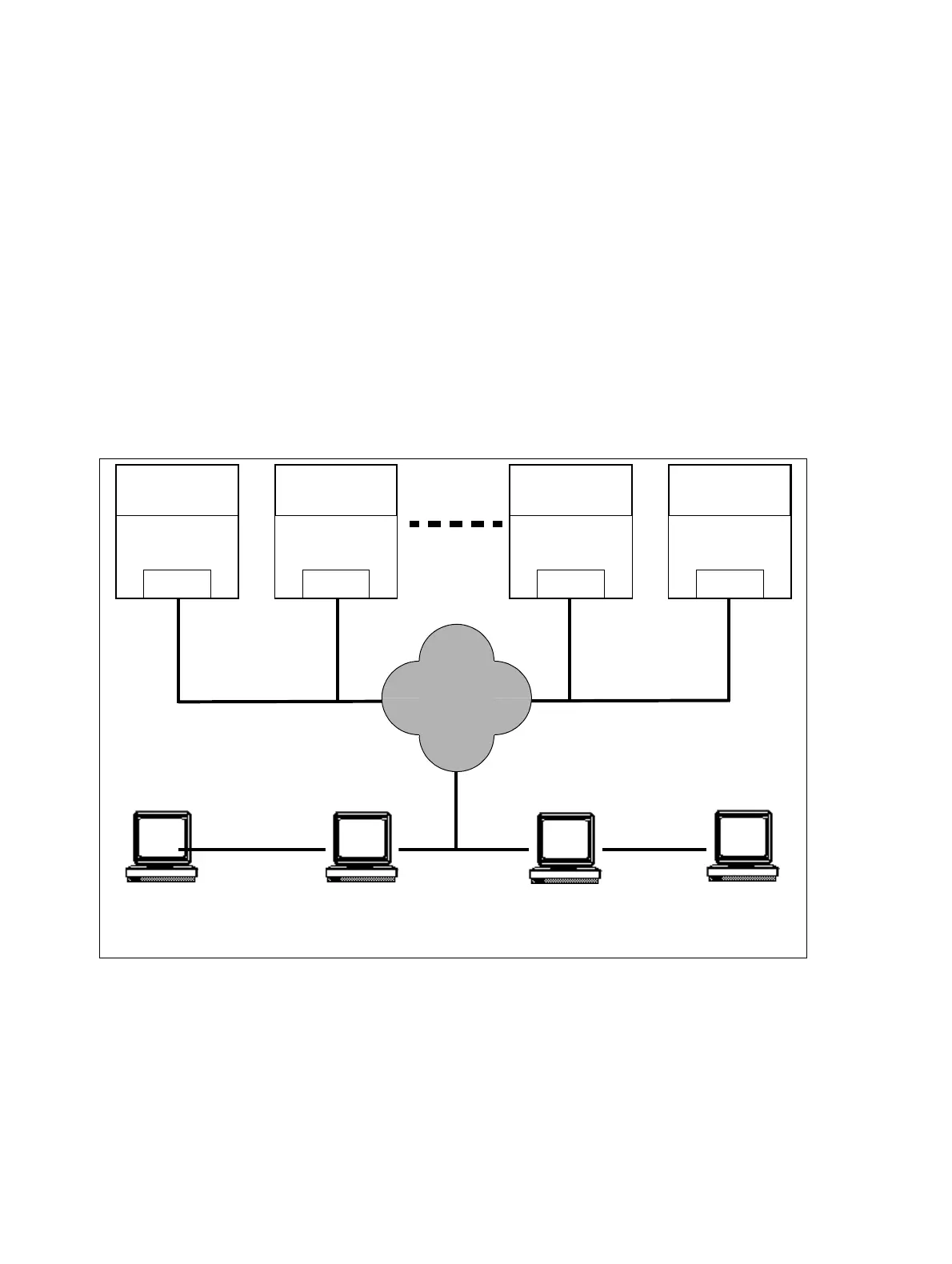

Figure 13-9 HiPath 3000/5000 - Administration over LAN
e.g. PC with
HiPath 3000/5000
Manager E
SNMP
HiPath 3000/
5000
Central Board
LIM
Client
LAN
e.g. PC with
Network Management
e.g. PC with
Network Management
e.g. PC with
HiPath 3000/5000
Manager E
HiPath 3000/
5000
Central Board
LIM
HiPath 3000/
5000
Central Board
LIM
HiPath 3000/
5000
Central Board
LIM
