inst_h3.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

4-55

Nur für den internen Gebrauch Installing HiPath 3000

Installing HiPath 3800

4.1.6.2 Expansion Cabinet Backplane

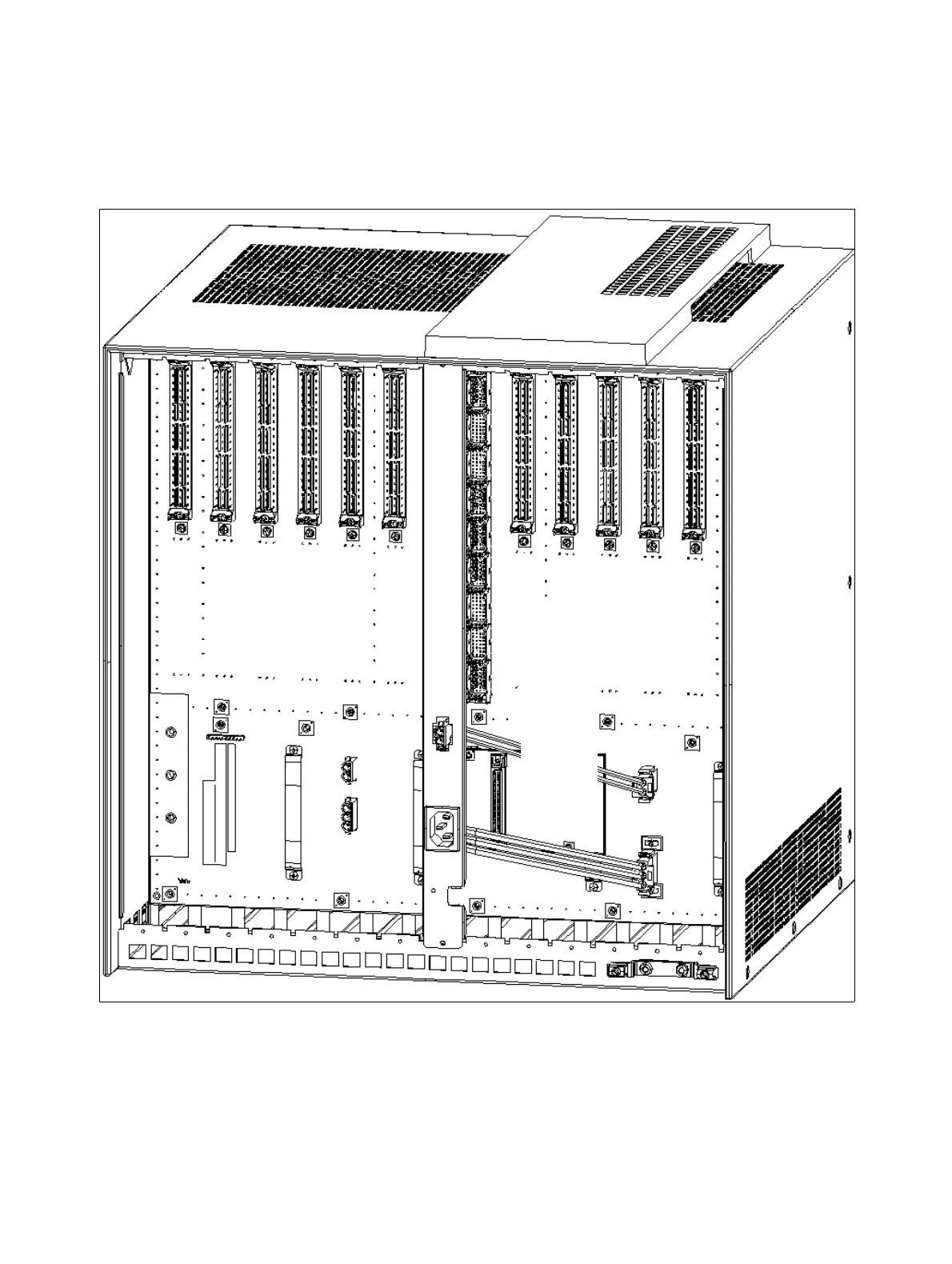

Figure 4-30 HiPath 3800 - Expansion Cabinet Backplane (S30804-Q5393-X)

13 SIVAPAC connectors

for peripheral boards

DBSAP with 68-pin DB68

mini-jack (connection to

BC)

DC port

AC port
