optiPoint 500
10.5.3.2 optiPoint ISDN adapter
The optiPoint ISDN adapter provides the basic ISDN access for S
0
devices (max. 2), such as,
an S
0
PC card, group 4 fax equipment or video communication devices (such as, videoset or
videokit).
S
0
telephones must have their own power supply for connection.
S
0
interface properties
● Supports point-to-point and passive bus connections
● Wired for short passive bus configurations
● Cable lengths
– Maximum 100 m (328 feet) with a cable impedance of 75 ohms
– Maximum 200 m (656 feet) with a cable impedance of 150 ohms (complies with CCITT
recommendation I.430).
● The NT terminating resistors are integrated into the ISDN adapter.

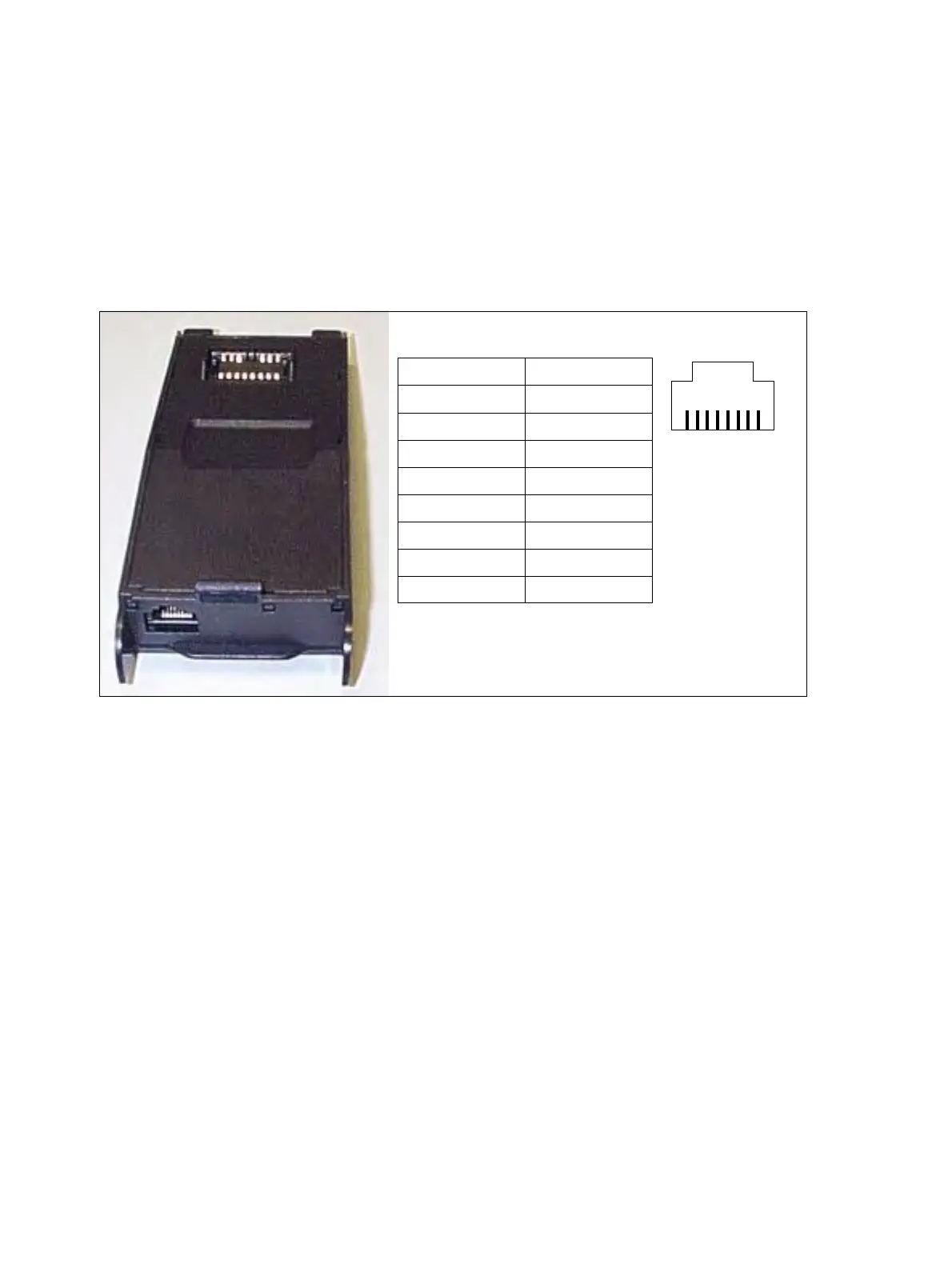

Figure 10-46 optiPoint ISDN adapter
MW8 (RJ45) socket assignments:
Pin Signal
1Free
2Free
3SR1
4SX1
5SX2
6SR2
7Free
8Free
81
