Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
4.2.5 Replacing the Backplane
4.2.5.1 Replacing the Backplane for HiPath 3350/3550 (Wall Cabinet)
To replace the backplane, proceed as follows:
1. Siconnect the HiPath system by unplugging the power cord from the wall socket.
2. Remove the cable connectors from the motherboard, the expansion cards and the optional
modules.
3. Detach the HiPath system from the wall.
4. Remove the motherboard, expansion cards and the optional modules:

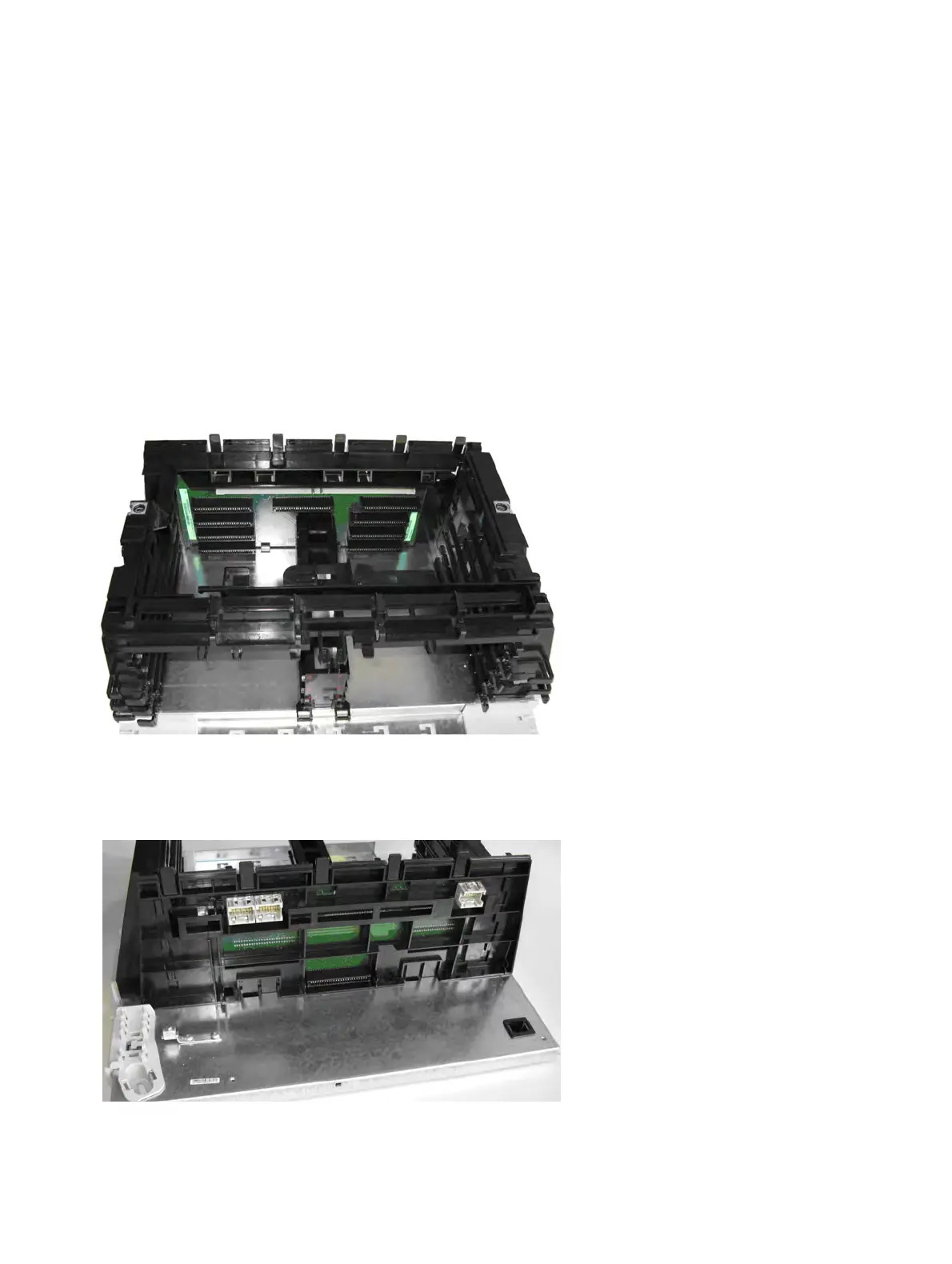

Figure 4-70 HiPath 3550 after removing the motherboard, expansion cards, and the
optional modules
5. Remove the power supply from the HiPath system:
Figure 4-71 HiPath 3550 after removing the power supply
