Peripheral boards
3.3.22 SLU8R
Introduction
The SLU8R (Subscriber Line U
P0/E
Rack) boards provide eight ports for connecting optiPoint
500 telephones to HiPath 3500 and HiPath 3300 (19-inch housing).
Interfaces
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

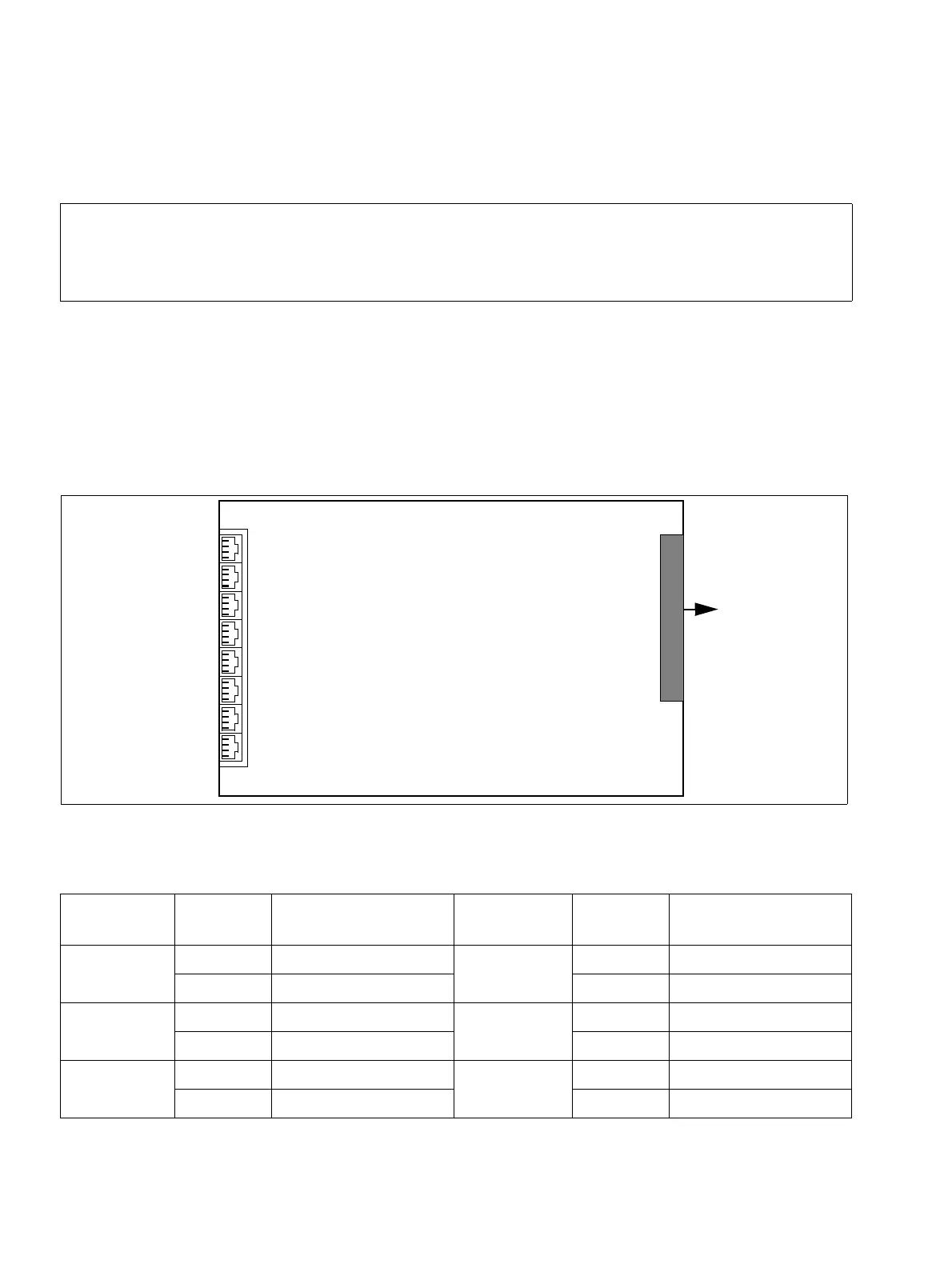

Figure 3-66 SLU8R Interfaces (S30817-K922-Z301)
Table 3-103 SLU8R Contact Assignments
MW8
jack
X2, Pin U
P0/E
ports
1-4
MW8
jack
X2, Pin U
P0/E
ports
5-8
114 a 1 554 a 5
15 b 1 55 b 5
224 a 2 664 a 6
25 b 2 65 b 6
334 a 3 774 a 7
35 b 3 75 b 7
U
P0/E
ports
1–8
(8-pin MW8
jacks)
X1
50
2
to CUPR/
CUCR
X2
11
88
U
P0/E
1
U
P0/E
8
