Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
4.2.3.5 Attaching the System to the Wall
Attach the system to the wall as shown in Figure 4-50.
Attaching the HiPath 3550 and HiPath 3350 housing to the wall

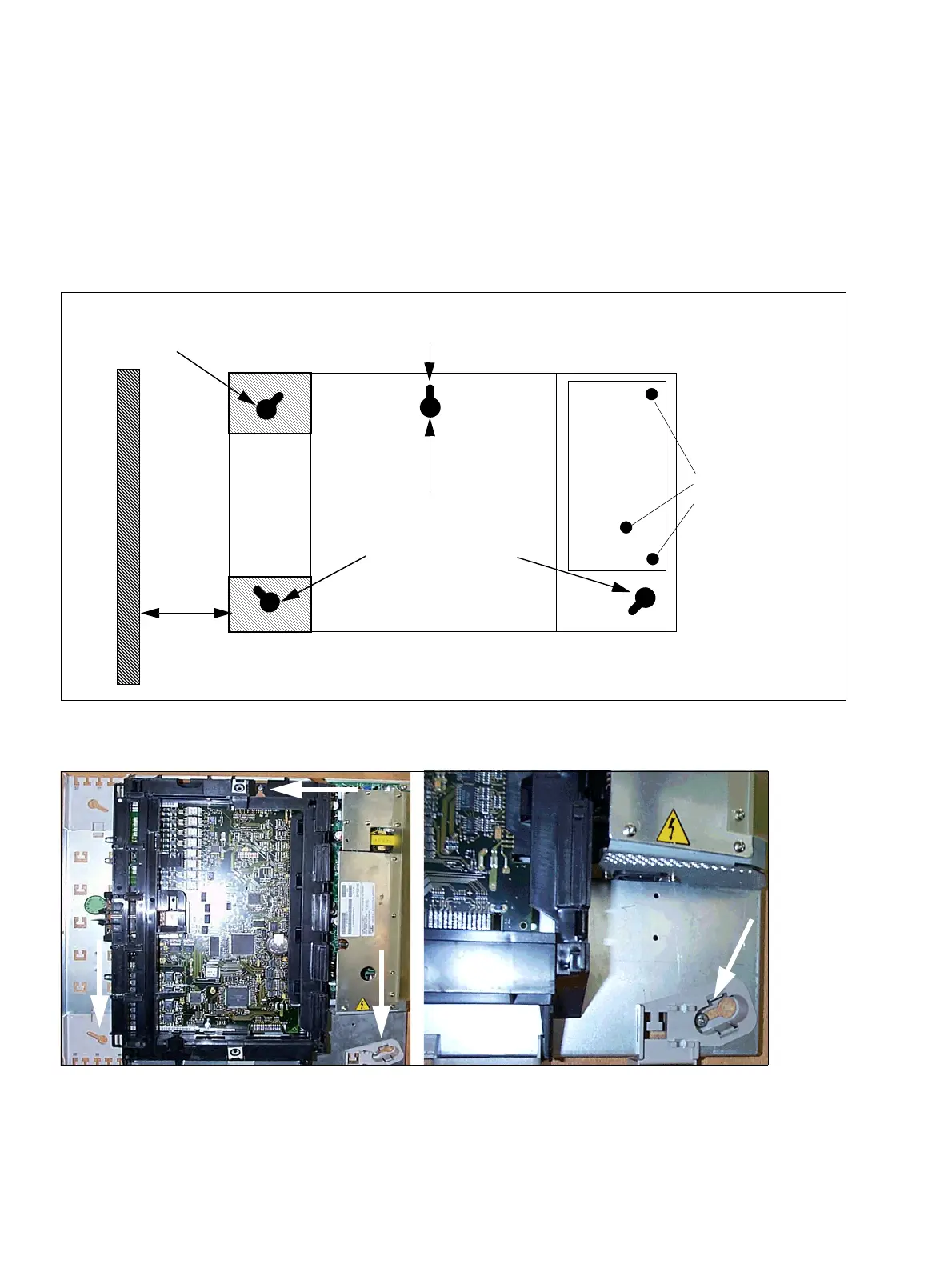

Figure 4-50 HiPath 3550 and HiPath 3350 - Wall Attachment
Figure 4-51 HiPath 3550 and HiPath 3350 - Wall Attachment
PSU/
UPS
Cable
duct
Rear wall of housing
Oblong holes for wall
attachment
Attachment of
PSU
UPS
to the rear
wall of hous-
ing
Hang system and
tighten screws
Minimum clearance for replacing boards
This is not an
attachment
point
30 cm
