Siemens HiPath 3000 Series - Powerbox PB3000 with Batteries and LUNA2

To Next Page

To Previous Page

Expanding and Upgrading HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

9-16 HiPath 3000/5000 V9, Service documentation

exup.fm

HiPath 3000Expanding

9.1.3.6 Powerbox PB3000 with batteries and LUNA2

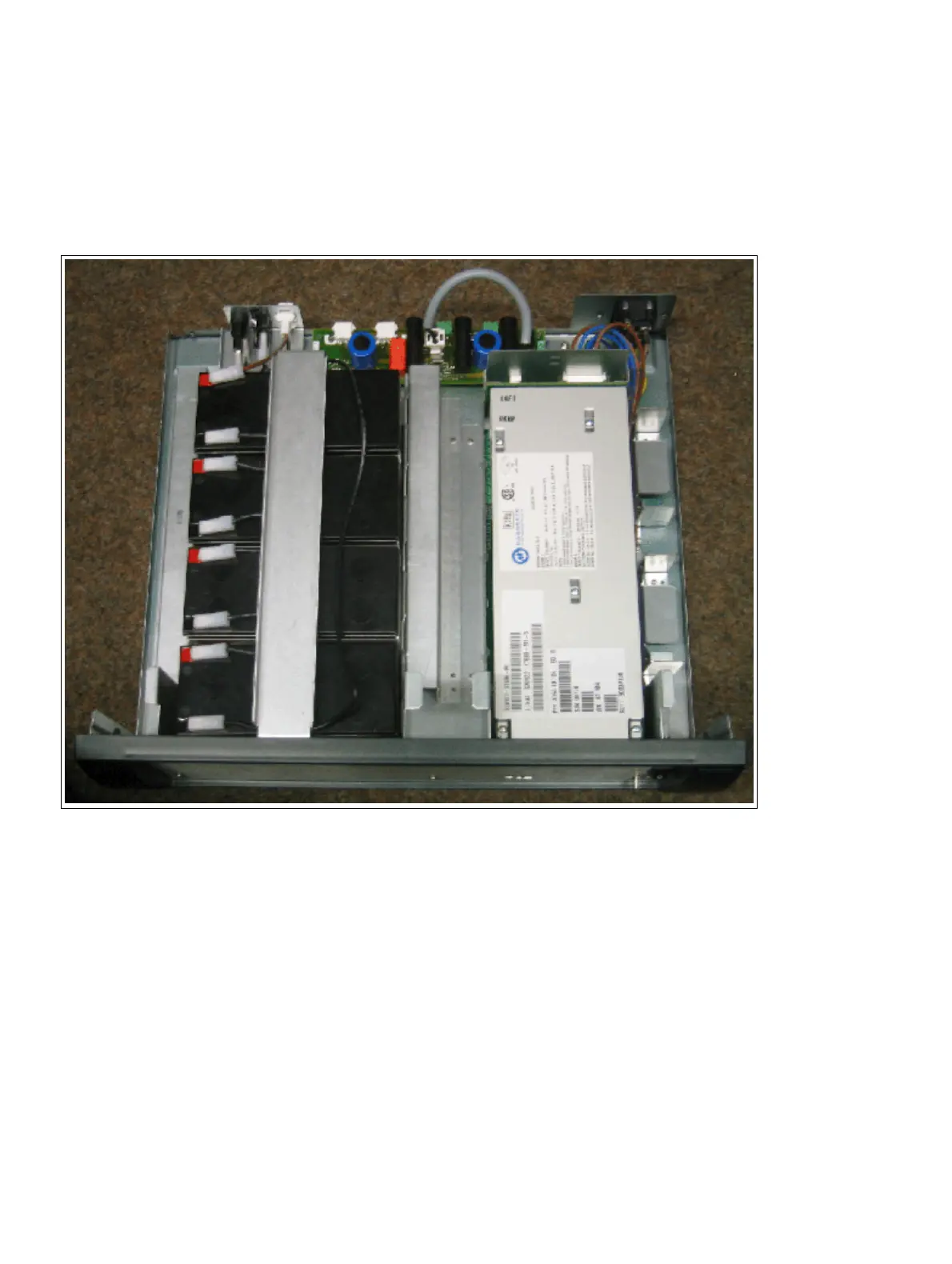

The following figure shows the position of the four batteries and the LUNA2 power supply inside

the PB3000.

Figure 9-4 PB3000 with batteries and LUNA2
