Nur für den internen Gebrauch Expanding and Upgrading HiPath 3000
HiPath 3000Expanding
The following block diagrams illustrate the cable run between the batteries, the LUNA2 power
supply and the power supply unit of the system:

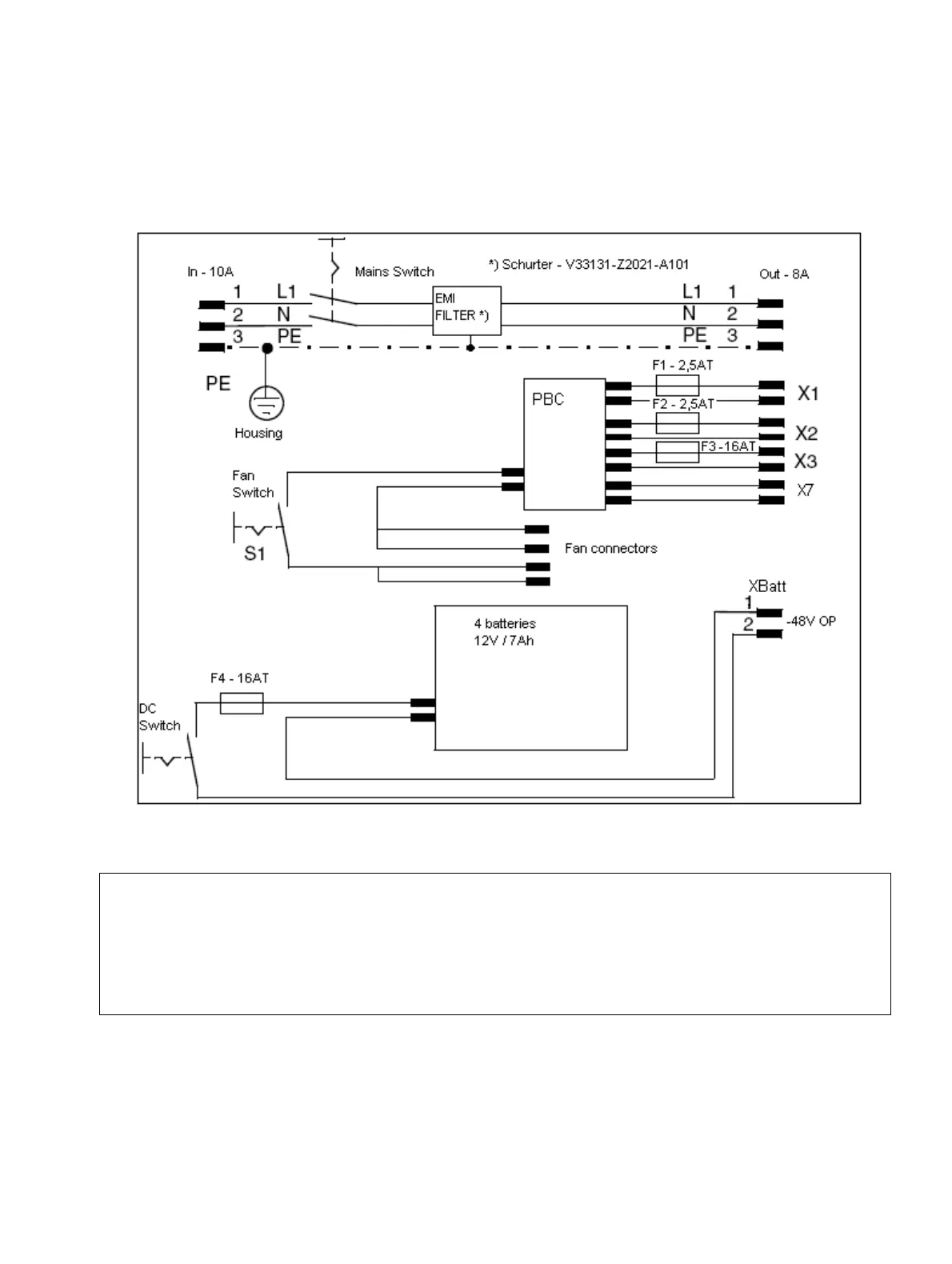

● Block diagram of PB3000 with batteries, without LUNA2
Figure 9-5 PB3000 with Batteries – Block Diagram
7
Caution
When storing a PB3000 equipped with batteries or if it is inactive for a long period of
time, remove the battery fuse (F3: Fuse for battery 16 A/T) at the rear of the PB3000
housing.
Powerbox PB3000 must not be transported be the batteries installed. The batteries
must first be removed.
