Installing HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

4-52 HiPath 3000/5000 V9, Service documentation

inst_h3.fm

Installing HiPath 3800

4.1.6.1 Backplane of the Basic Cabinet

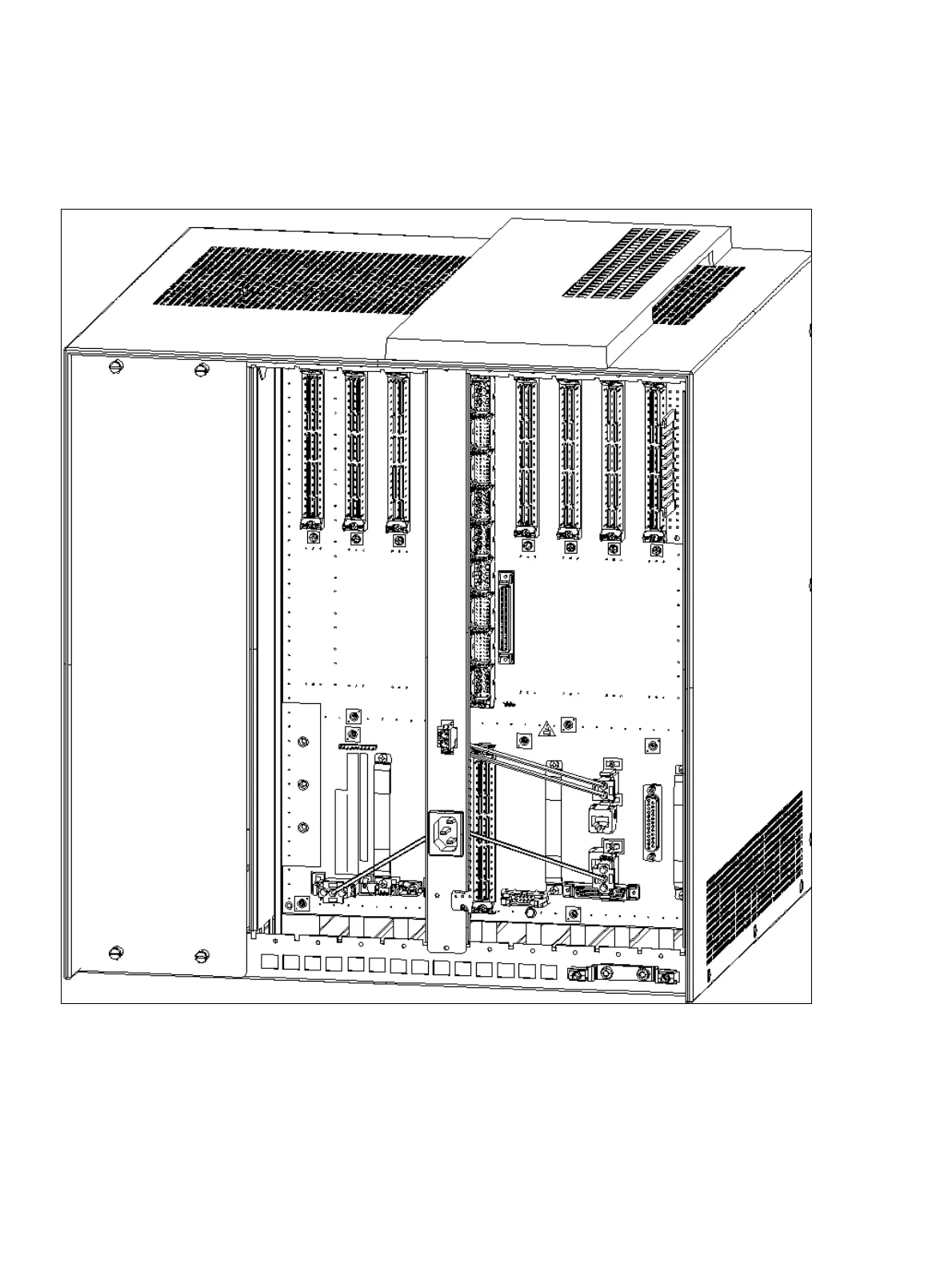

Figure 4-28 HiPath 3800 - Backplane (S30804-Q5392-X) of the Basic Cabinet

9 SIVAPAC con-

nector for peripher-

als

68-pin DB68 mini-

jack (connection to

EC)

DC port

AC port
