3.4.9 HOPE (for U.S. only)
Introduction
The HOPE (Hicom Office PhoneMail Entry) board provides Hicom Office PhoneMail Entry func-
tions.
Interfaces
Board components
The following list describes the purpose of the components on the HOPE board:
● The LED status indicator signals the state of the Hicom Office PhoneMail system
● The software load/diagnostic button is for software loads (for example, loading a specific
language).
● The digital station connector connects the HOPE board to the corresponding digital ports,
using a modular cable
>
The HOPE board does not identify itself to the system and is therefore not visible in
the HiPath 3000/5000 Manager E card map. When expanding a system (such as Hi-
Path 3350 or HiPath 3550), ensure that a free slot is available.

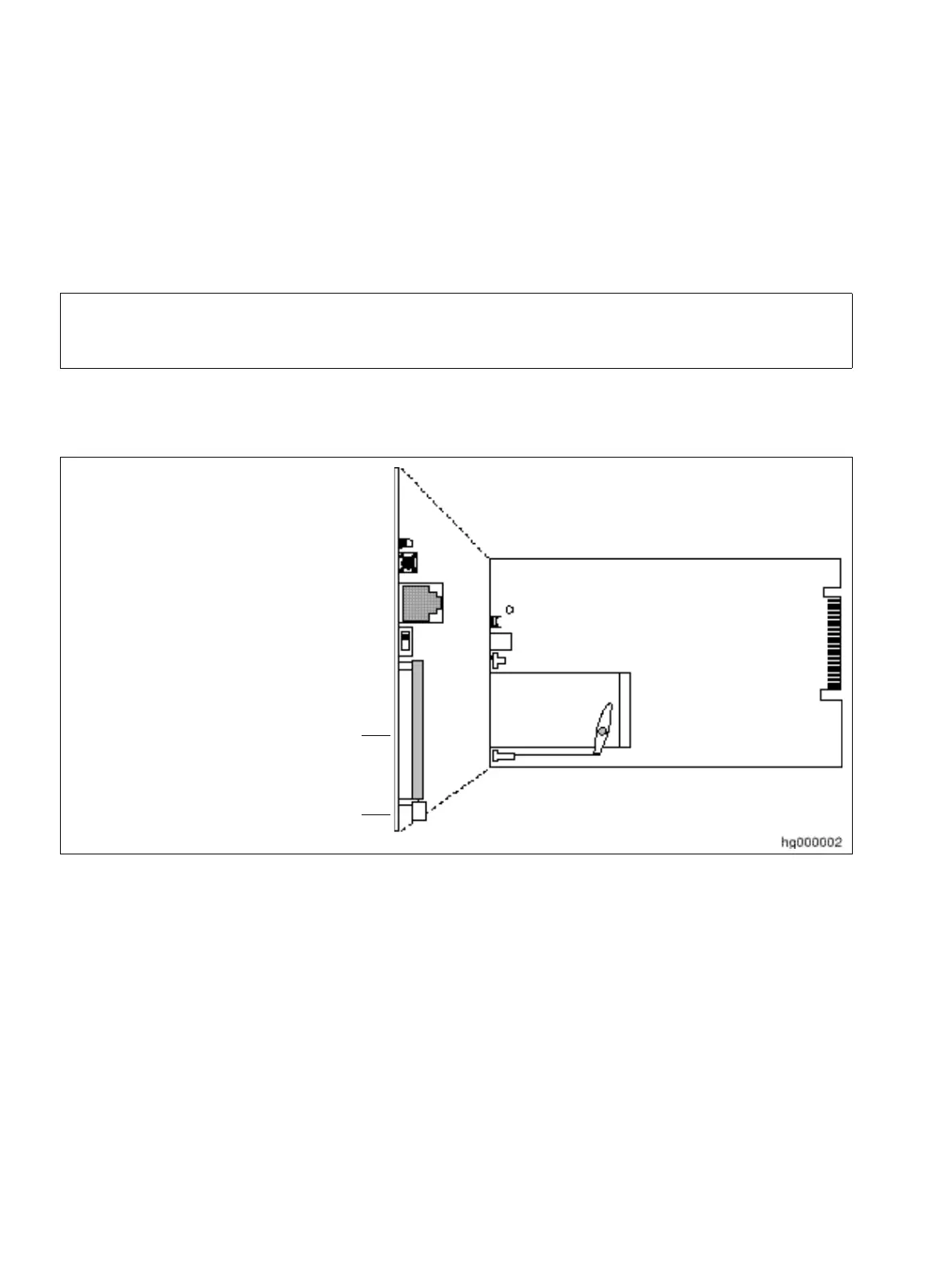

Figure 3-139 HOPE (for U.S. only) (S30122-Q7078-X; S30122-Q7079-X)
LED status indicator
Software load/diagnostic button
Digital station connector
On/off switch
(Off—towards LED
On—towards slot)
PCMCIA slot
Card ejector
