Siemens HiPath 3000 Series - Connecting Lines to the External S Patch Panel

Installing HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
4-78 HiPath 3000/5000 V9, Service documentation
inst_h3.fm
Installing HiPath 3800
4.1.7.3.2 Connecting Lines to the External S
0
Patch Panel
CABLUs must be manually connected to the S
0
patch panel (Figure 4-46). You can use the Kro-
ne wiring tool for this.

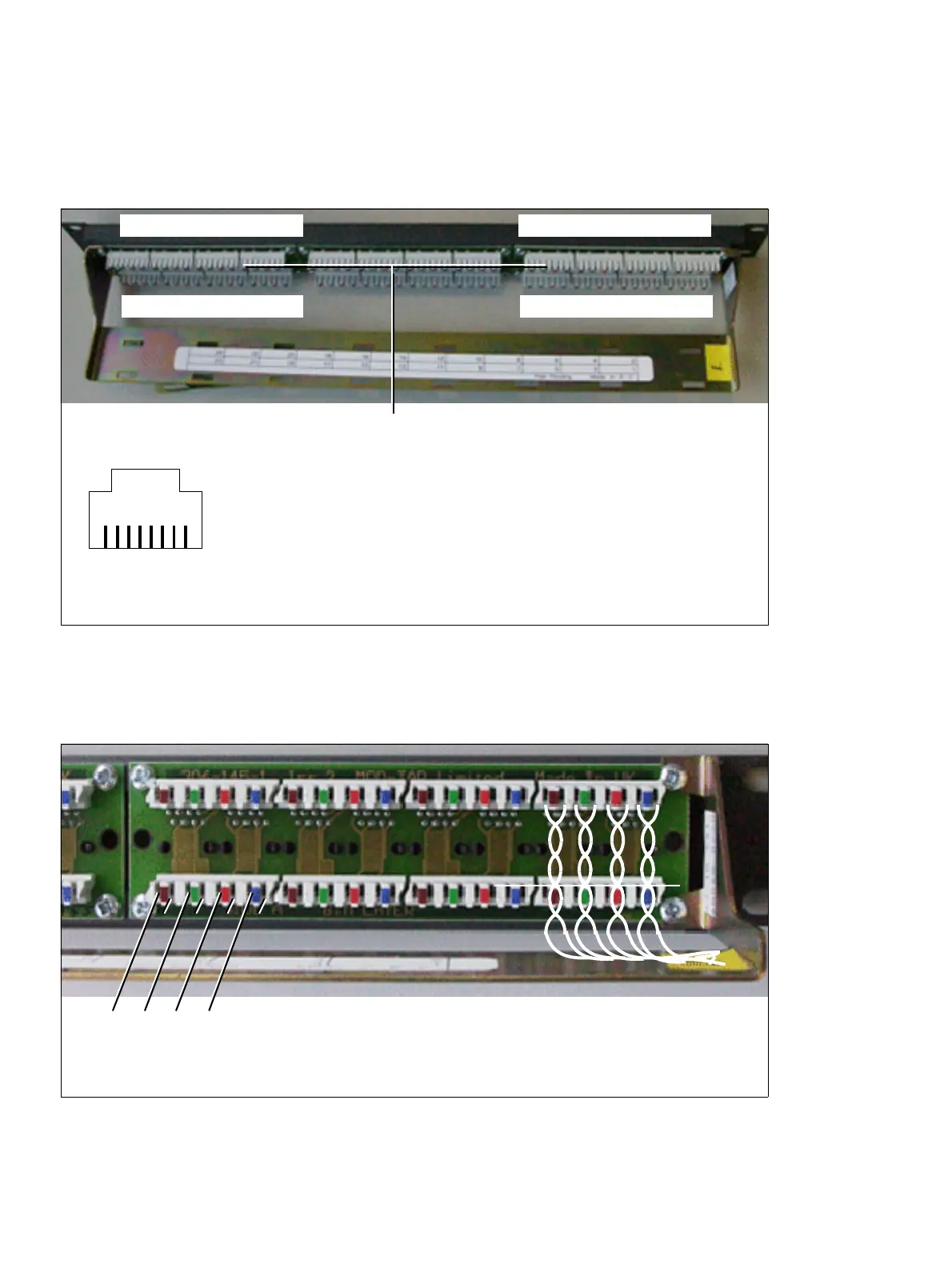

Figure 4-45 Assignment of the S
0
Patch Panel C39104-Z7001-B3
Figure 4-46 Laying Wire Pairs at the S
0
Patch Panel
... 753123 21 19 17 ...
... 864224 22 20 18 ...
3 x 8 MW8 jacks, numbering
81
:
Pin
MW8 jack assignment:
as a subscriber line as a trunk connection
3 Transmit + Receive +
4 Receive + Transmit +
5 Receive – Transmit –
6 Transmit – Receive –
87632145
Pin assignment of MW8 jacks
Twist the wire pairs before laying them.
