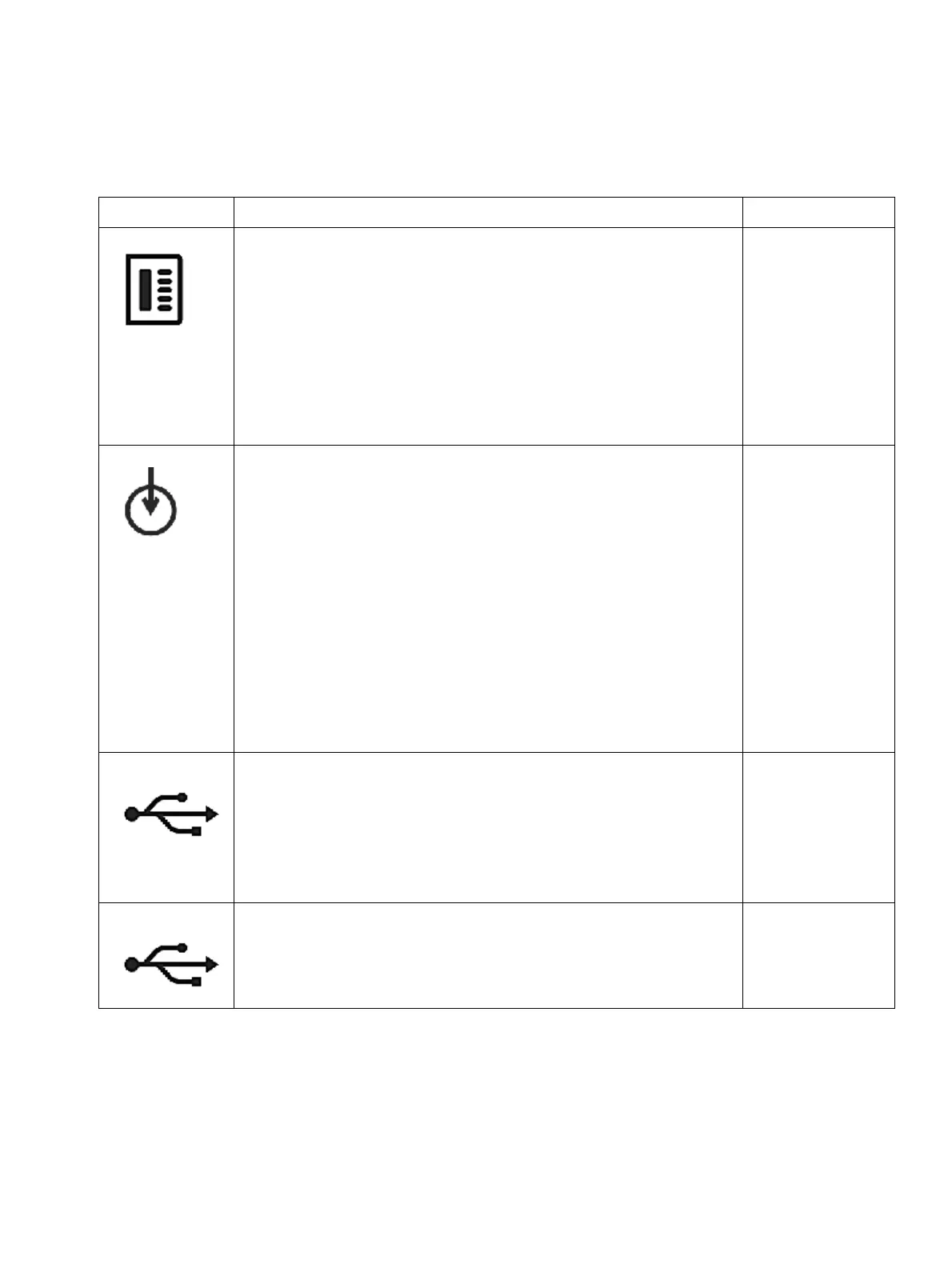

10.1.2.11 OpenStage Terminals - Description of Ports
Port Description Telephones
CorNet-IP connection variants
Connection for key module
OpenStage 15
OpenStage 40
OpenStage 60
OpenStage 80
TDM connection variants
Connection for key module
OpenStage 15 T
OpenStage 30 T
OpenStage 40 T
OpenStage 60 T
OpenStage 80 T
CorNet-IP connection variants
Port for an external power supply unit. Section 10.1.4 con-
tains information about the cases in which an external pow-
er supply unit is required.
OpenStage 15
OpenStage 20
OpenStage 40
OpenStage 60
OpenStage 80
TDM connection variants
● Additional power supply not required:
Connection to HiPath 3000
● Additional power supply required: Connection to an ex-
ternal power supply unit. Section 10.1.4 contains infor-
mation about the cases in which an external power sup-
ply unit is required.
● Port on OpenStage PhoneAdapter
OpenStage 10 T
OpenStage 15 T
OpenStage 20 T
OpenStage 30 T
OpenStage 40 T
OpenStage 60 T
OpenStage 80 T
CorNet-IP connection variants
First USB port; not used.
OpenStage 60
OpenStage 80
TDM connection variants
First USB port, e.g., for first-party CTI
OpenStage 30 T
OpenStage 40 T
OpenStage 60 T
OpenStage 80 T
CorNet-IP connection variants
Second USB port, e.g., for USB memory stick
OpenStage 60
OpenStage 80
TDM connection variants
Second USB port, e.g., for USB memory stick
OpenStage 60 T
OpenStage 80 T
Table 10-1 OpenStage-Terminals - Description of Ports
