3.4.7 EXMNA (for U.S. only)
Introduction
The EXMNA (external music on hold) module provides a connection for external music on hold
in HiPath 3550 and HiPath 3350.
The EXMNA connects to the CBCC and CBCP board (connector X4) by means of a ribbon ca-
ble.
● Ribbon cable connected = External music
● Ribbon cable not connected = Internal music
Expert mode code 22 11 allows you to choose between music on, music off, ring tone, or music
on unscreened transfer. If the EXMNA module is connected, you must select Music on using
Assistant T or HiPath 3000/5000 Manager E. The module is operational as soon as it is plugged
in.
Interfaces

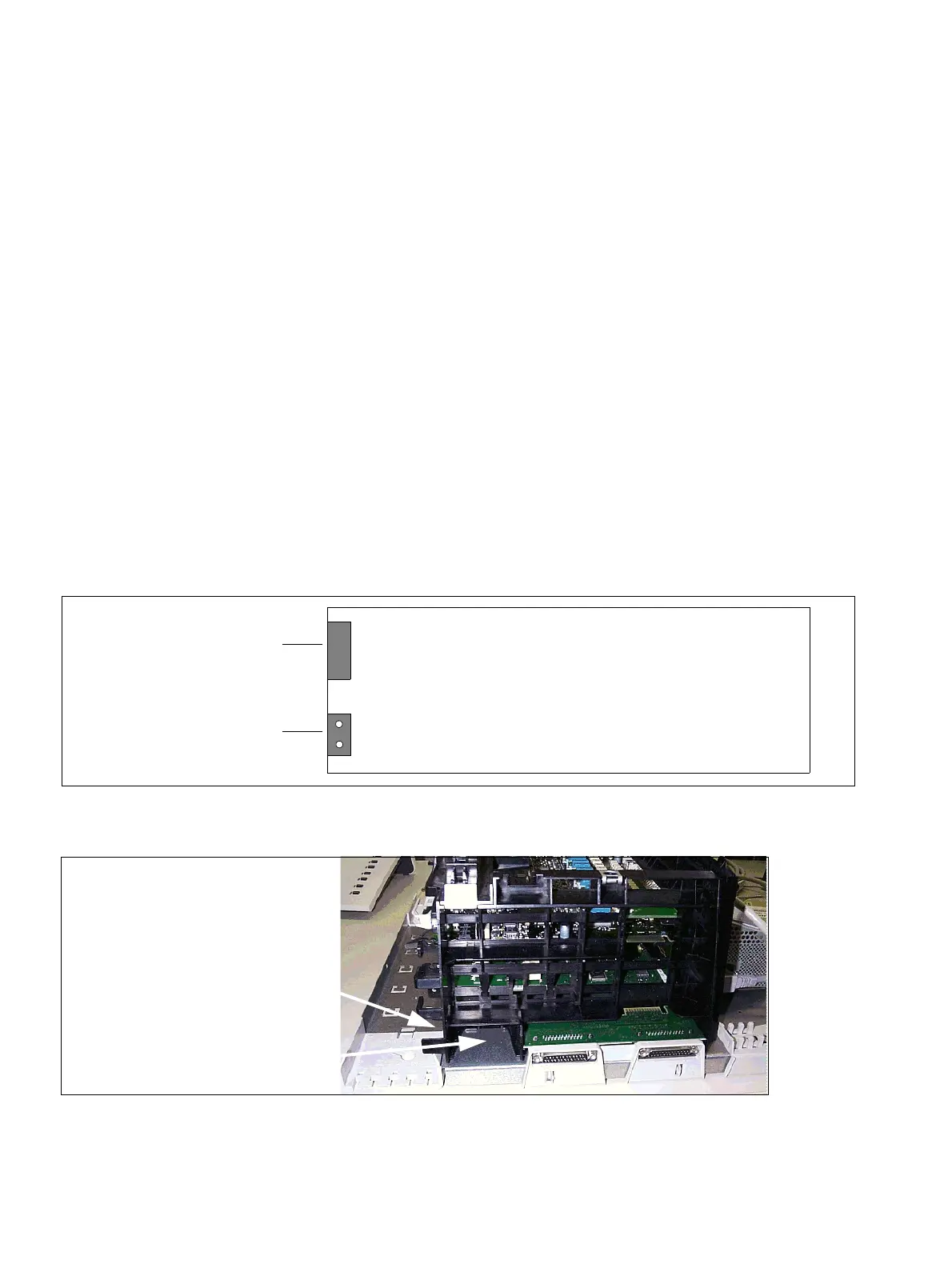

Figure 3-136 EXMNA (for U.S. only) (S30807-Q6923-X)
Figure 3-137 EXMNA (for U.S. only) - Slot for HiPath 3550 and HiPath 3350
Ribbon cable to
CB
To external music
source
1
10
X1
X2
EXMNA
Cable duct
Slot for EXMNA module
