Expanding and Upgrading HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

9-28 HiPath 3000/5000 V9, Service documentation

exup.fm

HiPath 3000Expanding

9.1.4.2 Connecting Speakers

You have the following options:

● Connection to an analog station port (the amplifier may require level adaptation)

● Connection to an analog station port over an ET adapter

Note: The ET adapter requires a 12V power supply (DC or AC).

● Connection to an analog trunk circuit

Connecting speakers to an analog station port

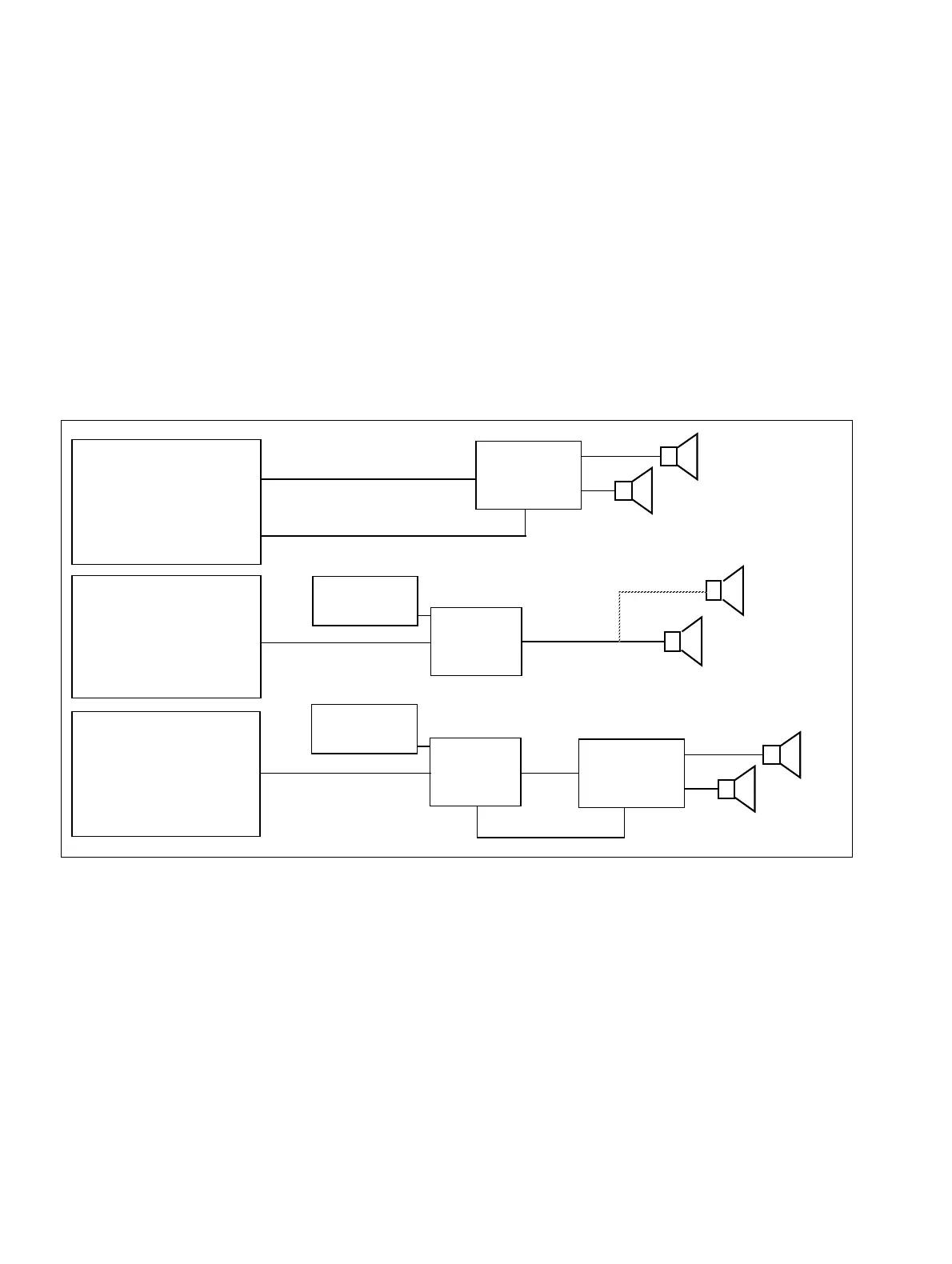

Figure 9-10 Connecting Speakers to an Analog Station Port

12V

power supply

12V

power supply

HiPath 3000

SLA/SLAS

HiPath 3000

SLA/SLAS

Amplifier

T/R

Active spea-

kers only

T/R

(without

amplifier)

HiPath 3000

SLA/SLAS

REAL/STRBR/

STRBR

Amplifier

T/R

Starting contact
