wclient.fm
A31003-H3590-S100-7-7620, 06/2012
HiPath 3000/5000 V9, Service documentation
10-103
Nur für den internen Gebrauch Workpoint Clients
optiPoint 500
10.5.3.5 optiPoint recorder adapter
The optiPoint recorder adapter allows an external recorder or a second headset to be connect-
ed.
Warning: The called party must be informed that the call is being recorded.

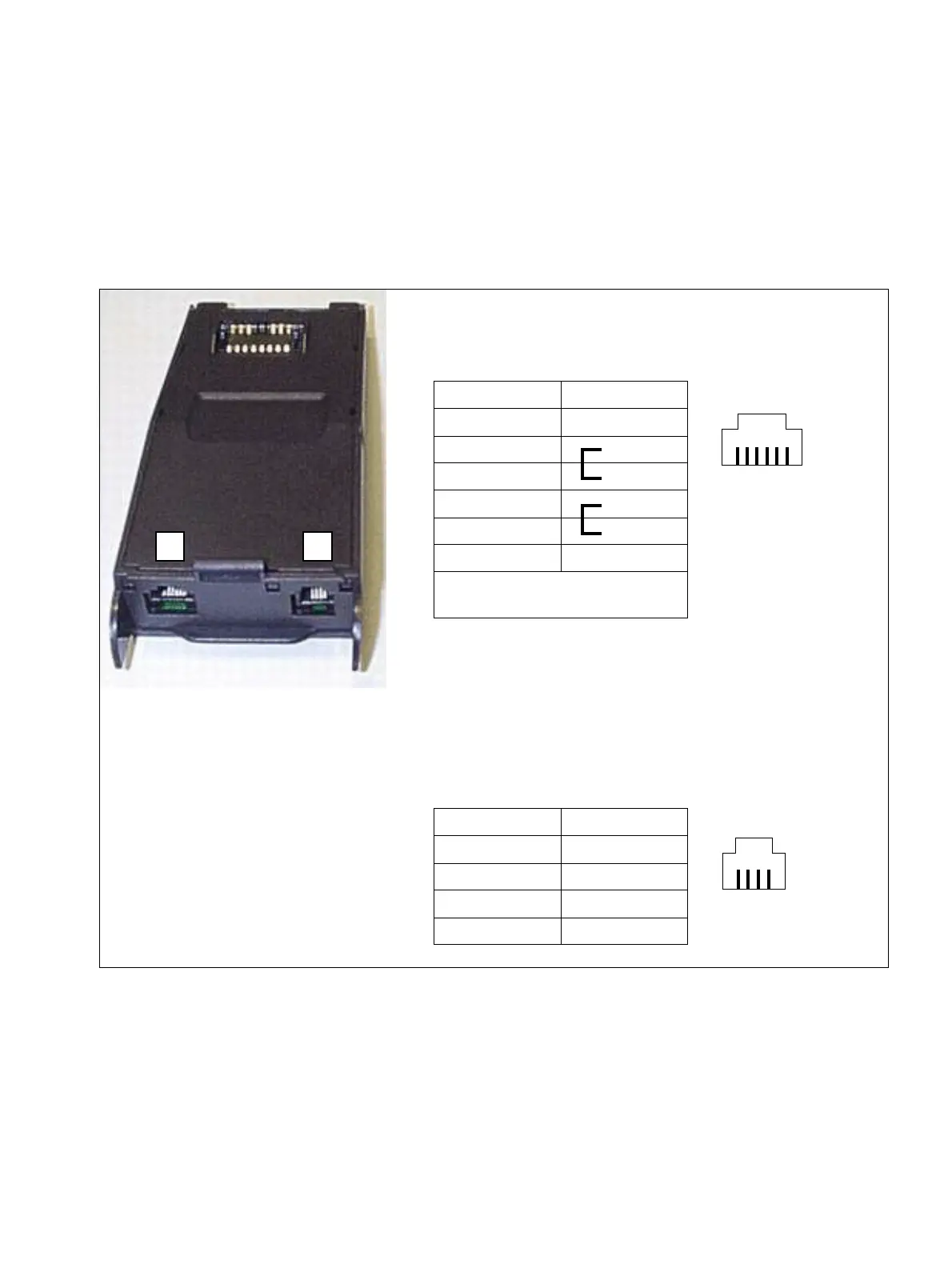

Figure 10-51 optiPoint recorder adapter
Assignment of both connection jacks:
Recorders to be connected must meet the following electrical re-
quirements:
Input impedance: >10 kΩ
Frequency progression: 300 to 3000 Hz ± 3 dB
Beep tone level: -26 dBm to -18 dBm at a 600 Ω load
Max. input level: 650 mVeff from a 600 Ω source
1 MW6 port for recorder
Pin Signal
1Free
2NF
3NF
4NF
5NF
6Free
Contacts 2+3 and 4+5 are bridged
internally.
2 MW4 port for second headset
Pin Signal
1Tx–
2Rx
3Rx
4Tx+
21
61
41
