Peripheral boards
3.3.14 SLCN (not for U.S.)
Introduction
The SLCN (Subscriber Line Module Cordless New) board is used in HiPath 3800 and connects
base stations to HiPath Cordless Office. There are 16 U
P0/E
ports available for this.
You can install up to four SLCN boards in one system.
Chapter 11 contains basic information on the options available for operating HiPath Cordless
Office.
Base stations must be clocked with a high degree of accuracy for HiPath Cordless Office. For
this, the subboard CMS must be plugged into the CBSAP board (see Table 11-1).
Front panel
An additional shielding panel is not required on the front side of this board, because the EMC
shield is already provided by the front panel.
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

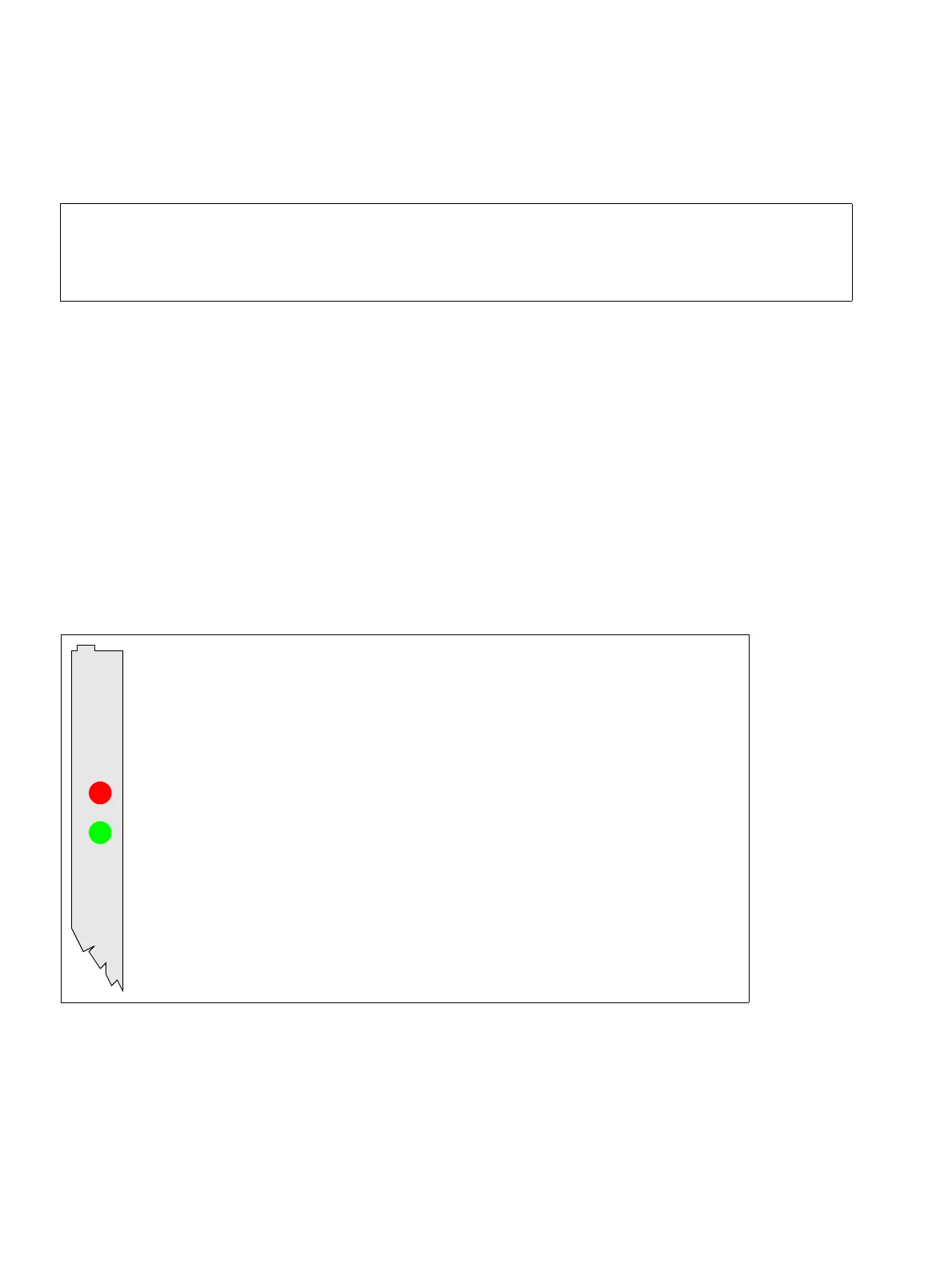

Figure 3-56 SLCN (not for U.S.) (S30810-Q2193-X300) - LEDs in the Front Panel
Two LEDs indicating the board status:
● LED (red)
● LED (green)
