Peripheral boards
Base Station Power Supply via Three U
P0/E
Interfaces
Connect the base station to three free interfaces on SLC16N as shown in Figure 3-55. Be care-
ful not to exceed the maximum connection cable lengths (1000 m for 2 x 0.6 mm).
The use of three U
P0/E
interfaces increases the traffic capacity in the base station.
Additional UPSC-D power supply via an external power supply unit
If the power supplied by the UPSC-D (HiPath 3550) is insufficient, additional power can be sup-
plied by installing the external power supply (Powerbox PB3000). To do this, connect the DC
port on the PB3000 to the special DC input on the UPSC-D.
As described on the preceding pages, the base stations must be connected to free U
P0/E
inter-
faces. BS3/1 needs one, BS3/2 needs two, and BS3/3 needs three free U
P0/E
interfaces.
Powerbox PB3000 is also used if an external power supply unit is required for HiPath 3500 or
HiPath 3300 (19-inch housing).
Section 11.4, “Power-Related Capacity Limits” shows which telephone configurations manage
without an additional power supply and which configurations require an additional one.

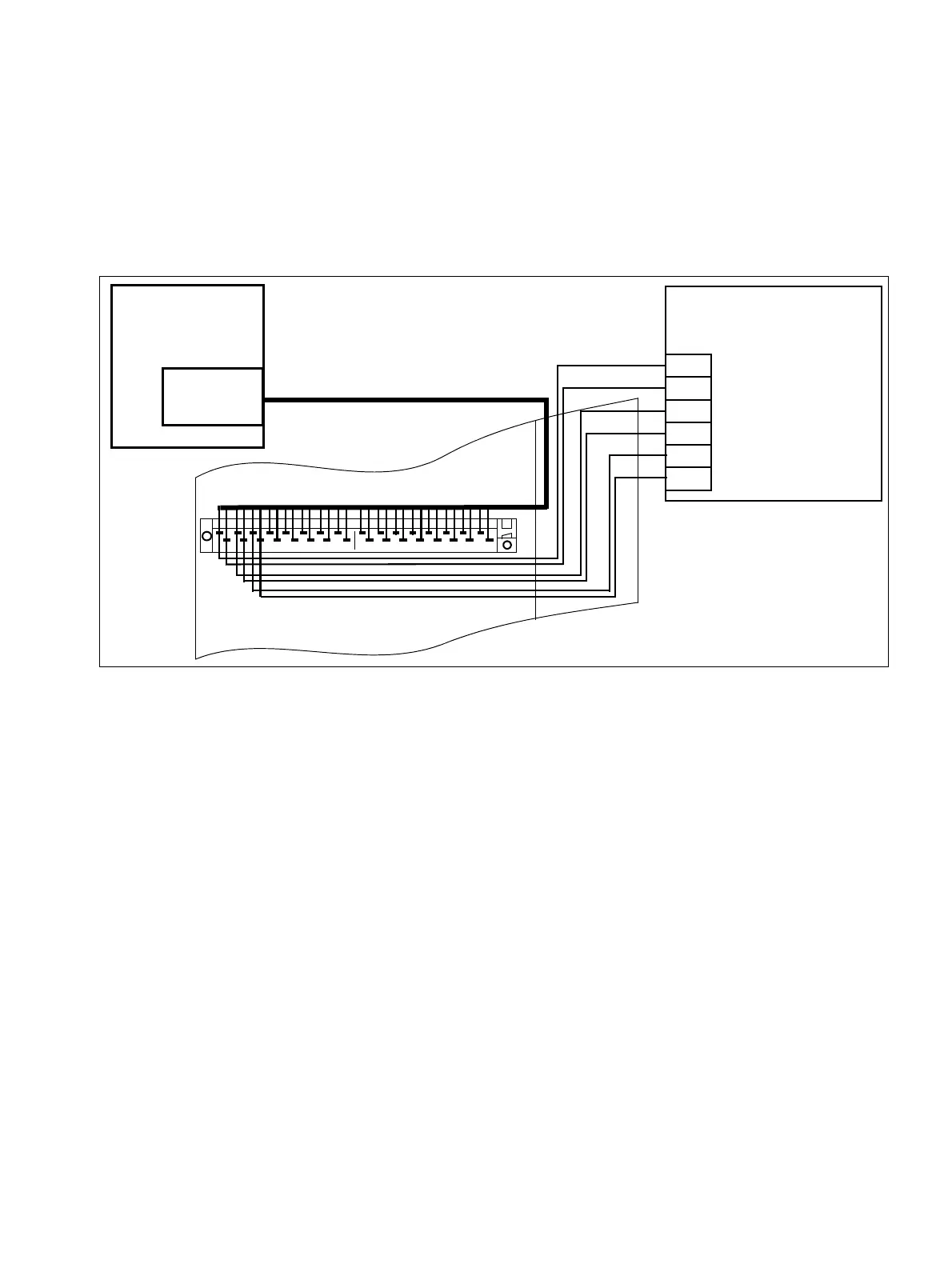

Figure 3-55 Base Station Power Supply via Three
P0/E
Interfaces (not for U.S.)
a
b
1
CABLU
MDFU, MDFU-E
2
3
4
5
U
P0/E
1
U
P0/E
2
U
P0/E
3
BS3/3, BS4 for indoors
Splitting
strip
7
6
HiPath 3550
SLC16N
