HG 1500 Board
Access to the local networks can be established via the following connections:
● Analog V.34 (max. 33,600 bps)
● Analog V.90
● ISDN DSS1
● GSM V.110
● V.90 (max. 56,000 bps)
Routing with HG 1500
13.6.13 Call Charge Allocation and Callback
If HG 1500 establishes an ISDN trunk call, the charges incurred are allocated to the station
number used. As long as this physical connection exists, data can be transferred in both direc-
tions. If a connection exists between HG 1500 A and HG 1500 B via the trunk, all HG 1500 A
and B devices connected to the LAN can avail of the connection. In this case, the charges are
allocated to the station number of the HG 1500 A board port which established the connection.
As is standard with today’s routers, call charges can only be allocated to the router station num-
ber and not to specific LAN devices or applications.

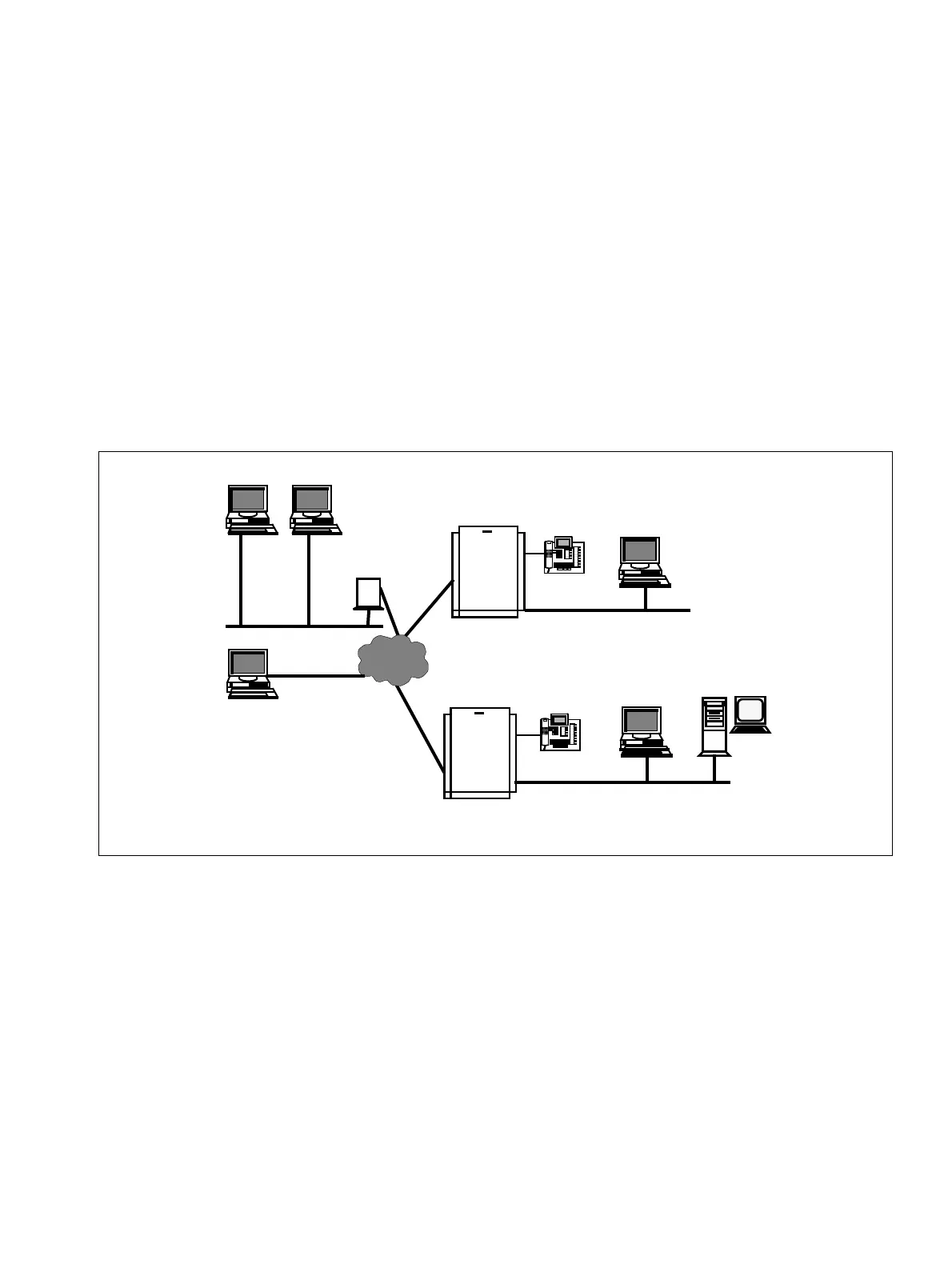

Figure 13-5 Routing with HG 1500
