Peripheral boards
3.3.21 SLU8
Introduction
The SLU8 board for HiPath 3550 and HiPath 3350 (wall housing) with 8 digital subscriber line
interfaces allows up to 16 digital telephones to be connected in host-client operation (master-
slave operation).
Interfaces
>
NOTE
Danger of damage to property due to surge voltage. The required lightning protec-
tion measures must be taken for this board, see Section 2.1.2, “Lightning Protec-
tion”.

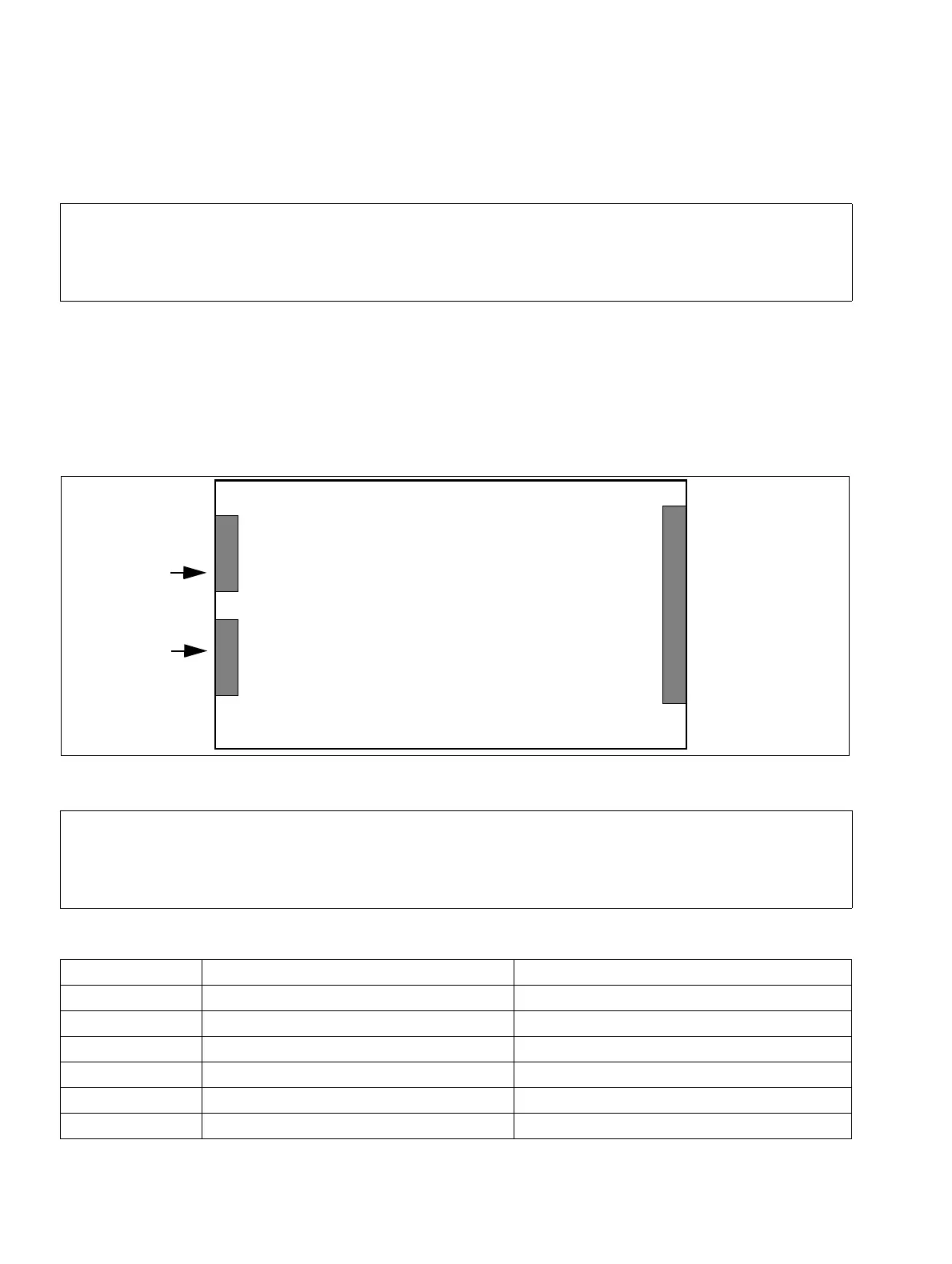

Figure 3-65 SLU8 Interfaces (S30817-Q922-A301)
7
Caution
After deactivating the power supply, you must wait a short while before plugging the
SLU8 in or out. If you do not wait before doing so, the CBCC/CBCP may be dam-
aged.
Table 3-102 SLU8 Contact Assignments
Contact X2 (U
Po/E
ports 1-4) X3 (U
P0/E
ports 5-8)
1a 1 a 5
2b 1 b 5
3a 2 a 6
4b 2 b 6
5a 3 a 7
6b 3 b 7
X1
50
2
X2
X3
1
8
1
8
SLU8
U
P0/E
ports
5-8
U
P0/E
ports
1-4
To CUP/CUC
