3.4.11 PFT1 (not for U.S.), PFT4 (not for U.S.)
Introduction
In the event of a power failure or system error in HiPath 3800, analog trunks can be transferred
(ALUM) to designated analog telephones. These are:
● 1 analog trunk with a PFT1 (Power Failure Tranfer) board
● 4 analog trunks with a PFT4 board
When using an analog telephone for outgoing calls, you may need to adapt its signaling method
to match the signaling method of the connected trunk.
ALUM using PFT1/PFT4

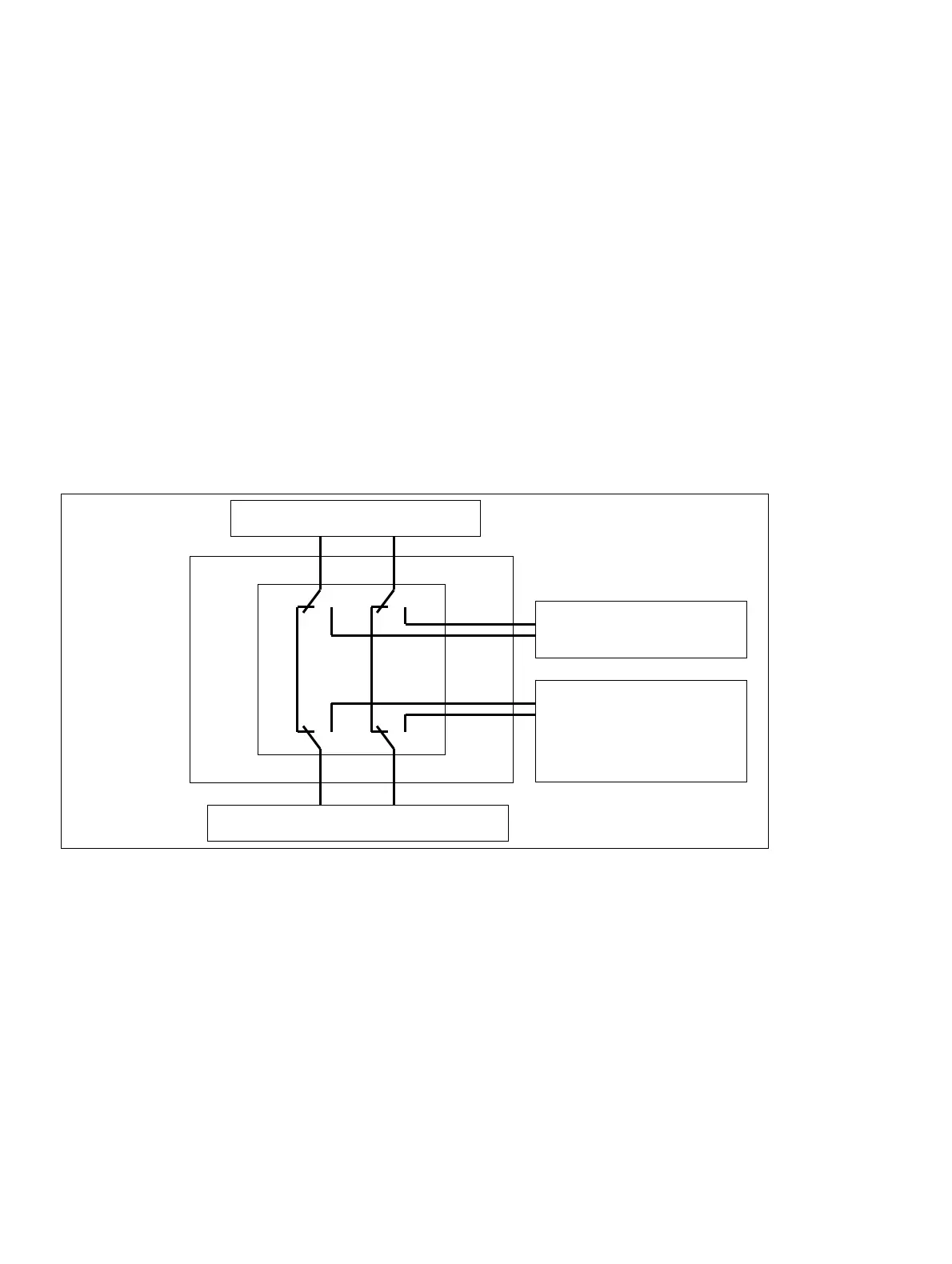

Figure 3-142 ALUM Using PFT1/PFT4 (not for U.S.)
R
E
L
A
I
S
TMB
TMA
SMA
SMB
Trunk circuit
Analog station board
(optional)
Analog telephone
SLBSLA
ba
TRUNK
PFT
