Siemens HiPath 3000 Series

To Next Page

To Previous Page

boards.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

3-371

Nur für den internen Gebrauch Boards for HiPath 3000

Options

Interfaces

Individual announcements in the case of upgrades

In the case of a Fast Upgrade, i.e., within a release, the individual announcements and mes-

sages are retained. In the case of an upgrade from HiPath 3000 V7 to V8, these announce-

ments and messages are deleted.

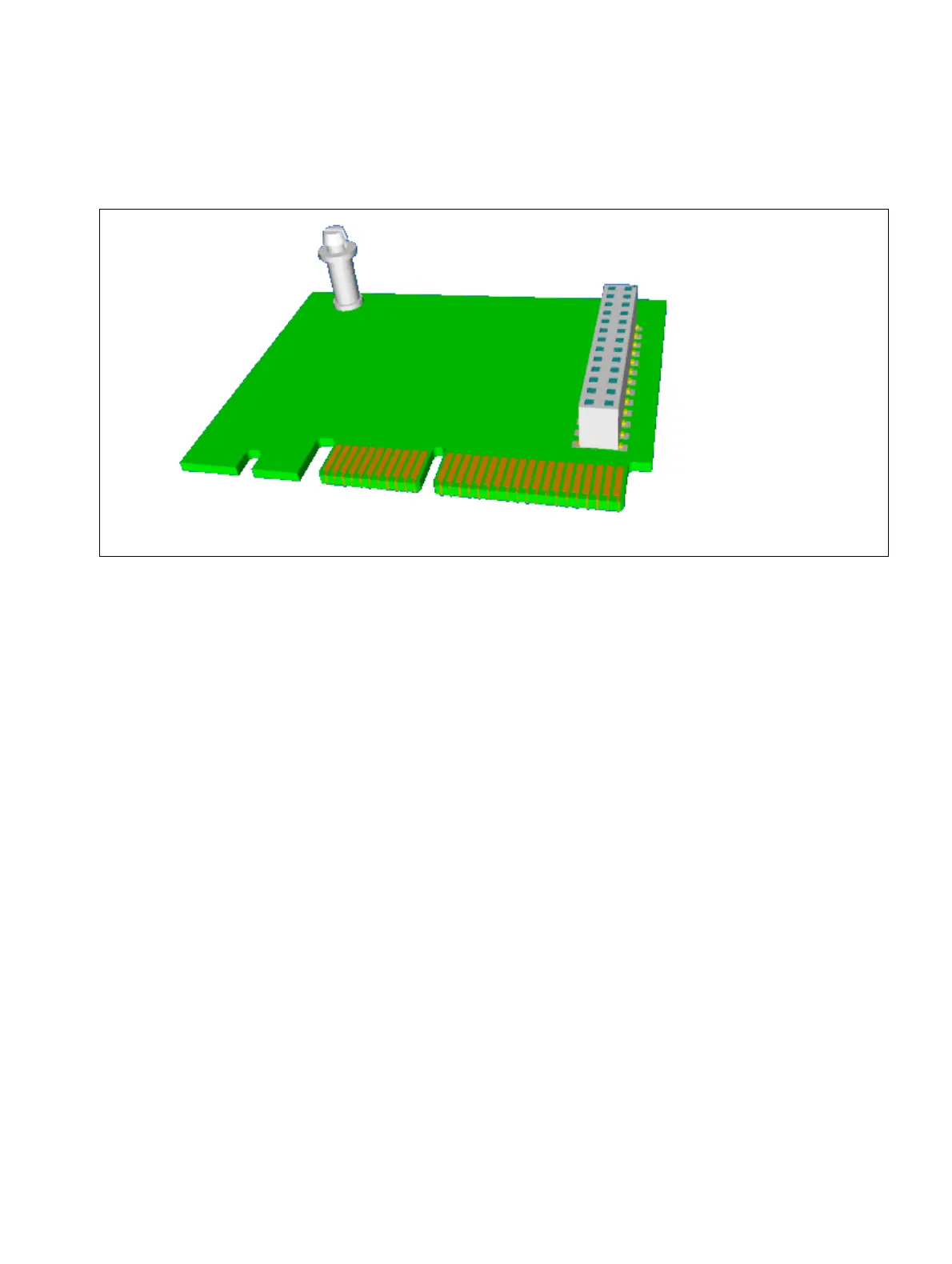

Figure 3-135 EVM (S30807-Q6945-X) - Interfaces

Spacing bolts

26-pin socket strip

X1 (not used for HiPath 3000)
