Siemens HiPath 3000 Series

To Next Page

To Previous Page

Expanding and Upgrading HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

9-18 HiPath 3000/5000 V9, Service documentation

exup.fm

HiPath 3000Expanding

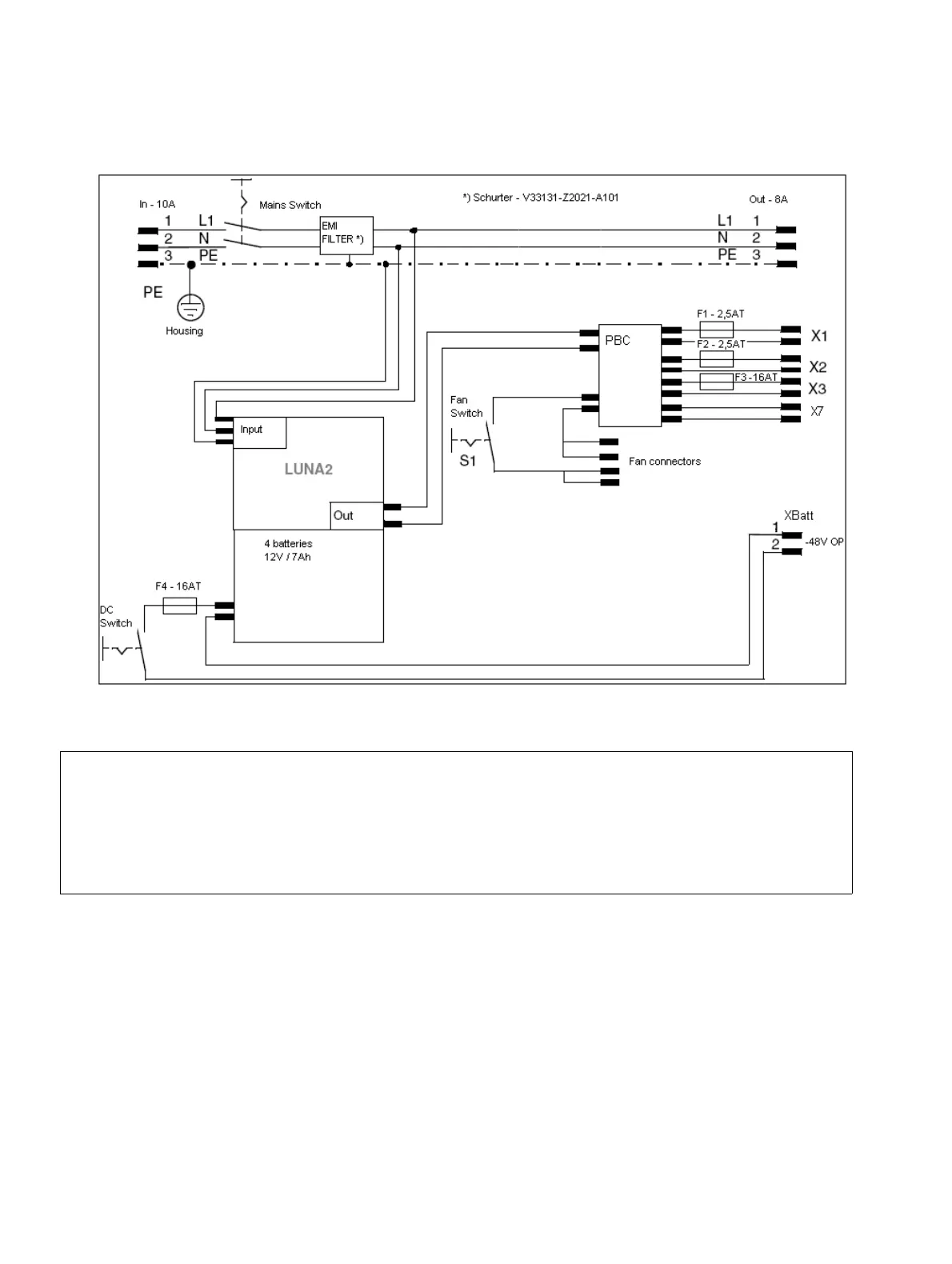

● Block diagram of PB3000 with batteries and LUNA2

Figure 9-6 PB3000 with Batteries and LUNA2 - Block Diagram

Caution

When storing a PB3000 equipped with batteries or if it is inactive for a long period of

time, remove the battery fuse (F3: Fuse for battery 16 A/T) on the rear of the PB3000

housing

Powerbox PB3000 must not be transported be the batteries installed. The batteries

must first be removed.
