Dynamic Configuration Rules

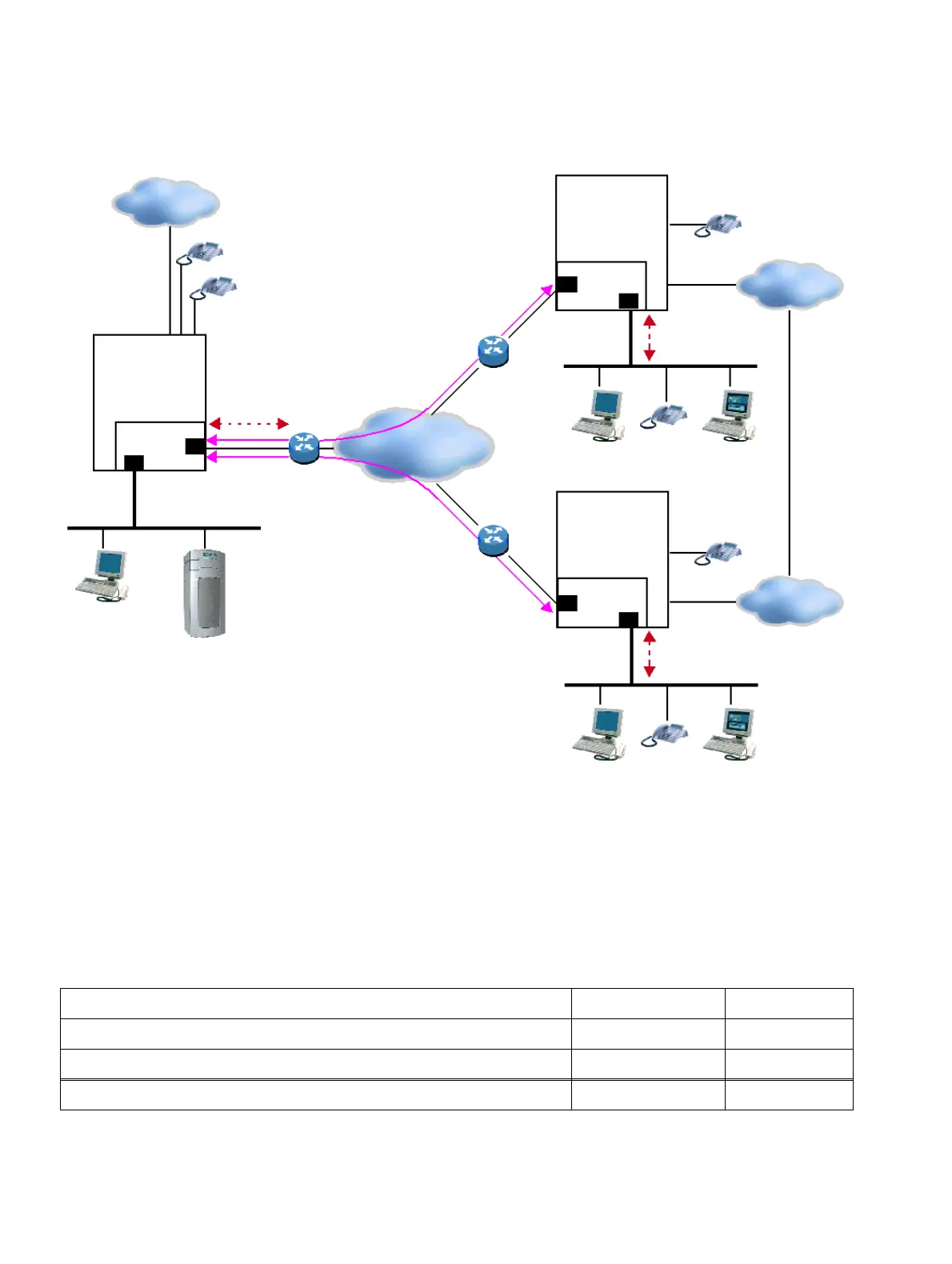

Figure 2-11 VPN Networking (Voice Only)
Calculation for head office (HiPath 3800)
8 gateway channels via LAN2 with AES encryption must be calculated. In order to use the en-
cryption feature, the option “Enhanced B Channels” must be deactivated. The signaling load
must also be taken into account.
With a permissible maximum points total of 980, this scenario is feasible for head office.
Table 2-51 Calculation for Head Office (HiPath 3800)
Function Formula Points
Signaling: PBX networking channels (without H.235) 8 · 3.2 26
Gateway channels: G.711 with VPN and AES 8 · 89 712
Total 738
HiPath 3800
LAN 2
LAN 1
Head Office
HiPath 35x0
LAN 1
LAN 2
Branch Office 1
Intranet
Intranet
HiPath 35x0
LAN 1
LAN 2
ISDN
Branch Office 2
4 Voice PBX/Networking Channels
AES Encryption
Codec G.711 (20ms)
Intranet
ISDN
ISDN
30 HFA Clients
30 HFA Clients
Internet
8 Gateway Channels
8 Gateway Channels
4 Voice PBX/Networking Channels
AES Encryption
Codec G.711 (20ms)
Encrypted
Intranet Traffic
(Voice/Data)
via VPN Tunnel
8 Voice PBX/Networking
Channels
AES Encryption
Codec G.711 (20ms)
