Nur für den internen Gebrauch Boards for HiPath 3000
Central Board
Figure CBCC S30810-Q2935-A301

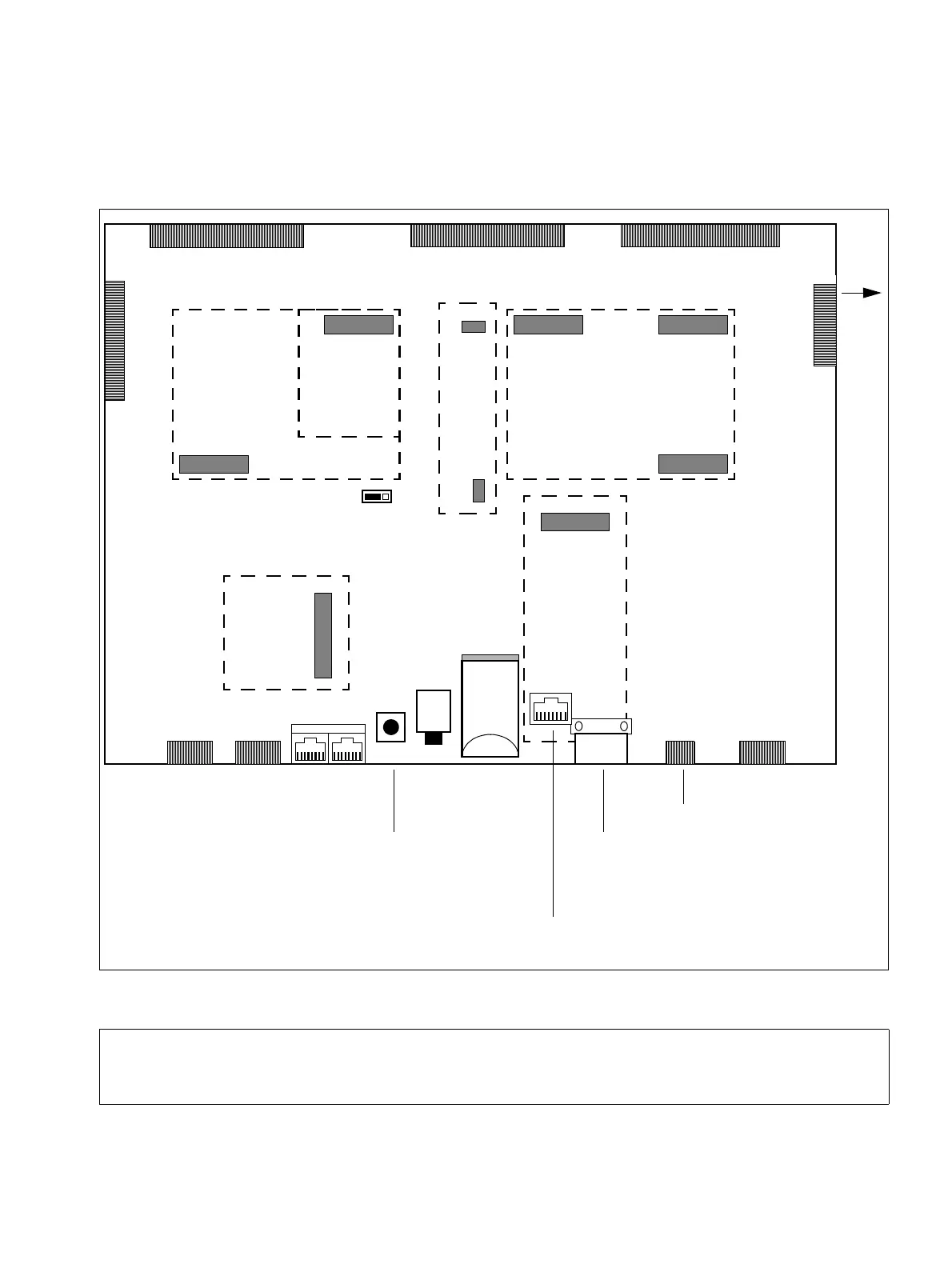

Figure 3-2 CBCC Board (S30810-Q2935-A301)
>
Disconnecting the battery buffer by unplugging the X27 jumper is necessary only for
testing (module test at the factory). Disconnection does not necessarily delete the
customer database (CDB). To delete the CDB, use the reset switch.
2
X27
X5
2
X11 X6
X7
X8 O bus
X14
CMA
X13
CMS
X17
IMODN
X15 X16
X20
X19
X12
LIM
EVM
X32
8 x U
P0/E
1
X1
MMC
X18
22
2
V24/1
1
X2
1
X3
2
X4
4 x T/R
MPPI, MUSIC or EXM
Reset/Reload
keys
RUN LED
LAN connector, 8-pin RJ45 jack
V.24 interface, 9-pin SUB-D plug
2 x S
0
,
RJ45
jacks
X30/31
MPPI or
MUSIC
sub-
board
