Peripheral boards

Packing protection covering

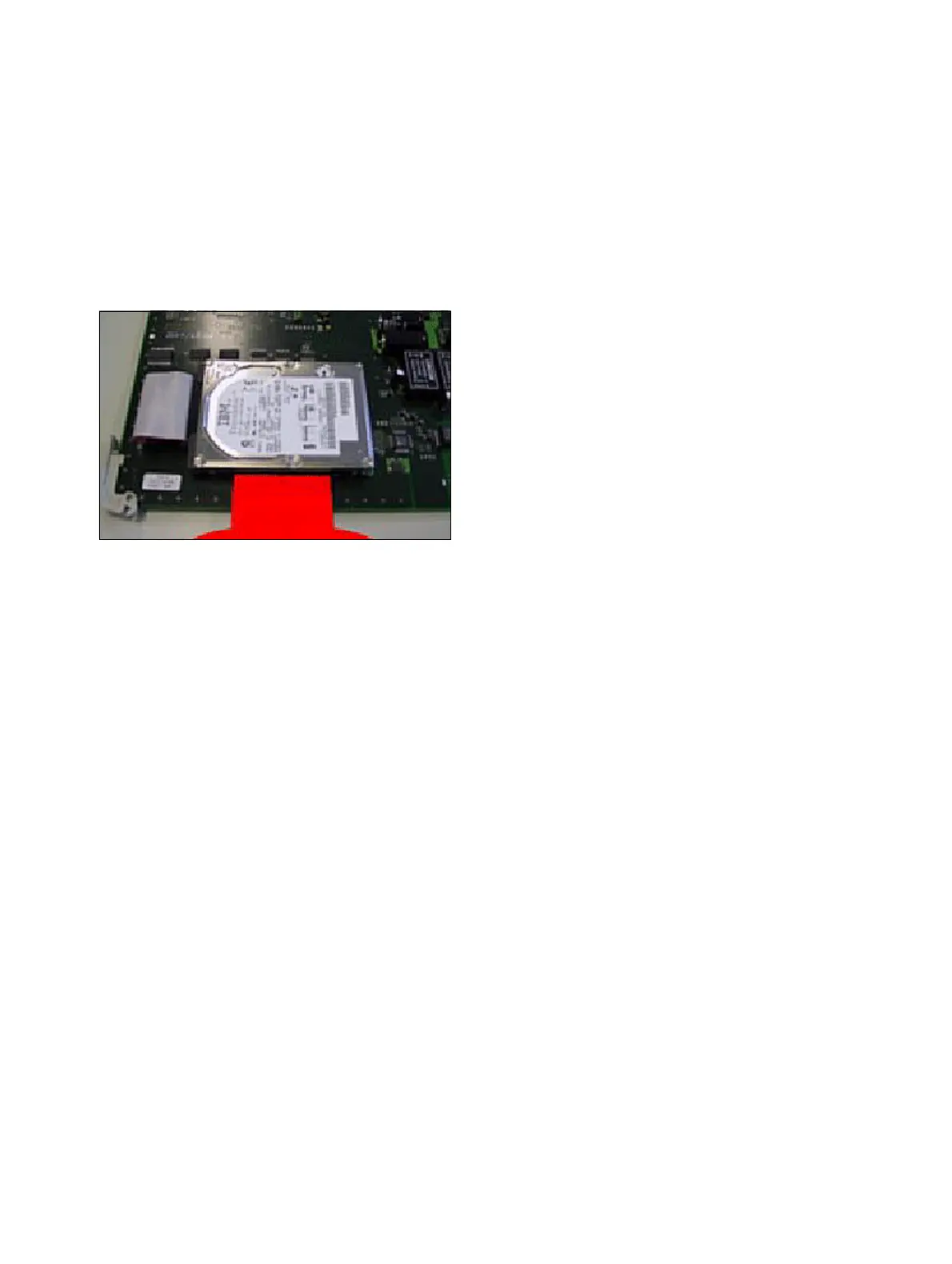

You must remove the red packing protection covering (cardboard block), shown in the following

picture, before starting up the board.

If it is necessary to transport the board again at a later time, for example, for servicing, you must

reattach the packing protection covering.

Figure 3-41 IVMS8, IVMS8R - Packing Protection Covering
