Nur für den internen Gebrauch Boards for HiPath 3000
Peripheral boards
SLAD4, SLAD8 interfaces

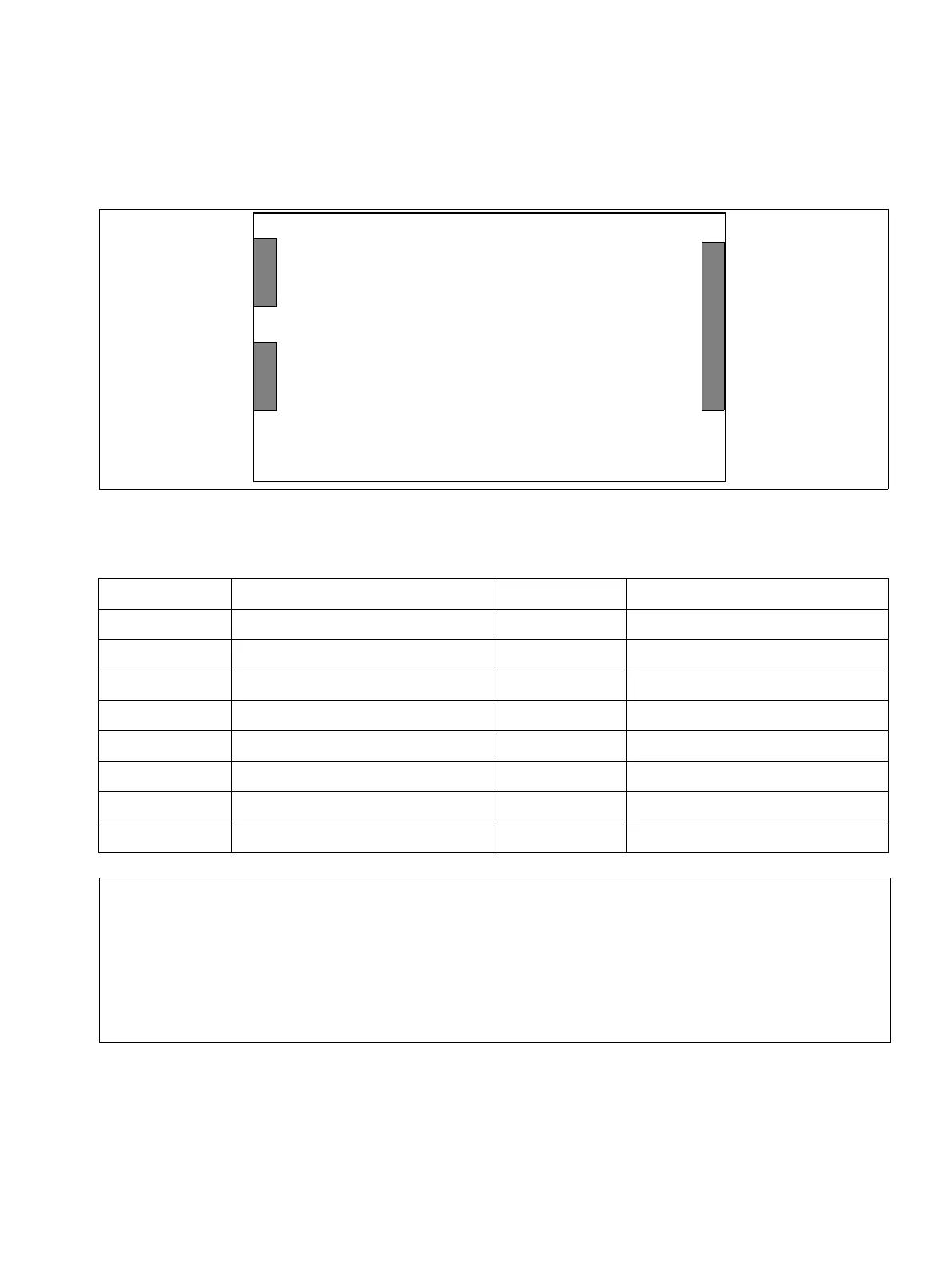

Figure 3-46 SLAD4, SLAD8 - interfaces
Table 3-56 SLAD4, SLAD8 - assigning the ports
X2, Pin T/R ports 1-4 X3, Pin T/R ports 5-8
1a 11a 5
2b 12b 5
3a 23a 6
4b 24b 6
5a 35a 7
6b 36b 7
7a 47a 8
8b 48b 8
>
For U.S. only:
For SLAD4 and SLAD8, external extensions to the a/b ports can be connected
through OPS signaling (hereinafter called OPS ports). The number of OPS ports is
limited. The following maximum values must not be exceeded:
● in HiPath 33x0: max. 4 OPS ports
● in HiPath 35x0: max. 8 OPS ports and max. 4 OPS ports per board
OPS ports are generally prohibited at SLAD16.
X1
50
2
X2
X3
1
8
1
8
T/R port 5-8
(not SLAD4)
T/R ports 1-4
to
CUP/CUC
