Nur für den internen Gebrauch Boards for HiPath 3000
Peripheral boards
Switches and LEDs

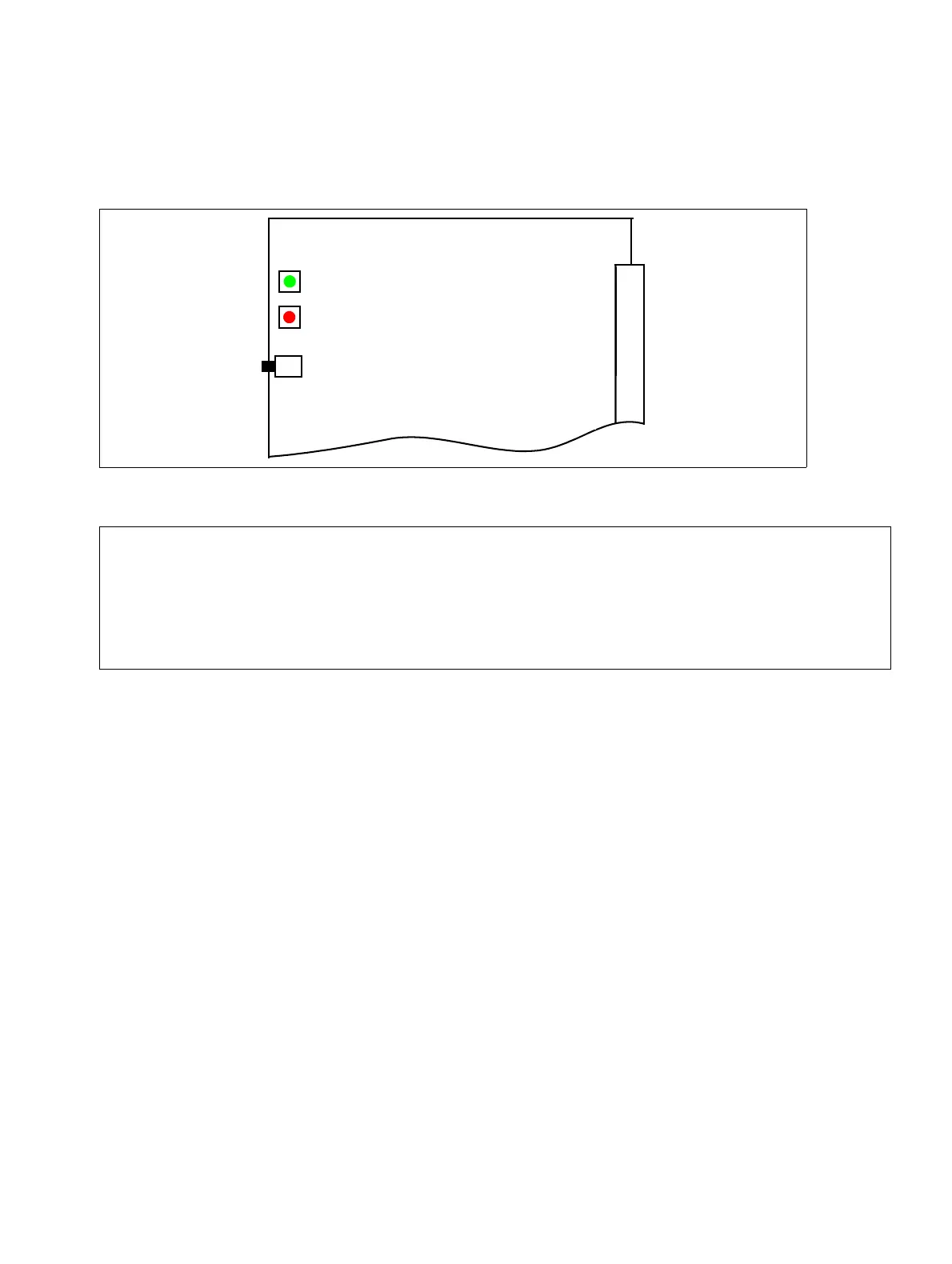

Figure 3-52 SLC16N (S30810-Q2193-X100) (not for U.S.)
>
When you activate the lockout switch (press the switch), all idle mobile telephones
are locked. Active mobile telephones are not locked until their release keys are
pressed.
Before unplugging the SLC16N board, always activate the lockout switch and wait
until the green LED stops flashing. This precaution ensures that none of the mobile
telephones are active.
Lockout switch
(not pressed = free,
factory default)
LED (green)
LED (red)
