Boards for HiPath 3000 Nur für den internen Gebrauch
A31003-H3590-S100-7-7620, 06/2012
3-240 HiPath 3000/5000 V9, Service documentation
boards.fm
Peripheral boards
Extension modules
The STMI2 board has two HGA (HiPath Gateway Accelerator) slots, which can be used to con-
nect the extension modules.
Connections
The STMI2 board features the following connections on the front panel:
● Two RJ45 jacks for LAN interfaces. These provide access to the Ethernet standard (IEEE
802.3) with 10 Mbps or 100 Mbps with automatic configuration. Manual configuration is
also possible.
● 9-pin Sub-D plug for V.24 interface

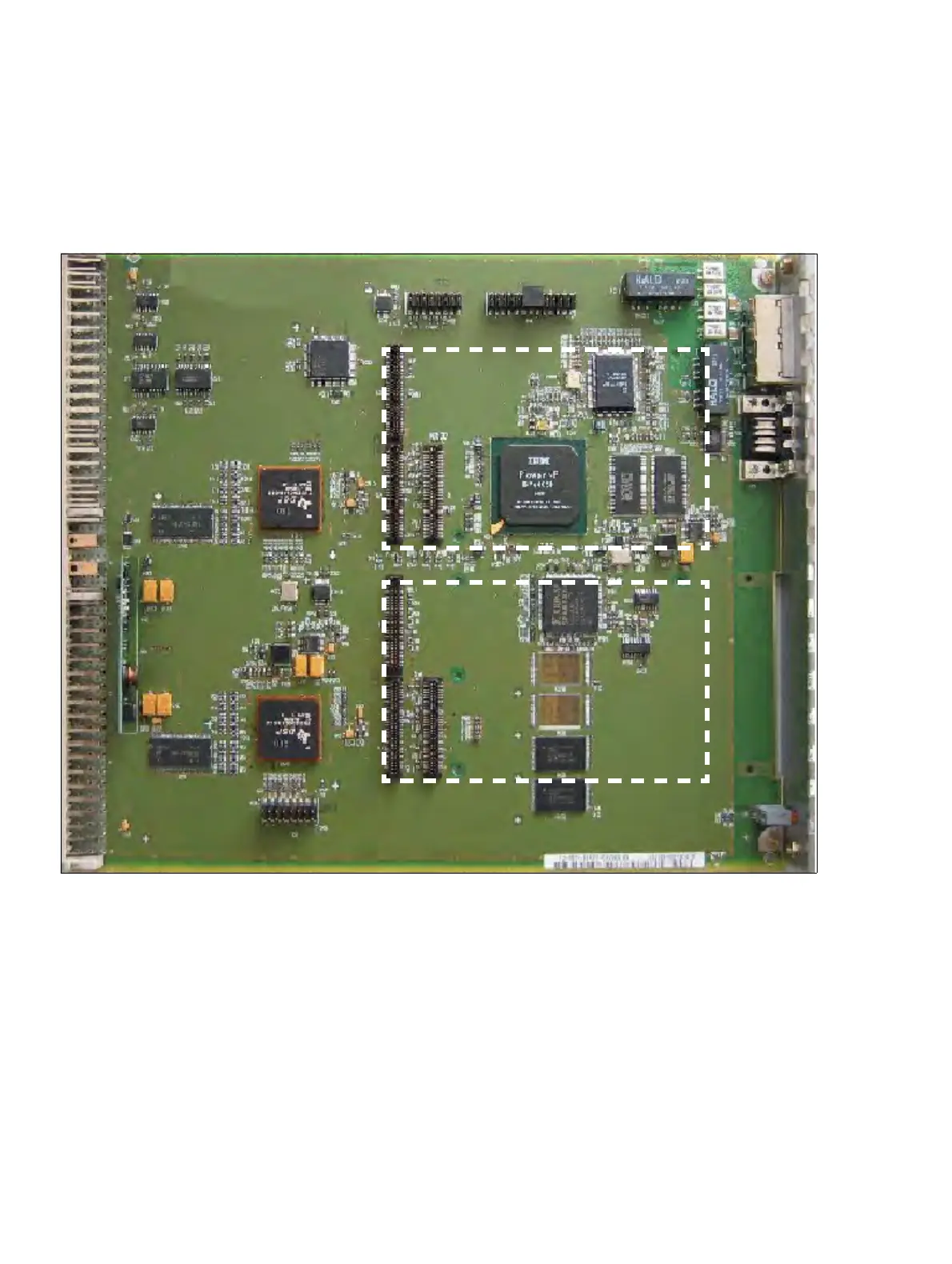

Figure 3-76 STMI2 (S30810-Q2316-X100) - HGA Slots
HGA-
Slot 1
HGA-
Slot 0
