Nur für den internen Gebrauch Boards for HiPath 3000
Peripheral boards
The MSI board TLA8 with eight analog trunks for DP and DTMF signaling in HiPath 3550 and
HiPath 3350.

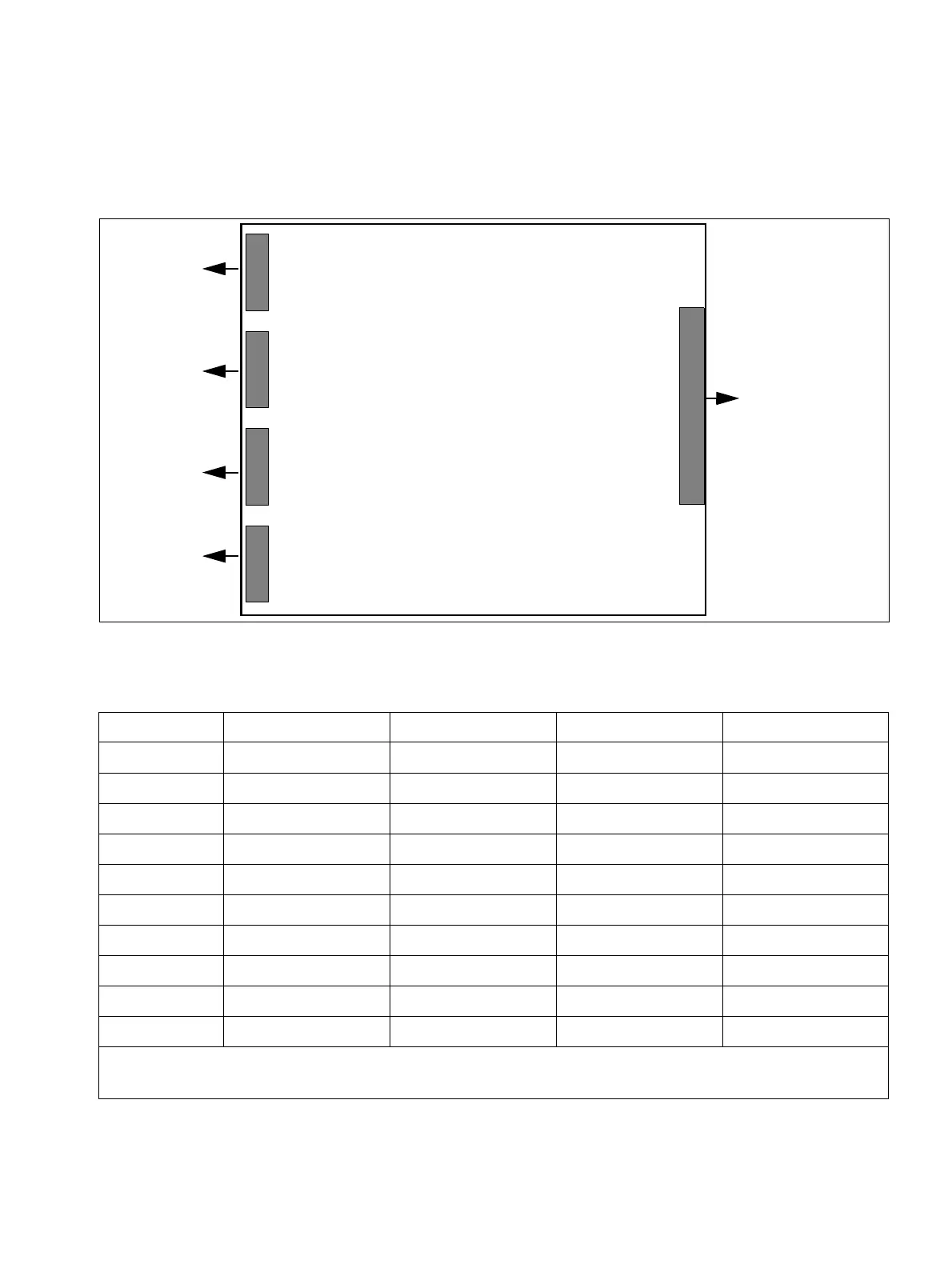

Figure 3-90 TLA8 (not for U.S.) - Interfaces (S30817-Q926-Axxx)
Table 3-121 TLA8 (not for U.S.) - Contact Assignments
Contact Connector X3 Connector X2 Connector X4 Connector X5
1 GND a trunk 1 a trunk 5 GND
2 b trunk 1 b trunk 1 b trunk 5 b trunk 5
3 a trunk 1 a trunk 2 a trunk 6 a trunk 5
4 b trunk 2 b trunk 2 b trunk 6 b trunk 6
5 a trunk 2 a trunk 3 a trunk 7 a trunk 6
6 b trunk 3 b trunk 3 b trunk 7 b trunk 7
7 a trunk 3 a trunk 4 a trunk 8 a trunk 7
8 b trunk 4 b trunk 4 b trunk 8 b trunk 8
9 a trunk 4 – – a trunk 8
10 GMZ 1 – – GMZ 2
GMZ= Call charging module assignment
GND= GND for GEE50 FKR, otherwise free
X1
50
2
TLA8
X3
1
10
X2
1
8
X4
1
8
X5
1
10
To CUP/CUC
T/R ports
MSI 1 - 4
to trunk
To GEE
module
To GEE
module
T/R ports
MSI 5- 8 to
trunk
