Peripheral boards
Seven-segment display H1
The board statuses listed in the following table are displayed on H1.
Assignments for the Two TMCAS Cables for HiPath 3550
You can use one of the following two cables to connect the network terminator NT, multiplexer
MUX, or modem to the TMCAS board:
● symmetrical line (120 ohms)

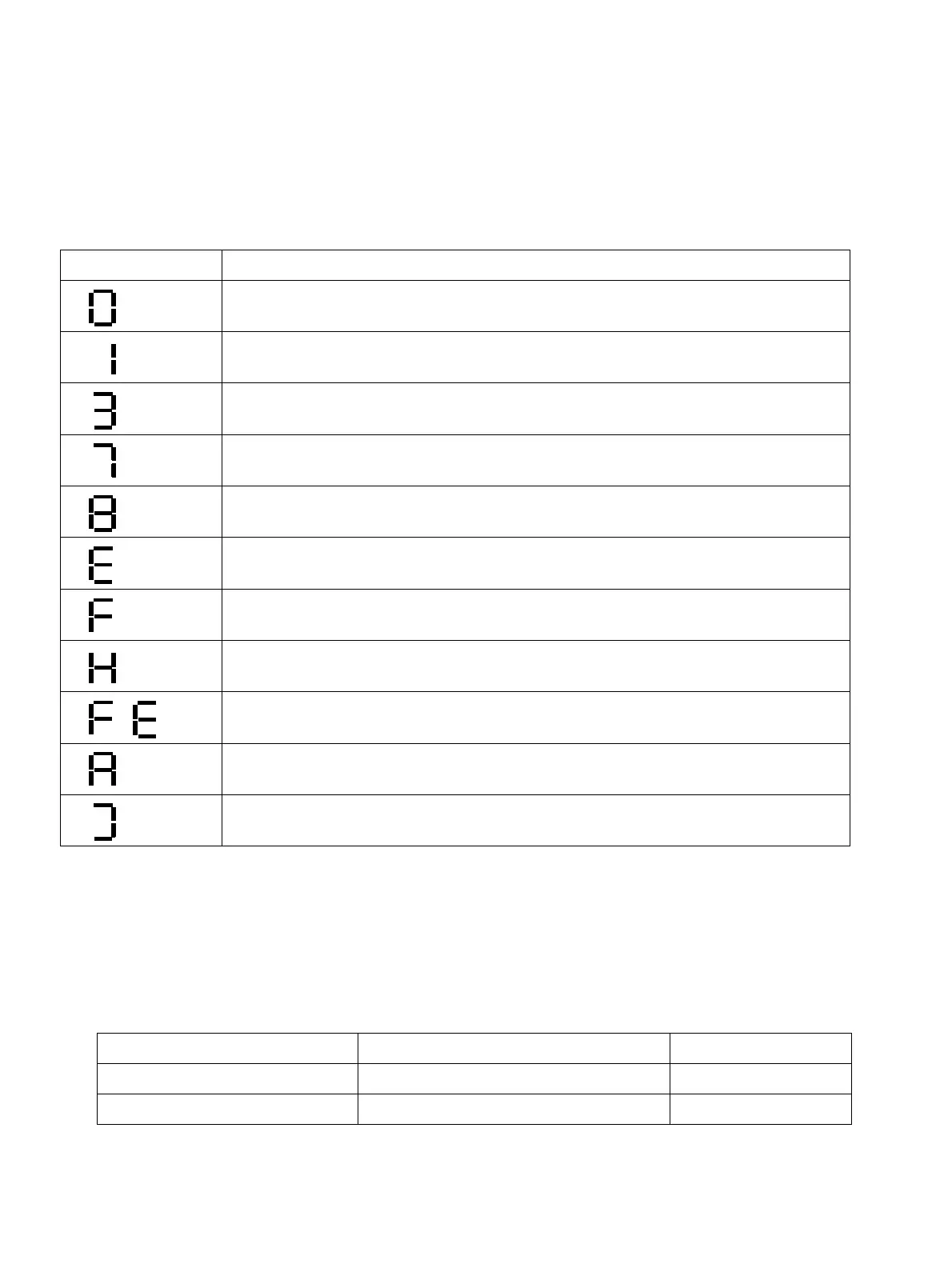

Table 3-143 TMCAS - Seven-Segment Display H1
Display Meaning
Waiting for the TMCAS software download
TMCAS software download start
TMCAS software download
Writing the TMCAS software/extender software into the flash memory
Loading the TMCAS software/extender software from the flash memory
Waiting for ECGM command (10 s)
Calculating the checksum
No TMCAS software in the flash memory, waiting for reload
Flash memory erased (changing display)
TMCAS board active
TMCAS board active, boot process completed
Table 3-144 Assignment of the TMCAS Cable C39195-A9700-B512
SU connector Xx8, pin Function Color code
2 a-wire (T), receive grn
22 b-wire (R), receive blk
