Peripheral boards
Assigning both CAS cables
You can use one of the following two cables to connect network terminators (NT), multiplexers
(MUX), or modems to the TMCAS-2 card (15-pin sub-D jacks X909 and X910):
● symmetrical line (120 ohms), length = 10 m
● Coaxial trunk (75 ohms), length = 10 m
Table 3-150 TMCAS-2 (for selected countries only) – Assignment of the CAS Cable
S30267-Z167-A100
15-pin Sub-D connector
Pin
Function Color code
9 a-wire (T), transmit wht/blu
1 b-wire (R), transmit blu/wht
15 a-wire (T), receive wht/ora
8 b-wire (R), receive ora/wht
Table 3-151 TMCAS-2 (for selected countries only) – Assignment of the CAS Cable
C39195-A7700-B14
Wire Function 15-pin Sub-D con-
nector
Pin
BNC connector
1 Receive, Tip 8 Shield
Receive, Ring 15 Conductor
2 Transmit, Tip 1 Shield
Transmit, Ring 9 Conductor

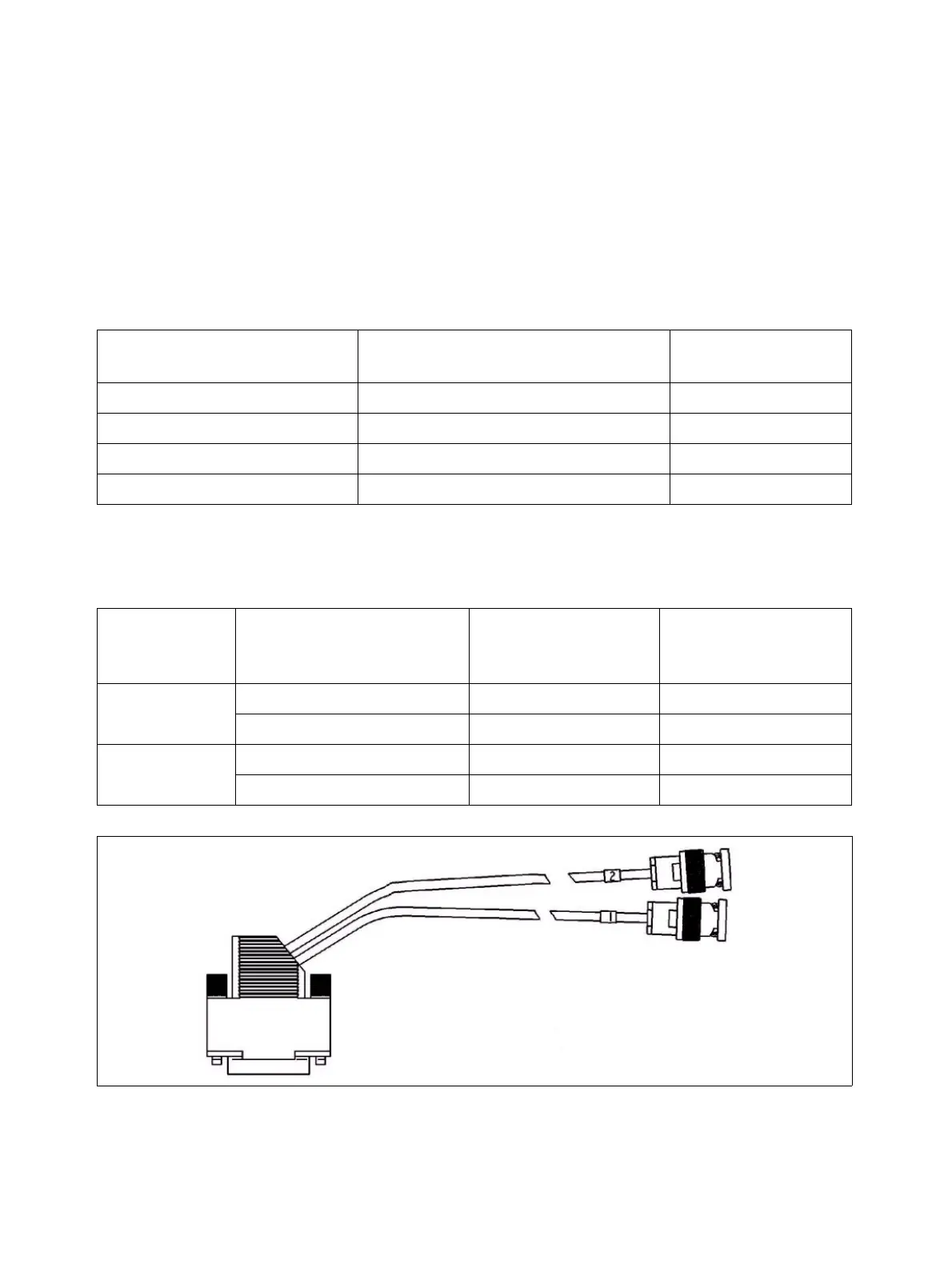

Figure 3-107 TMCAS-2 (for selected countries only) – CAS Cable C39195-A7700-B14
BNC connector
15-pin Sub-D con-
nector
