Cable set for NT connections (Spain and Portugal only)
Connection kit contents and part numbers:
● TS2N/TS2R connection kit for Spain and Portugal: F50035-E2-X63
containing the following:
– Interface converter: S30122-X7357-X
– Cable 1 = Patch cable MW8 (RJ48C), 10 m: C39195-Z7208-A100
– Cable 2 (2 units) = coaxial adapter cable, 30 cm: S30267-Z354-A3
● TS2N/TS2R upgrade kit for Portugal: L30252-U600-A190
containing the following:
– Cable 3 (2 units) = Mini-coaxial cable, 10 cm: S30267-Z353-A1

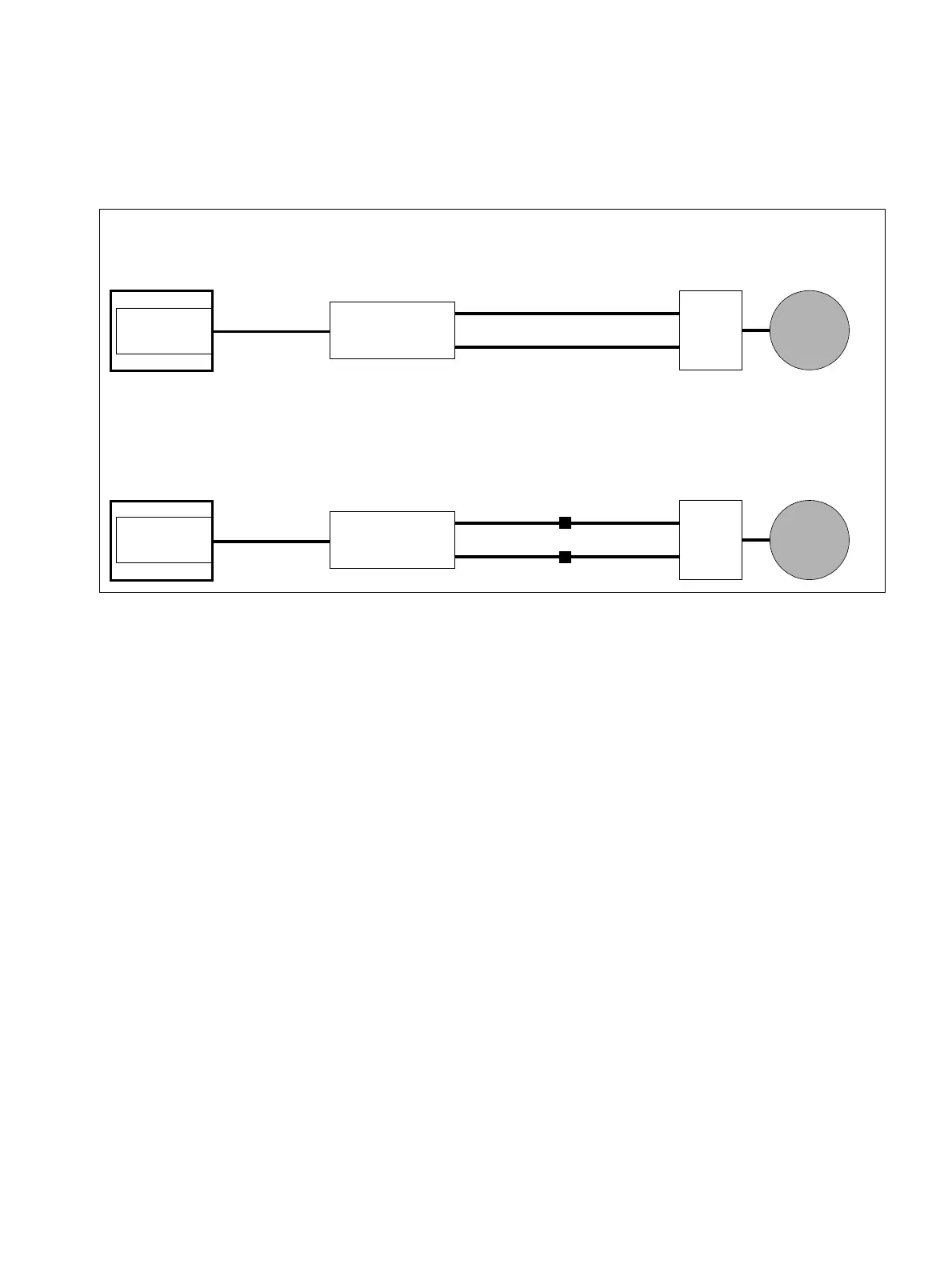

Figure 3-121 S
2M
- NT Connections for Spain and Portugal
Cable 1
HiPath 3550, HiPath 3500
NT
Public network
Interface con-
verter
Cable 2
Portugal
Cable 3
Cable 1
HiPath 3550, HiPath 3500
NT
Public network
Interface
converter
Cable 2
Spain (and in certain cases Portugal)
TS2N/TS2R
TS2N/TS2R
