inst_h3.fm

A31003-H3590-S100-7-7620, 06/2012

HiPath 3000/5000 V9, Service documentation

4-13

Nur für den internen Gebrauch Installing HiPath 3000

Installing HiPath 3800

Installing a Two-Cabinet System Side by Side

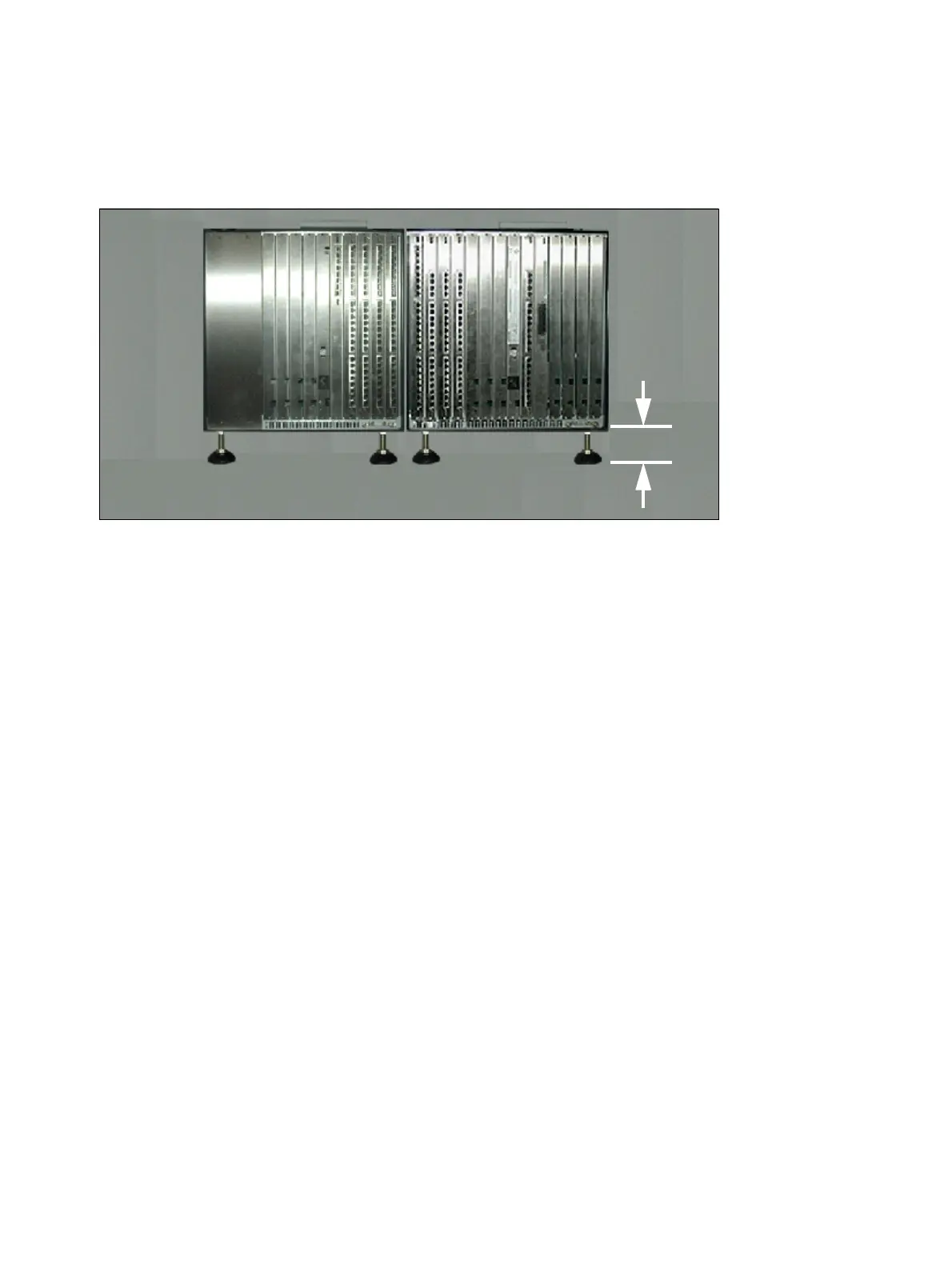

Figure 4-4 HiPath 3800 - Installing a Two-Cabinet System Side by Side (Rear View)

≥ 50 mm
