Installing HiPath 3000 Nur für den internen Gebrauch

A31003-H3590-S100-7-7620, 06/2012

4-16 HiPath 3000/5000 V9, Service documentation

inst_h3.fm

Installing HiPath 3800

Grounding option 1a

Grounding option 1b

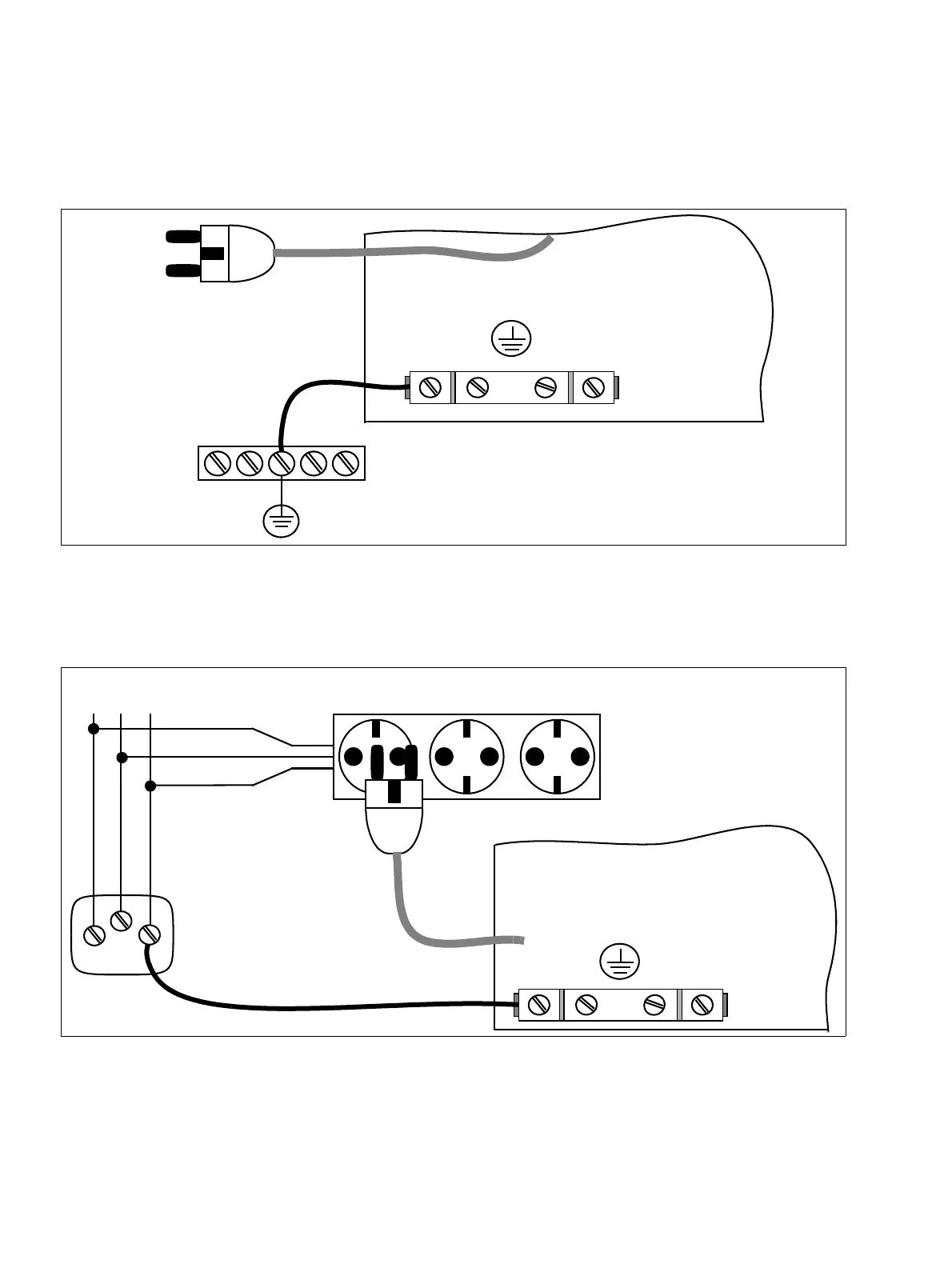

Figure 4-6 HiPath 3800 - Grounding Option 1a (not for U.S.)

Figure 4-7 HiPath 3800 - Grounding Option 1b (not for U.S.)

green/yellow

Example Potential equalization bus

HiPath 3800

Main grounding terminal

HiPath 3800

L1 N PE

230 V ~

green/yellow

Example Connector sok-

ket

Grounding outlets

Main grounding ter-

minal
