Installing HiPath 3800
● REALS
Insert the REALS board into the slot marked 3 in the lower part of the shelf in the basic
cabinet and apply pressure until you hear a click.
The slots for the power supply units and for the REALS board must be covered with an
outer panel before the system is started up. The outer panel is fixed onto the shelf with
screws (see Figure 4-19).

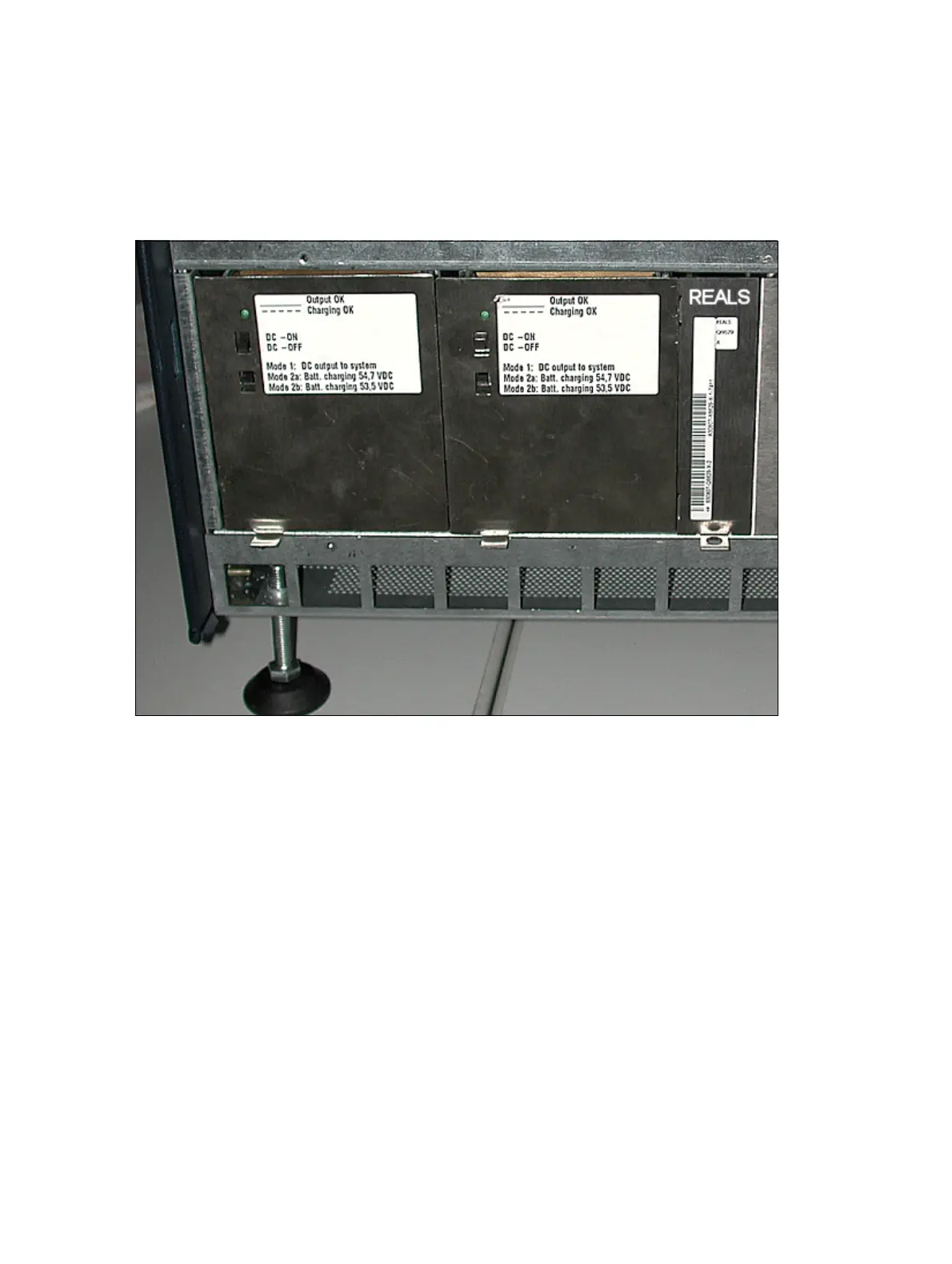

Figure 4-21 HiPath 3800 - Installing the REALS Board
